Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

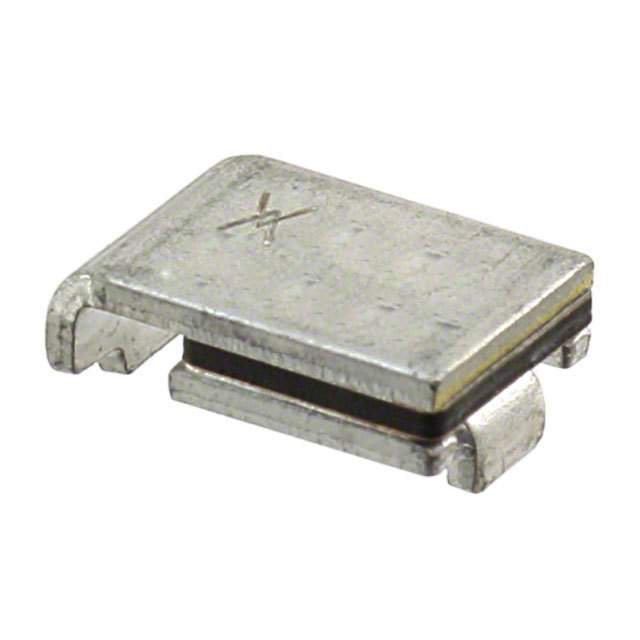

ASMD030F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 230mA
Current - Trip (It) : 590mA
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 980 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 230mA
Current - Trip (It) : 590mA
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 980 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
2118 in stock

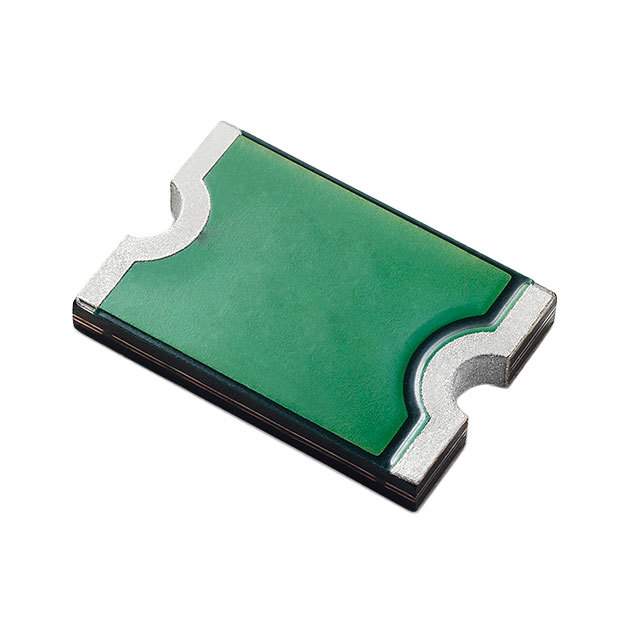

ASMD050F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 370mA
Current - Trip (It) : 940mA
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 290 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 370mA
Current - Trip (It) : 940mA
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 290 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
7767 in stock
ASMD075F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 600mA
Current - Trip (It) : 1.48A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 290 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 600mA
Current - Trip (It) : 1.48A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 290 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -
0
2571 in stock
ASMD100F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 2.16A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 98 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.201" W (7.30mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 2.16A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 98 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.287" L x 0.201" W (7.30mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
4150 in stock
ASMD125F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.04A
Current - Trip (It) : 2.46A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 57 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.04A
Current - Trip (It) : 2.46A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 57 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock
ASMD150F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.27A
Current - Trip (It) : 2.95A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 49 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.27A
Current - Trip (It) : 2.95A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 49 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock
ASMD185F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Type : -
Voltage - Max : -
Current - Max : -
Current - Hold (Ih) (Max) : -
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
0
1448 in stock
ASMD200F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.73A
Current - Trip (It) : 3.93A
Time to Trip : 30s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.73A
Current - Trip (It) : 3.93A
Time to Trip : 30s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
100 in stock
ASMD250F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 10A
Current - Hold (Ih) (Max) : 1.97A
Current - Trip (It) : 5A
Time to Trip : 30s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 10A
Current - Hold (Ih) (Max) : 1.97A
Current - Trip (It) : 5A
Time to Trip : 30s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.343" L x 0.250" W (8.70mm x 6.36mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -
0
1547 in stock
ASMDC030F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 3.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
7775 in stock
ASMDC050F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
4015 in stock
ASMDC075F-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 610 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 610 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.035" (0.90mm)
Lead Spacing : -
0
8007 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
