Part Number

Manufacturer

Description

Unit Price

In Stock

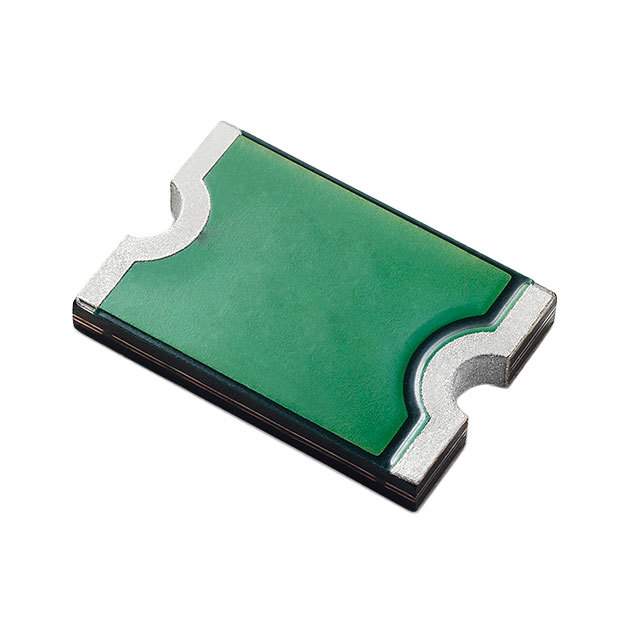

ASMDC125F/33-2

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -

16466 in stock

ASMDC185F/33-2

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 2.5s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 150 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -

4900 in stock

ASMDC300F/24-2

Littelfuse/Hamlin

Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, ASMD
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 15 mOhms
Resistance - Post Trip (R1) (Max) : 72 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.295" L x 0.201" W (7.50mm x 5.10mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.71mm)
Lead Spacing : -

5868 in stock

B59101P1120A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 24V
Current - Max : 170mA
Current - Hold (Ih) (Max) : 355mA
Current - Trip (It) : -
Time to Trip : -
Resistance - Initial (Ri) (Min) : 7.8 Ohms
Resistance - Post Trip (R1) (Max) : 13 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.398" L x 0.138" W (10.10mm x 3.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

978 in stock

B59115P1080A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 700mA
Current - Hold (Ih) (Max) : 40mA
Current - Trip (It) : 85mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 55 Ohms
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 3225 (8063 Metric)
Size / Dimension : 0.315" L x 0.248" W (8.00mm x 6.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

78926 in stock

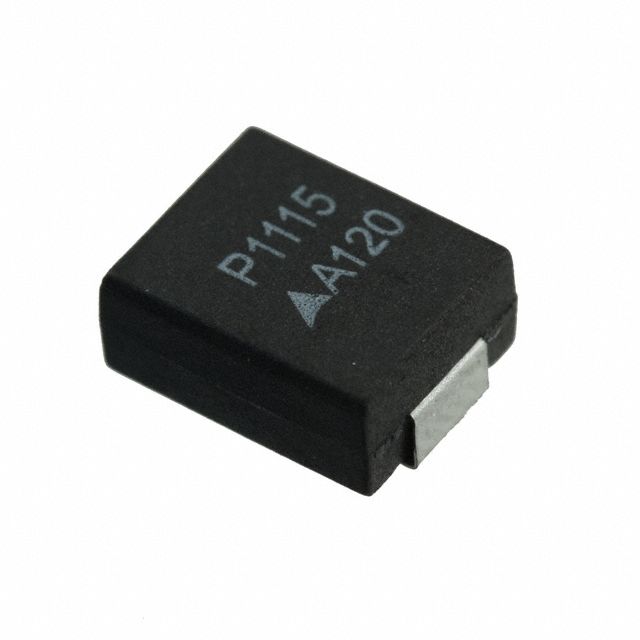

B59115P1120A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 700mA
Current - Hold (Ih) (Max) : 70mA
Current - Trip (It) : 145mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 55 Ohms
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 3225 (8063 Metric)
Size / Dimension : 0.315" L x 0.248" W (8.00mm x 6.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

15961 in stock

B59201P1080A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 30V
Current - Max : 1A
Current - Hold (Ih) (Max) : 165mA
Current - Trip (It) : 340mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 4.6 Ohms
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 3225 (8063 Metric)
Size / Dimension : 0.315" L x 0.248" W (8.00mm x 6.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

5602 in stock

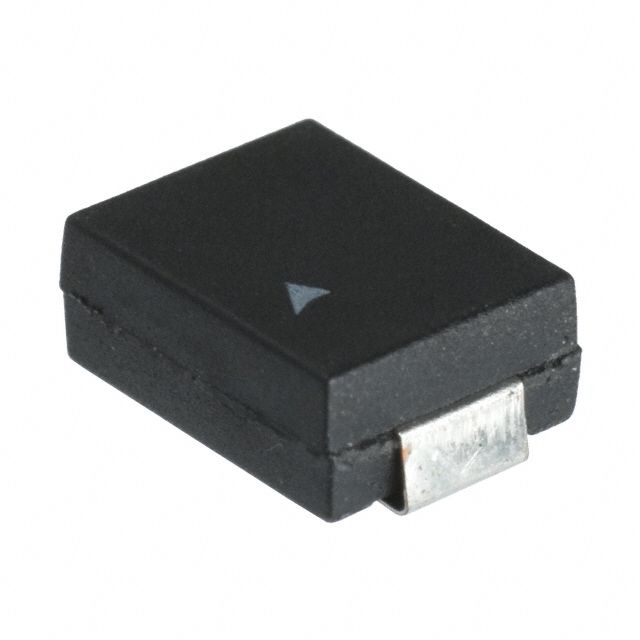

B59215P1080A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 1A
Current - Hold (Ih) (Max) : 65mA
Current - Trip (It) : 135mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 25 Ohms
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 3225 (8063 Metric)
Size / Dimension : 0.315" L x 0.248" W (8.00mm x 6.30mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

18930 in stock

B59301P1120A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 24V
Current - Max : 1.6A
Current - Hold (Ih) (Max) : 310mA
Current - Trip (It) : 640mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : 1.85 Ohms
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 4032 (1080 Metric)
Size / Dimension : 0.394" L x 0.315" W (10.00mm x 8.00mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

940 in stock

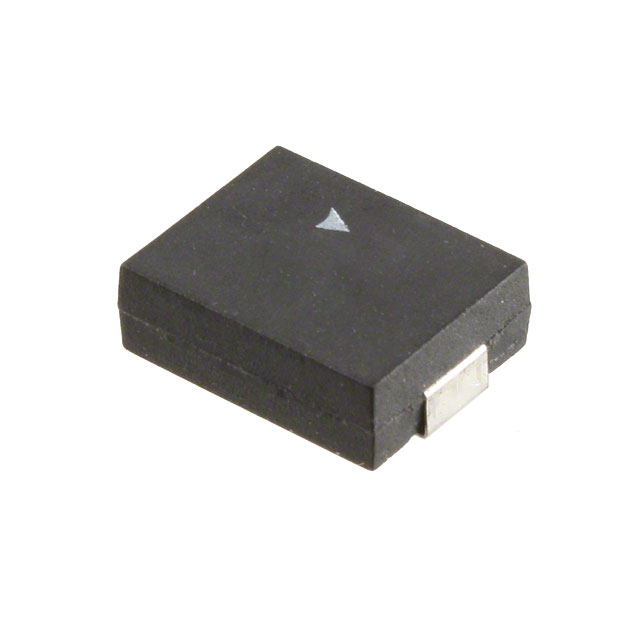

B59315P1120A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 1.6A
Current - Hold (Ih) (Max) : 150mA
Current - Trip (It) : 310mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 16 Ohms
Operating Temperature : -40°C ~ 60°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 4032 (1080 Metric)
Size / Dimension : 0.394" L x 0.315" W (10.00mm x 8.00mm)
Height - Seated (Max) : -
Thickness (Max) : 0.150" (3.80mm)
Lead Spacing : -

5050 in stock

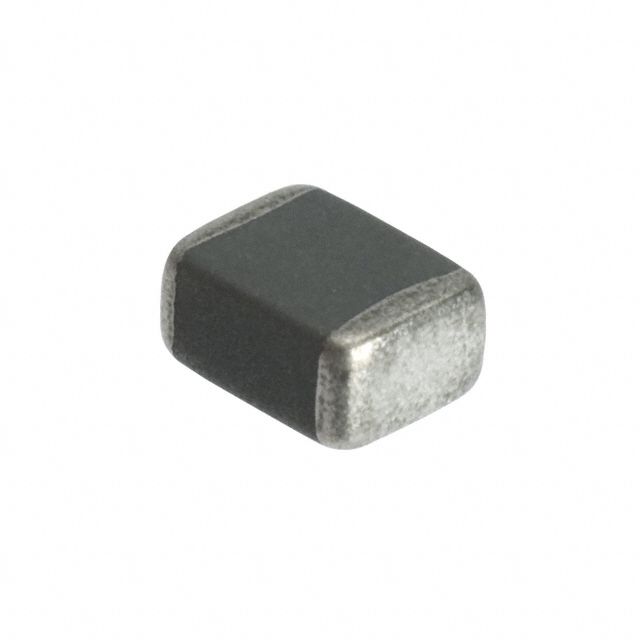

B59606A0110A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 30V
Current - Max : 500mA
Current - Hold (Ih) (Max) : 90mA
Current - Trip (It) : 180mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 27 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -

15512 in stock

B59607A0120A062

EPCOS

Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 30V
Current - Max : 400mA
Current - Hold (Ih) (Max) : 70mA
Current - Trip (It) : 130mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 55 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -

8252 in stock
