Part Number
Manufacturer
Description
Unit Price
In Stock
1206L350SLTHYR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 18 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 3 mOhms
Resistance - Post Trip (R1) (Max) : 18 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
1813 in stock
1206L380SLTHYR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.82A
Current - Trip (It) : 8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 2.82A
Current - Trip (It) : 8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 2 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
9902 in stock

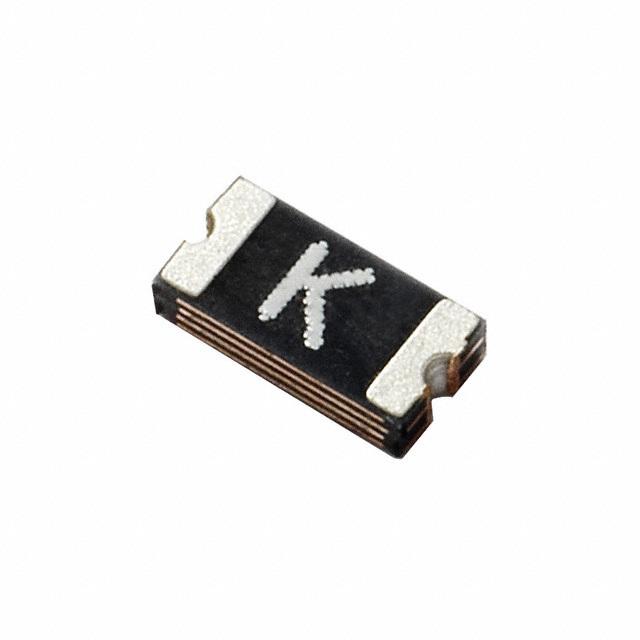

1206L400SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.055" (1.40mm)
Lead Spacing : -
0
18525 in stock
1206L450SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.128" L x 0.065" W (3.25mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
8270 in stock

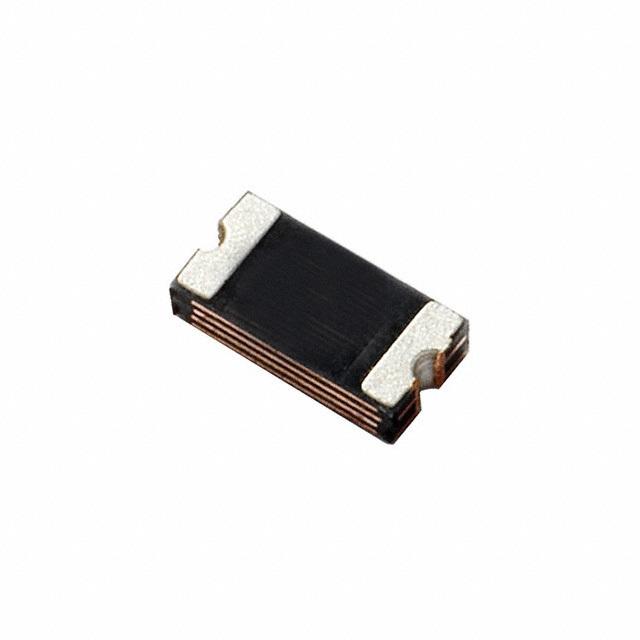

1206L500SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
740 in stock
1210L005WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
545 in stock
1210L010WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.6 Ohms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
30834 in stock
1210L020WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
17240 in stock
1210L035YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 320 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
3694 in stock
1210L050YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 50ms
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 50ms
Resistance - Initial (Ri) (Min) : 250 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
2782 in stock
1210L075/24PR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
0
30667 in stock
1210L075YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1210L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 130 mOhms
Resistance - Post Trip (R1) (Max) : 400 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
5051 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
