1206L016WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 4.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.057" (1.45mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 1.2 Ohms
Resistance - Post Trip (R1) (Max) : 4.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.057" (1.45mm)
Lead Spacing : -
0
24124 in stock
1206L020YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 420mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 650 mOhms
Resistance - Post Trip (R1) (Max) : 2.6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
77508 in stock
1206L025YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 80ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 250mA
Current - Trip (It) : 500mA
Time to Trip : 80ms
Resistance - Initial (Ri) (Min) : 550 mOhms
Resistance - Post Trip (R1) (Max) : 2.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
43616 in stock
1206L035/16YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
6475 in stock

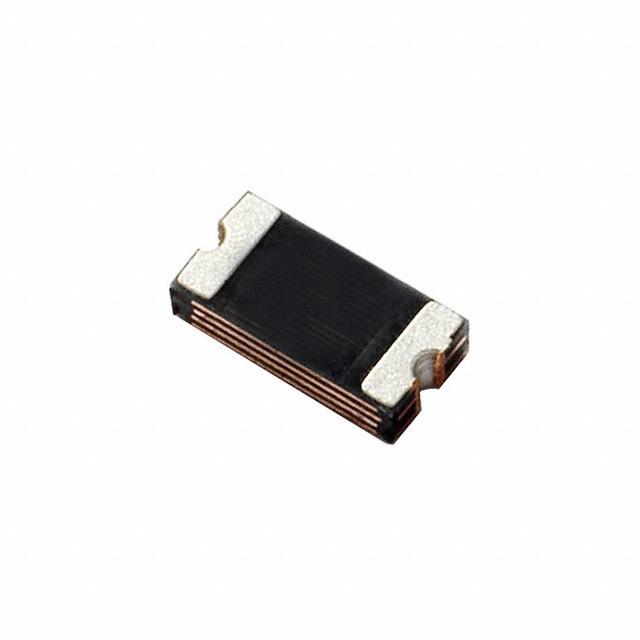

1206L035YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 1.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
8058 in stock
1206L050/15YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 750 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 750 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
36305 in stock
1206L050YR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 700 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
42300 in stock
1206L075/13.2WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 350 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 350 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
36032 in stock
1206L075/16WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
100 in stock
1206L075SLYR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
4484 in stock
1206L075THYR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
29171 in stock
1206L075WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 290 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
