- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

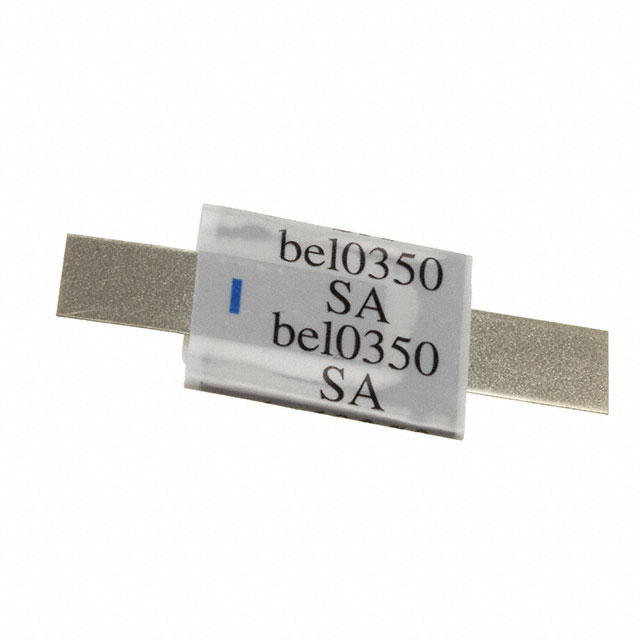

0ZSA0350FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 6.3A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.185" L x 0.522" W (30.10mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : -
Series : 0ZSA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.5A
Current - Trip (It) : 6.3A
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 17 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.185" L x 0.522" W (30.10mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
3000 in stock

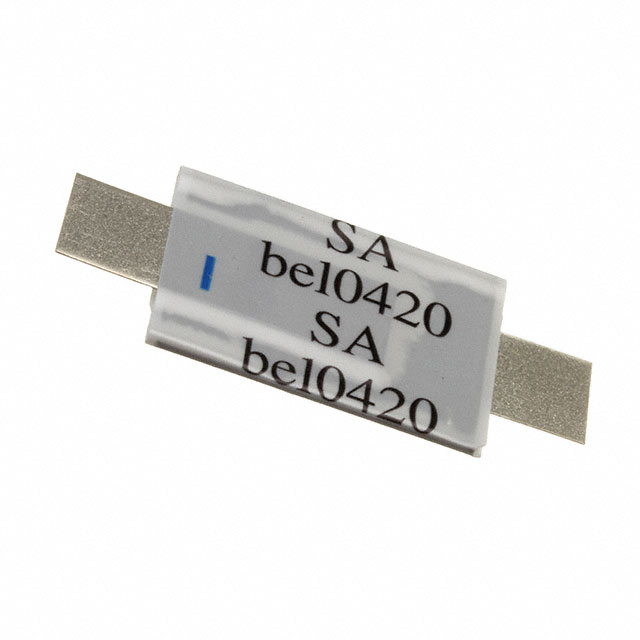

0ZSA0420FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.2A
Current - Trip (It) : 7.6A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.240" L x 0.522" W (31.50mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : -
Series : 0ZSA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.2A
Current - Trip (It) : 7.6A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 12 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.240" L x 0.522" W (31.50mm x 13.25mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
3000 in stock

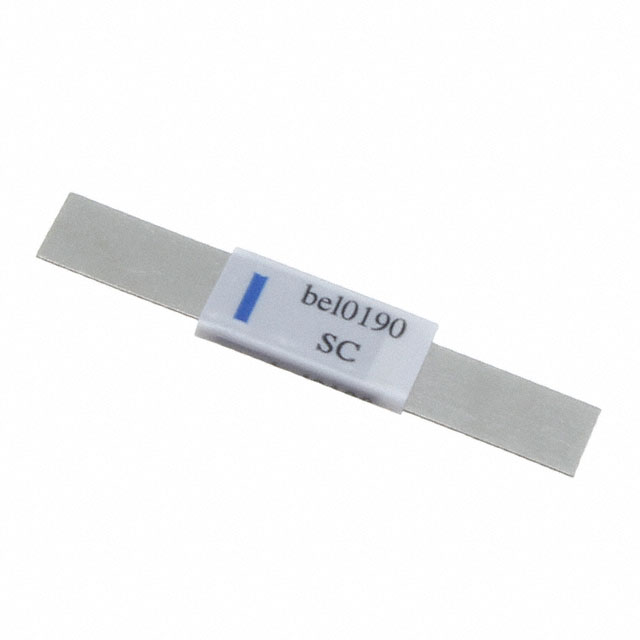

0ZSC0190FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.9A
Current - Trip (It) : 3.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 39 mOhms
Resistance - Post Trip (R1) (Max) : 102 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.205" W (21.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.9A
Current - Trip (It) : 3.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 39 mOhms
Resistance - Post Trip (R1) (Max) : 102 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.827" L x 0.205" W (21.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
3000 in stock

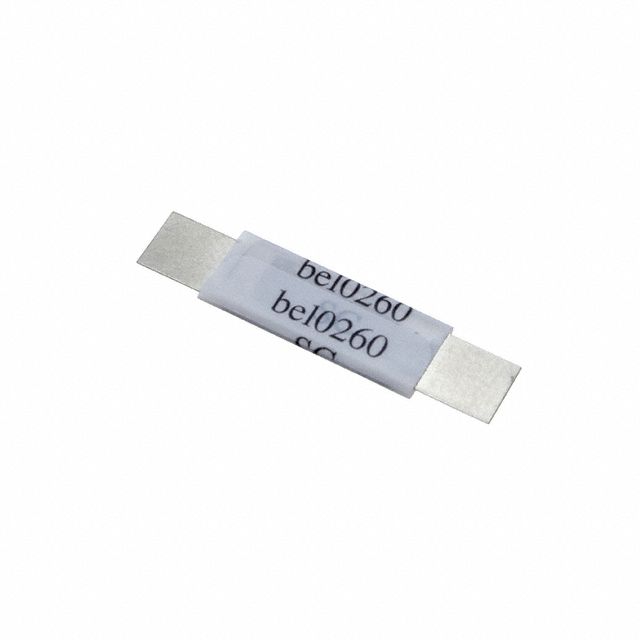

0ZSC0260FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
2999 in stock

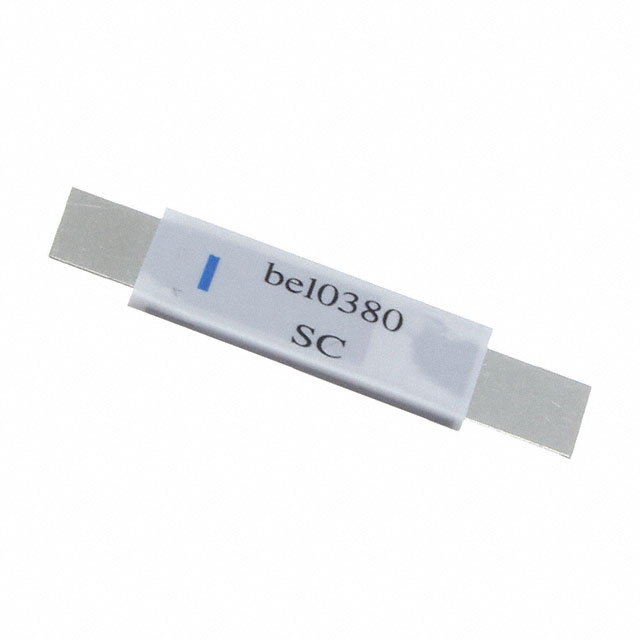

0ZSC0380FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.8A
Current - Trip (It) : 8.3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.283" W (25.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.8A
Current - Trip (It) : 8.3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.283" W (25.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
3000 in stock

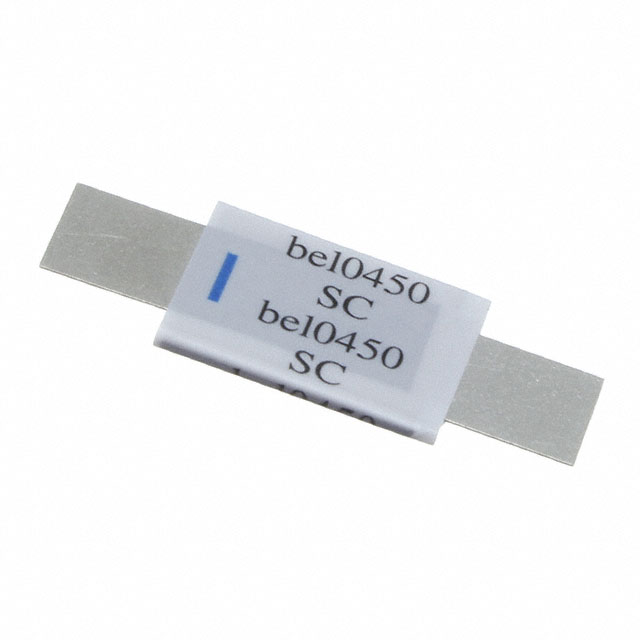

0ZSC0450FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 8.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 11 mOhms
Resistance - Post Trip (R1) (Max) : 28 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.402" W (25.00mm x 10.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 8.9A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 11 mOhms
Resistance - Post Trip (R1) (Max) : 28 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.402" W (25.00mm x 10.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
2999 in stock

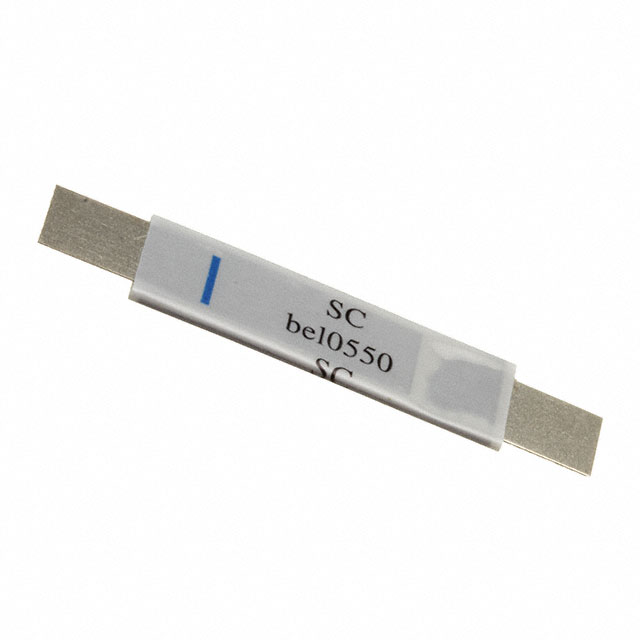

0ZSC0550FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 9 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.417" L x 0.283" W (36.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 9 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.417" L x 0.283" W (36.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
3000 in stock

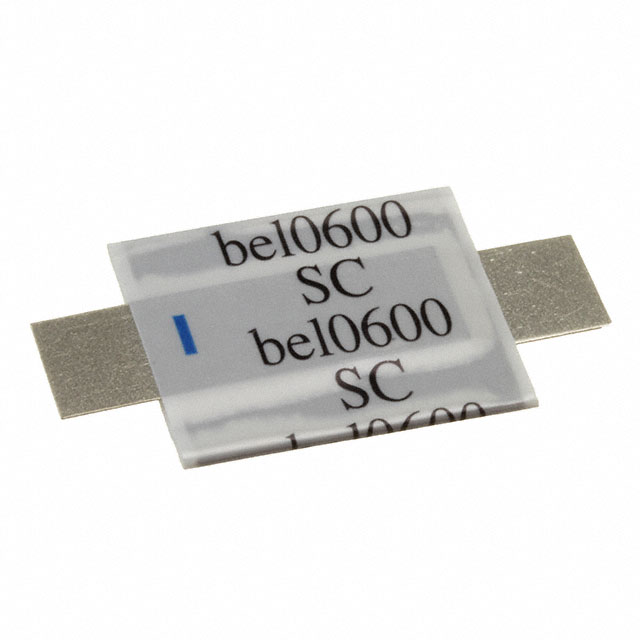

0ZSC0600FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 11.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7 mOhms
Resistance - Post Trip (R1) (Max) : 19 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.559" W (25.00mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 11.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7 mOhms
Resistance - Post Trip (R1) (Max) : 19 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.559" W (25.00mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
2999 in stock

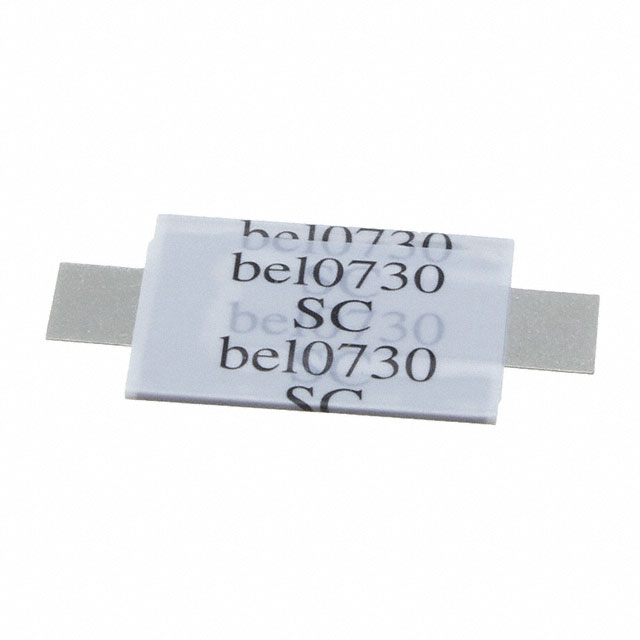

0ZSC0730FF1E
Bel
Manufacturer : Bel Fuse Inc.
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.3A
Current - Trip (It) : 14.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.106" L x 0.559" W (28.10mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : -
Series : 0ZSC
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.3A
Current - Trip (It) : 14.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.106" L x 0.559" W (28.10mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
3000 in stock

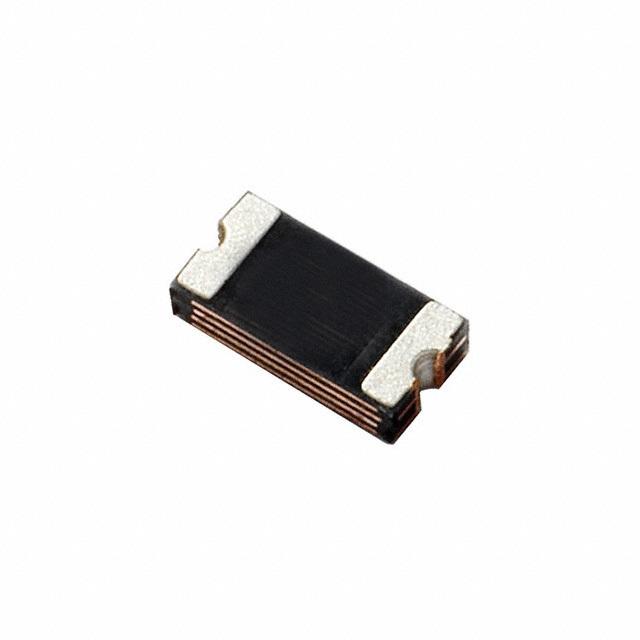

1206L005/60WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 3.6 Ohms
Resistance - Post Trip (R1) (Max) : 20 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
3067 in stock
1206L010/60WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 10 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 250mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 10 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.049" (1.25mm)
Lead Spacing : -
0
9064 in stock
1206L012WR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 125mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.057" (1.45mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 1206L
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 100A
Current - Hold (Ih) (Max) : 125mA
Current - Trip (It) : 290mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric), Concave
Size / Dimension : 0.126" L x 0.065" W (3.20mm x 1.65mm)
Height - Seated (Max) : -
Thickness (Max) : 0.057" (1.45mm)
Lead Spacing : -
0
111820 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
