- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

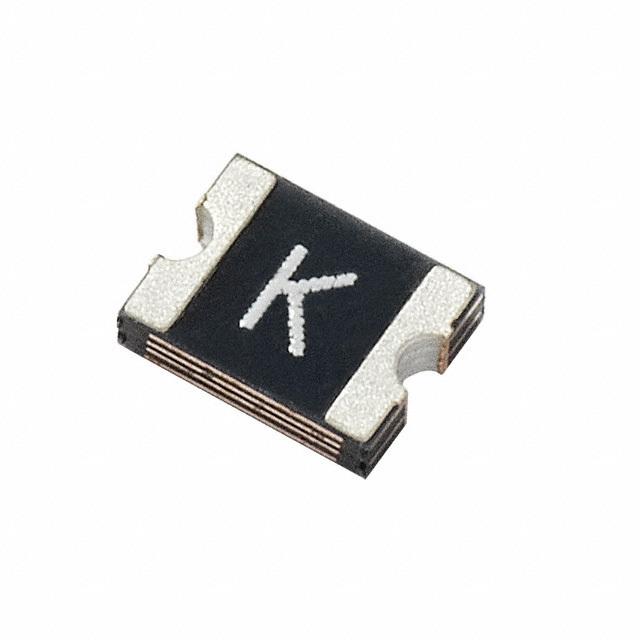

1210L400SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
1964 in stock
1210L450SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 4.5A
Current - Trip (It) : 9A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 1 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.047" (1.20mm)
Lead Spacing : -
0
18159 in stock
1210L500SLWR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.101" W (3.22mm x 2.56mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, LoRho
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 50A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 100 mOhms
Resistance - Post Trip (R1) (Max) : 12 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.101" W (3.22mm x 2.56mm)
Height - Seated (Max) : -
Thickness (Max) : 0.032" (0.80mm)
Lead Spacing : -
0
2245 in stock

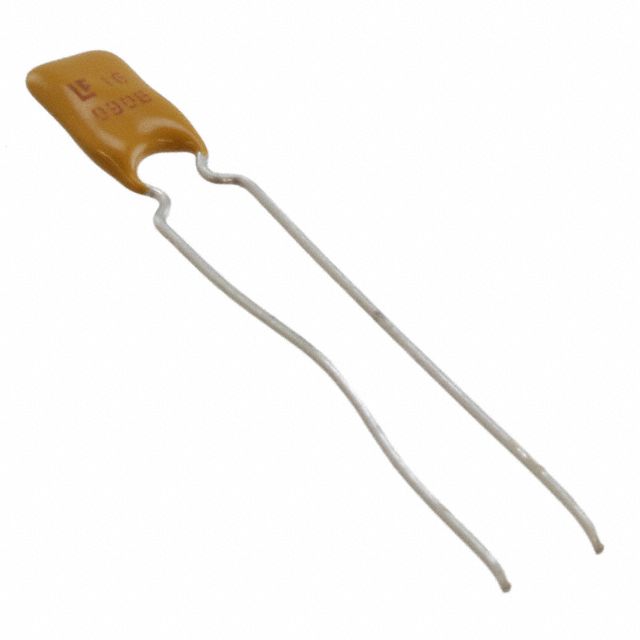

16R090BPR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 1.2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 900mA
Current - Trip (It) : 1.8A
Time to Trip : 1.2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 180 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) : 0.480" (12.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
3534 in stock
16R1000GF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 17A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10.2 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.992" (25.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 17A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10.2 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.992" (25.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
793 in stock

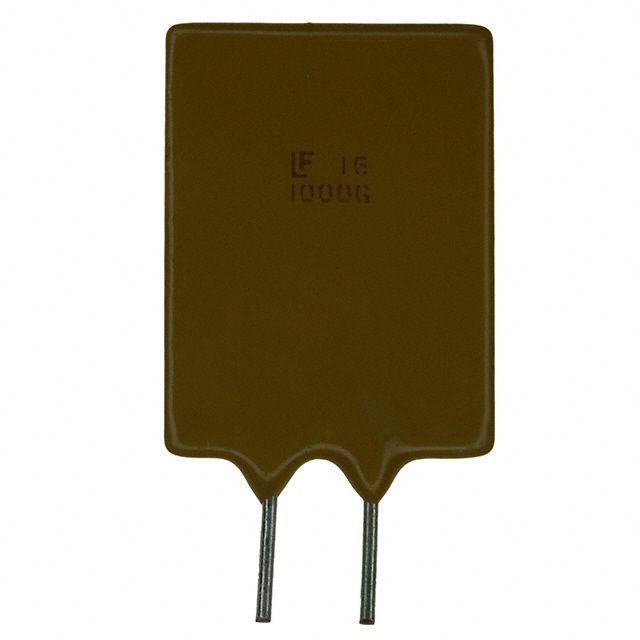

16R1000GMR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 17A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10.2 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.992" (25.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 10A
Current - Trip (It) : 17A
Time to Trip : 6s
Resistance - Initial (Ri) (Min) : 4 mOhms
Resistance - Post Trip (R1) (Max) : 10.2 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.650" L x 0.118" W (16.50mm x 3.00mm)
Height - Seated (Max) : 0.992" (25.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1964 in stock

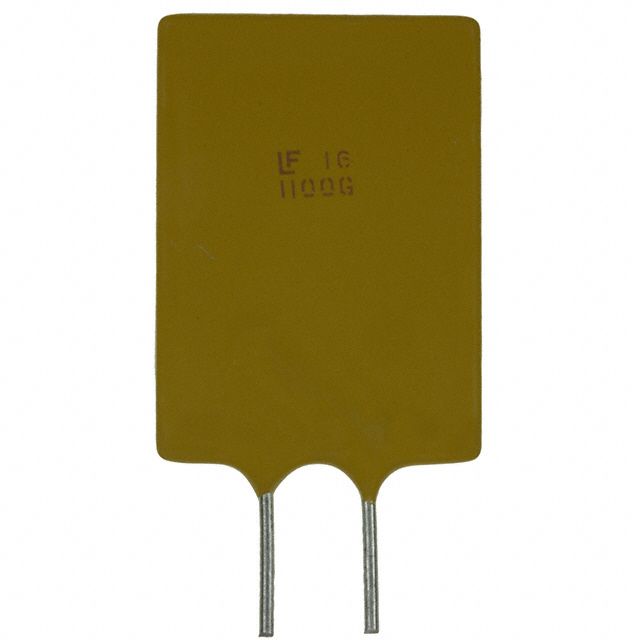

16R1100GF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 18.7A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 3.7 mOhms
Resistance - Post Trip (R1) (Max) : 8.9 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) : 1.024" (26.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 11A
Current - Trip (It) : 18.7A
Time to Trip : 7s
Resistance - Initial (Ri) (Min) : 3.7 mOhms
Resistance - Post Trip (R1) (Max) : 8.9 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.118" W (17.50mm x 3.00mm)
Height - Seated (Max) : 1.024" (26.00mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
589 in stock

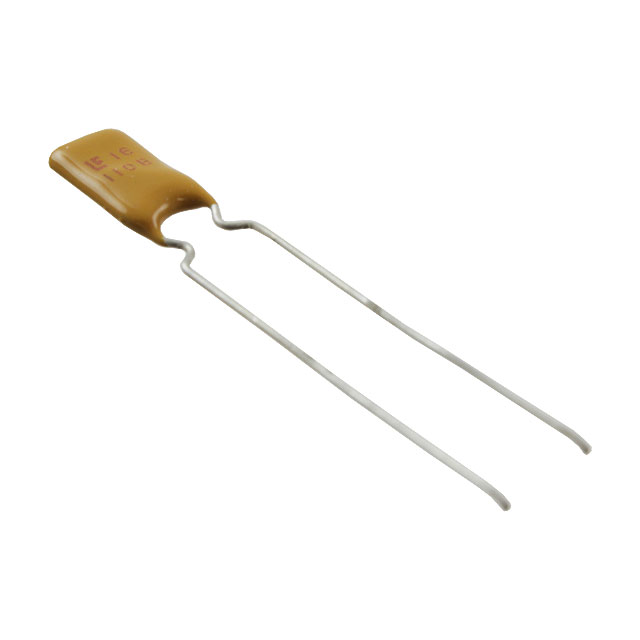

16R110BPR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 2.3s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) : 0.559" (14.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 2.3s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.291" L x 0.118" W (7.40mm x 3.00mm)
Height - Seated (Max) : 0.559" (14.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2640 in stock

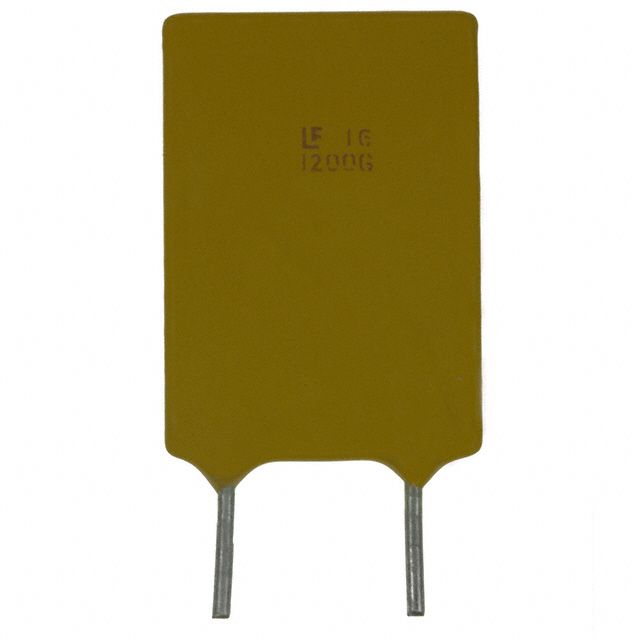

16R1200GH
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 12A
Current - Trip (It) : 20.4A
Time to Trip : 7.5s
Resistance - Initial (Ri) (Min) : 3.3 mOhms
Resistance - Post Trip (R1) (Max) : 8.6 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.138" W (17.50mm x 3.50mm)
Height - Seated (Max) : 1.102" (28.00mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Alternate Packaging
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 12A
Current - Trip (It) : 20.4A
Time to Trip : 7.5s
Resistance - Initial (Ri) (Min) : 3.3 mOhms
Resistance - Post Trip (R1) (Max) : 8.6 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" L x 0.138" W (17.50mm x 3.50mm)
Height - Seated (Max) : 1.102" (28.00mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
448 in stock

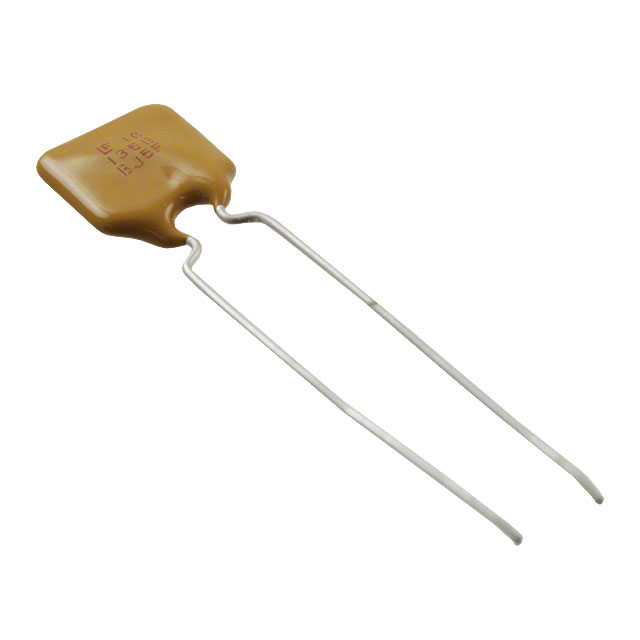

16R135BPR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 4.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 4.5s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.350" L x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
100 in stock

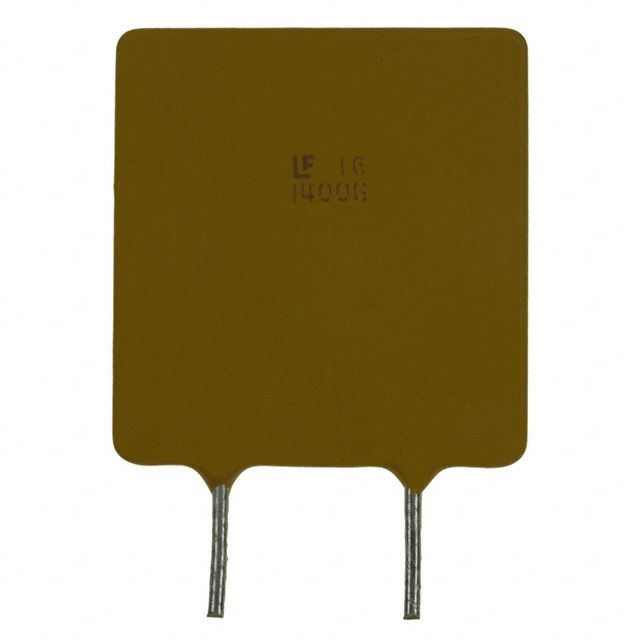

16R1400GH
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 14A
Current - Trip (It) : 23.8A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 2.6 mOhms
Resistance - Post Trip (R1) (Max) : 6.4 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.138" W (23.50mm x 3.50mm)
Height - Seated (Max) : 1.098" (27.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : POLY-FUSE®, 16R
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 14A
Current - Trip (It) : 23.8A
Time to Trip : 9s
Resistance - Initial (Ri) (Min) : 2.6 mOhms
Resistance - Post Trip (R1) (Max) : 6.4 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.925" L x 0.138" W (23.50mm x 3.50mm)
Height - Seated (Max) : 1.098" (27.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
14722 in stock

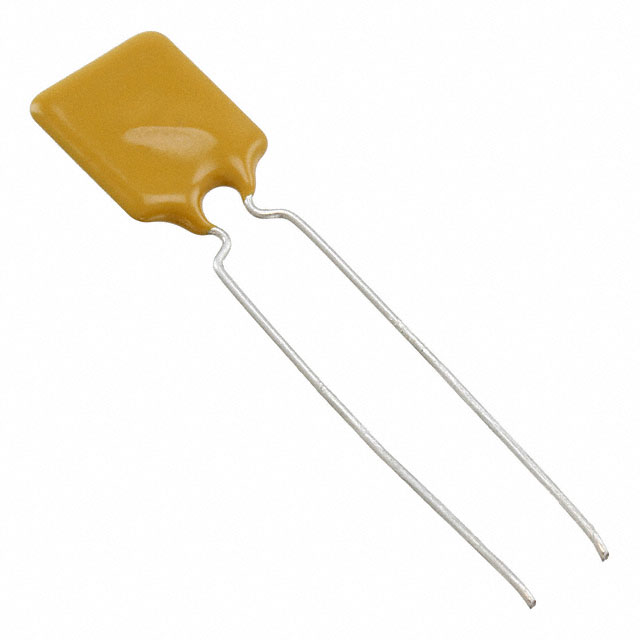

16R185BPR
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 90 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.402" L x 0.118" W (10.20mm x 3.00mm)
Height - Seated (Max) : 0.618" (15.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : POLY-FUSE®, USBR
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 90 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.402" L x 0.118" W (10.20mm x 3.00mm)
Height - Seated (Max) : 0.618" (15.70mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
2295 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
