Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NAND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 17ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2694 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : NOR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 16ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
4679 in stock

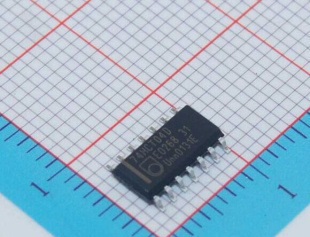

Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 16ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2426 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : AND Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
6191 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Inverter
Number of Circuits : 6
Number of Inputs : 6
Features : Schmitt Trigger
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : -
Logic Level - High : -
Max Propagation Delay @ V, Max CL : 31ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2918 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Buffer, Inverting
Number of Elements : 2
Number of Bits per Element : 4
Input Type : -
Output Type : 3-State
Current - Output High, Low : 6mA, 6mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
3922 in stock

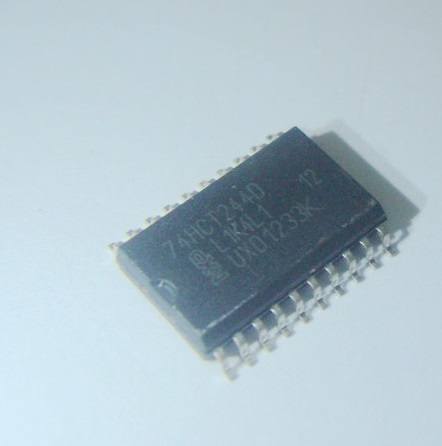

Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Buffer, Non-Inverting
Number of Elements : 2
Number of Bits per Element : 4
Input Type : -
Output Type : 3-State
Current - Output High, Low : 6mA, 6mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
5462 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : Transceiver, Non-Inverting
Number of Elements : 1
Number of Bits per Element : 8
Input Type : -
Output Type : 3-State
Current - Output High, Low : 6mA, 6mA
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
3073 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HCT
Part Status : Active
Logic Type : OR Gate
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 4.5 V ~ 5.5 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 4mA, 4mA
Logic Level - Low : 0.8V
Logic Level - High : 2V
Max Propagation Delay @ V, Max CL : 18ns @ 5.5V, 50pF
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOIC
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
1328 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 8:1
Number of Circuits : 1
On-State Resistance (Max) : 120 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 4.5 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±1 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 39ns, 32ns
-3db Bandwidth : 180MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 400nA
Crosstalk : -
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
3645 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 150 Ohm
Channel-to-Channel Matching (δRon) : 6 Ohm
Voltage - Supply, Single (V+) : 4.5 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±1 V ~ 5 V
Switch Time (Ton, Toff) (Max) : 60ns, 48ns
-3db Bandwidth : 180MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 2µA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2720 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 110 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 4.5 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 45ns, 59ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -90dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
4798 in stock
