Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 130 Ohm
Channel-to-Channel Matching (δRon) : 4 Ohm
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 34ns, 32ns
-3db Bandwidth : -
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 10pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
3630 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 3
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 38ns, 38ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -50dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2882 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : -
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 80 Ohm
Channel-to-Channel Matching (δRon) : 5 Ohm (Typ)
Voltage - Supply, Single (V+) : 2 V ~ 12 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 12ns, 12ns
-3db Bandwidth : 200MHz
Charge Injection : -
Channel Capacitance (CS(off), CD(off)) : 3pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -60dB @ 1MHz
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SOIC
0
4955 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : Monostable
Independent Circuits : 2
Schmitt Trigger Input : Yes
Propagation Delay : 25ns
Current - Output High, Low : 5.2mA, 5.2mA
Voltage - Supply : 2V ~ 6V
Operating Temperature : -40°C ~ 125°C (TA)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
3115 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : Buffer, Inverting
Number of Elements : 1
Number of Bits per Element : 8
Input Type : -
Output Type : 3-State
Current - Output High, Low : 7.8mA, 7.8mA
Voltage - Supply : 2 V ~ 6 V
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
1899 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : Buffer, Non-Inverting
Number of Elements : 1
Number of Bits per Element : 8
Input Type : -
Output Type : 3-State
Current - Output High, Low : 7.8mA, 7.8mA
Voltage - Supply : 2 V ~ 6 V
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
804 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : D-Type Latch
Circuit : 8:8
Output Type : Tri-State
Voltage - Supply : 2 V ~ 6 V
Independent Circuits : 1
Delay Time - Propagation : 26ns
Current - Output High, Low : 7.8mA, 7.8mA
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 20-SOIC
0
1664 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Function : Standard
Type : D-Type
Output Type : Tri-State, Non-Inverted
Number of Elements : 1
Number of Bits per Element : 8
Clock Frequency : 59MHz
Max Propagation Delay @ V, Max CL : 33ns @ 6V, 150pF
Trigger Type : Positive Edge
Current - Output High, Low : 7.8mA, 7.8mA
Voltage - Supply : 2 V ~ 6 V
Current - Quiescent (Iq) : 4µA
Input Capacitance : 5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 20-SOIC (0.295", 7.50mm Width)
0
3987 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : Shift Register
Output Type : Push-Pull
Number of Elements : 1
Number of Bits per Element : 8
Function : -
Voltage - Supply : 2 V ~ 6 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
17493 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : Shift Register
Output Type : Tri-State
Number of Elements : 1
Number of Bits per Element : 8
Function : Serial to Parallel
Voltage - Supply : 2 V ~ 6 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOP
0
2032 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Function : Set(Preset) and Reset
Type : D-Type
Output Type : Differential
Number of Elements : 2
Number of Bits per Element : 1
Clock Frequency : 67MHz
Max Propagation Delay @ V, Max CL : 26ns @ 6V, 50pF
Trigger Type : Positive Edge
Current - Output High, Low : 5.2mA, 5.2mA
Voltage - Supply : 2 V ~ 6 V
Current - Quiescent (Iq) : 2µA
Input Capacitance : 5pF
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2860 in stock
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 74HC
Part Status : Active
Logic Type : XOR (Exclusive OR)
Number of Circuits : 4
Number of Inputs : 2
Features : -
Voltage - Supply : 2 V ~ 6 V
Current - Quiescent (Max) : 1µA
Current - Output High, Low : 5.2mA, 5.2mA
Logic Level - Low : 0.5 V ~ 1.8 V
Logic Level - High : 1.5 V ~ 4.2 V
Max Propagation Delay @ V, Max CL : 17ns @ 6V, 50pF
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Supplier Device Package : 14-SOP
Package / Case : 14-SOIC (0.154", 3.90mm Width)
0
2742 in stock

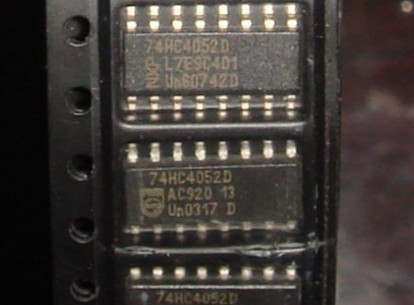

.jpg "Show details for 74HC4053D(BJ)")
