Toshiba Semiconductor and Storage

- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.


Part Number

Manufacturer

Description

Unit Price

In Stock

Picture of TLP7820(D4-B,E

TLP7820(D4-B,E

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Amplifier Type : Isolation
Number of Circuits : 1
Output Type : Differential
Slew Rate : -
Gain Bandwidth Product : -
-3db Bandwidth : 230kHz
Current - Input Bias : 5.5nA
Voltage - Input Offset : 900µV
Current - Supply : 12mA
Current - Output / Channel : -
Voltage - Supply, Single/Dual (±) : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SO

0

1 in stock

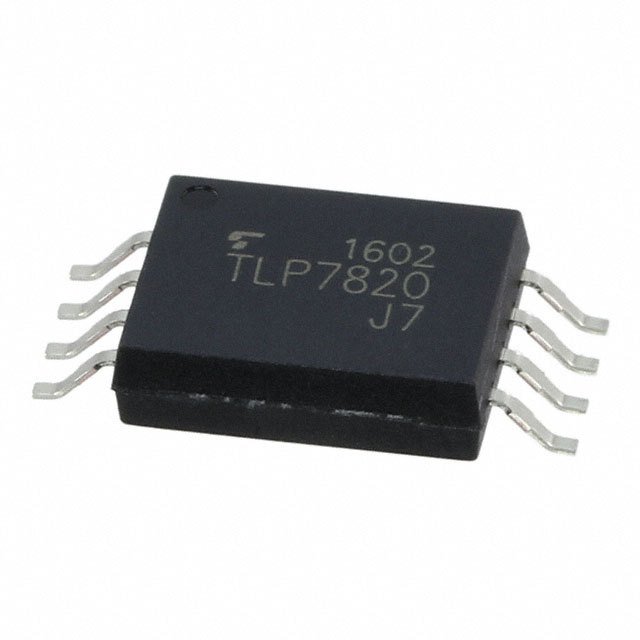

Picture of TLP7820(TL,E

TLP7820(TL,E

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Amplifier Type : Isolation
Number of Circuits : 1
Output Type : Differential
Slew Rate : -
Gain Bandwidth Product : -
-3db Bandwidth : 230kHz
Current - Input Bias : 5.5nA
Voltage - Input Offset : 900µV
Current - Supply : 12mA
Current - Output / Channel : -
Voltage - Supply, Single/Dual (±) : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 8-SOL

0

2952 in stock

Picture of TLP7830(TL,E

TLP7830(TL,E

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Type : Modulator
Number of Channels : 1
Resolution (Bits) : 1 b
Sampling Rate (Per Second) : -
Data Interface : Serial
Voltage Supply Source : Dual Supply
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package : -

0

1394 in stock

Picture of TLP785(BL,F)

TLP785(BL,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP

0

5288 in stock

Picture of TLP785(F)

TLP785(F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP

0

2211 in stock

Picture of TLP785(GB,F)

TLP785(GB,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP

0

27310 in stock

Picture of TLP785(GR,F)

TLP785(GR,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP

0

1419 in stock

Picture of TLP785(GRH-TP6,F)

TLP785(GRH-TP6,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 150% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD

0

3202 in stock

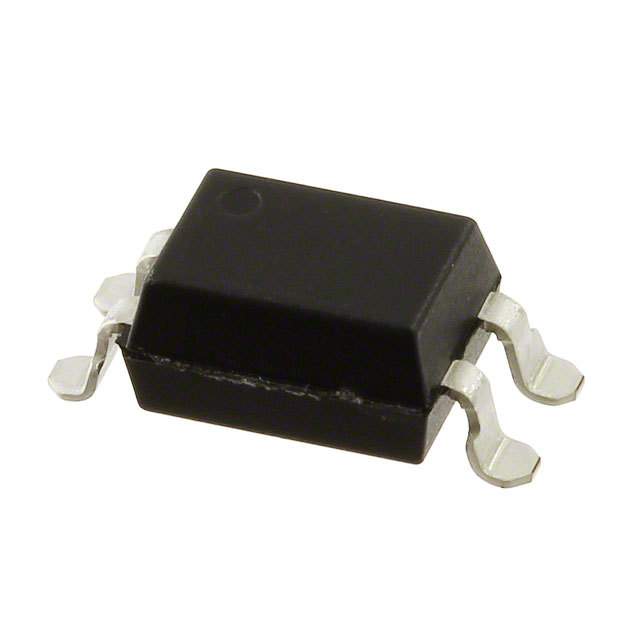

Picture of TLP785(GR-TP6,F)

TLP785(GR-TP6,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 300% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD

0

24495 in stock

Picture of TLP785(TP6,F)

TLP785(TP6,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD

0

5578 in stock

Picture of TLP785(Y,F)

TLP785(Y,F)

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 150% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP

0

1050 in stock

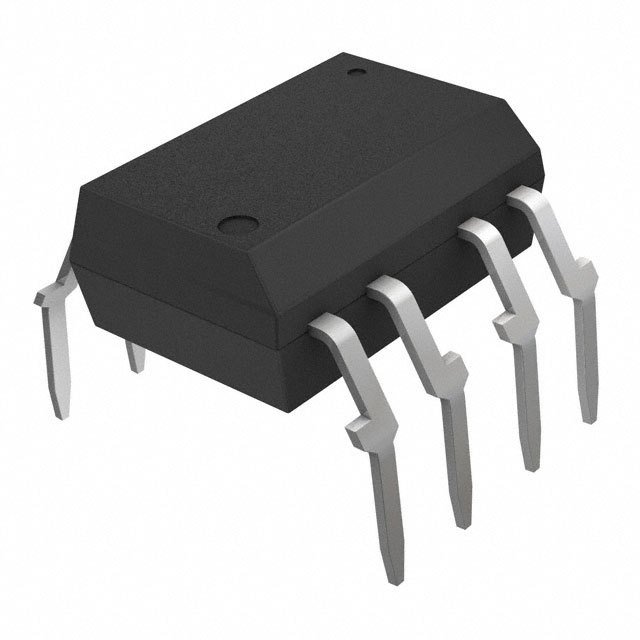

Picture of TLP7920(D4,F

TLP7920(D4,F

Toshiba Semiconductor and Storage

Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Amplifier Type : Isolation
Number of Circuits : 1
Output Type : Differential
Slew Rate : -
Gain Bandwidth Product : -
-3db Bandwidth : 230kHz
Current - Input Bias : 5.5nA
Voltage - Input Offset : 730µV
Current - Supply : 12mA
Current - Output / Channel : -
Voltage - Supply, Single/Dual (±) : 4.5 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP

0

40 in stock
