Welcome to Weijie Semiconductor
Toshiba Semiconductor and Storage
- Toshiba Semiconductor & Storage offers a broad range of enabling technology solutions that allow OEMs, ODMs, CMs and fabless chip companies to develop advanced integrated products for the computing, networking, communications, digital consumer, automotive and other markets.
Part Number
Manufacturer
Description
Unit Price
In Stock
.JPG "Show details for TLP597G(F)")
TLP597G(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : TLP597G
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.15VDC
Voltage - Load : 0V ~ 350V
Load Current : 120mA
On-State Resistance (Max) : 35 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Packaging : Tube
Series : TLP597G
Part Status : Active
Mounting Type : Through Hole
Circuit : SPST-NO (1 Form A)
Output Type : AC, DC
Voltage - Input : 1.15VDC
Voltage - Load : 0V ~ 350V
Load Current : 120mA
On-State Resistance (Max) : 35 Ohms
Termination Style : PC Pin
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1854 in stock
.jpg "Show details for TLP620-4(F)")
TLP620-4(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 4
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
189 in stock
TLP624F
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
450 in stock

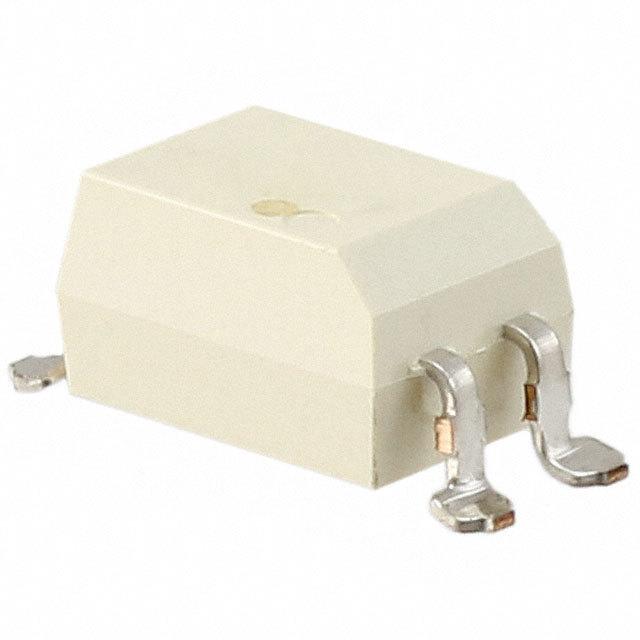

TLP624LF1F
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
2466 in stock
.jpg "Show details for TLP626(BV,F)")
TLP626(BV,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
6347 in stock
.jpg "Show details for TLP626(F)")
TLP626(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 1200% @ 1mA
Turn On / Turn Off Time (Typ) : 10µs, 8µs
Rise / Fall Time (Typ) : 8µs, 8µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
4635 in stock
.jpg "Show details for TLP630(GB,F)")
TLP630(GB,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor with Base
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : AC, DC
Output Type : Transistor with Base
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
2329 in stock

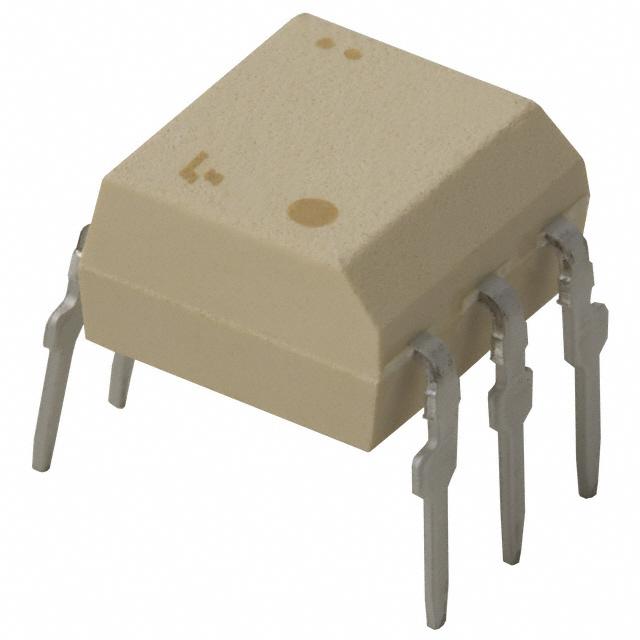

.jpg "Show details for TLP631(F)")
TLP631(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 3µs
Rise / Fall Time (Typ) : 2µs, 3µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 55V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.15V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
450 in stock
.jpg "Show details for TLP700(F)")
TLP700(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 15kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 1.5A, 1.5A
Current - Peak Output : 2A
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : UR
0
675 in stock
.jpg "Show details for TLP700H(F)")
TLP700H(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 250ns
Rise / Fall Time (Typ) : 15ns, 8ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 15 V ~ 30 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP
Approvals : cUL, UL
0
116 in stock
.jpg "Show details for TLP701(TP,F)")
TLP701(TP,F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 700ns, 700ns
Pulse Width Distortion (Max) : -
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.55V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
0
1377 in stock
.jpg "Show details for TLP701A(F)")
TLP701A(F)
Toshiba Semiconductor and Storage
Manufacturer : Toshiba Semiconductor and Storage
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 350ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Common Mode Transient Immunity (Min) : 20kV/µs
Propagation Delay tpLH / tpHL (Max) : 500ns, 500ns
Pulse Width Distortion (Max) : 350ns
Rise / Fall Time (Typ) : 50ns, 50ns
Current - Output High, Low : 400mA, 400mA
Current - Peak Output : 600mA
Voltage - Forward (Vf) (Typ) : 1.57V
Current - DC Forward (If) (Max) : 25mA
Voltage - Supply : 10 V ~ 30 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package : 6-SDIP Gull Wing
Approvals : cUL, UL
0
509 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
