Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock

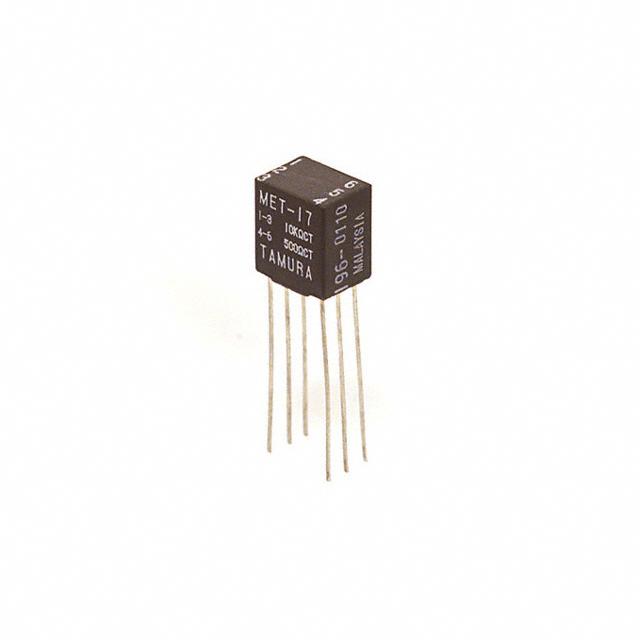

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 500CT
DC Resistance (DCR) - Primary : 1 kOhm
DC Resistance (DCR) - Secondary : 80 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 40mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
530 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 22.4:1
Impedance - Primary (Ohms) : 1.6kCT
Impedance - Secondary (Ohms) : 3.2
DC Resistance (DCR) - Primary : 230 Ohm
DC Resistance (DCR) - Secondary : 1 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±3dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 65mW Max @ 300Hz
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
956 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 4.47:1
Impedance - Primary (Ohms) : 1k
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 110 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
5 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
1855 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
2646 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.66:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 8
DC Resistance (DCR) - Primary : 60 Ohm
DC Resistance (DCR) - Secondary : 1.5 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
6167 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 3.16:1
Impedance - Primary (Ohms) : 500
Impedance - Secondary (Ohms) : 50
DC Resistance (DCR) - Primary : 55 Ohm
DC Resistance (DCR) - Secondary : 8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
100 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 3.54:1
Impedance - Primary (Ohms) : 150
Impedance - Secondary (Ohms) : 12
DC Resistance (DCR) - Primary : 20 Ohm
DC Resistance (DCR) - Secondary : 2.5 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
778 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 85 Ohm
DC Resistance (DCR) - Secondary : 110 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -40°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
9092 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 8.62:1
Impedance - Primary (Ohms) : 10k
Impedance - Secondary (Ohms) : 125
DC Resistance (DCR) - Primary : 1.1 kOhm
DC Resistance (DCR) - Secondary : 28 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 20kHz
Frequency Response : ±3dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 10mW Max @ 300Hz
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
32 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2:1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 70 Ohm
DC Resistance (DCR) - Secondary : 95 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1000VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
968 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 135
Impedance - Secondary (Ohms) : 135CT
DC Resistance (DCR) - Primary : 10.5 Ohm
DC Resistance (DCR) - Secondary : 10.8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 1500VRMS @ 1 Minute
Insertion Loss : -
Return Loss : -
Power Level : 50mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
3144 in stock
