Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

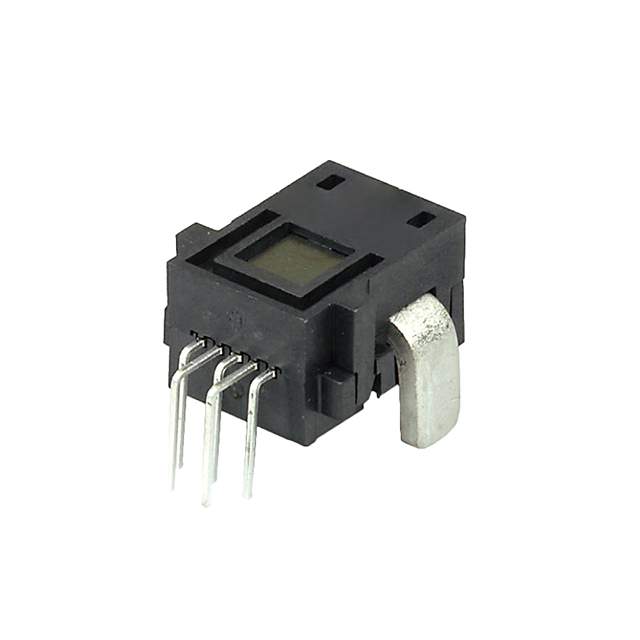

LA01P170S05 LA01P170S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01P
Part Status : Obsolete
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 170A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 12.5mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
100 in stock

LA02P021S03 LA02P021S03

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA02P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 21A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 62.5mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 2.97 V ~ 3.63 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 100°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
46 in stock

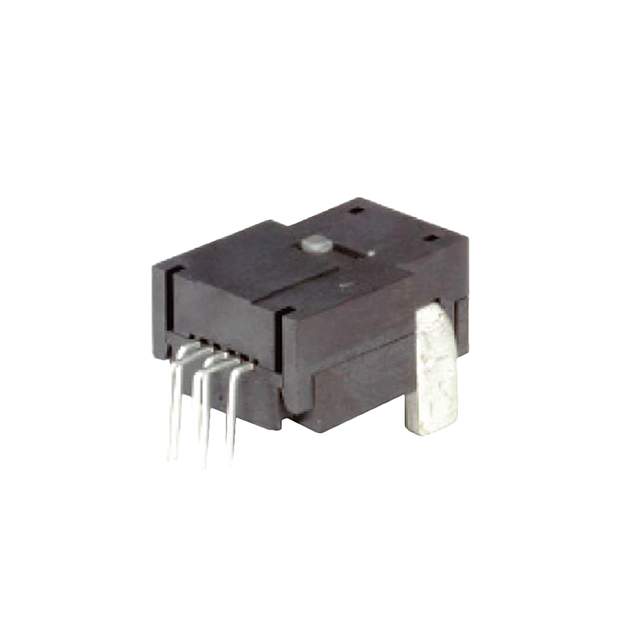

LA02P035S03 LA02P035S03

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA02P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 35A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 37.5mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 2.97 V ~ 3.63 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 100°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
50 in stock

LA02P054S03 LA02P054S03

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA02P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 54A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 24.5mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 2.97 V ~ 3.63 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 100°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
49 in stock

LA02P085S03 LA02P085S03

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA02P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 85A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 15.5mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 2.97 V ~ 3.63 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 100°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
50 in stock

LA03P021S05 LA03P021S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA03P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 21A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 100mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±0.7%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 11mA
Operating Temperature : -40°C ~ 110°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
45 in stock

LA03P035S05 LA03P035S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA03P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 35A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 60mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 11mA
Operating Temperature : -40°C ~ 110°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
40 in stock

LA03P054S05 LA03P054S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA03P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 54A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 40mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 11mA
Operating Temperature : -40°C ~ 110°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
63 in stock

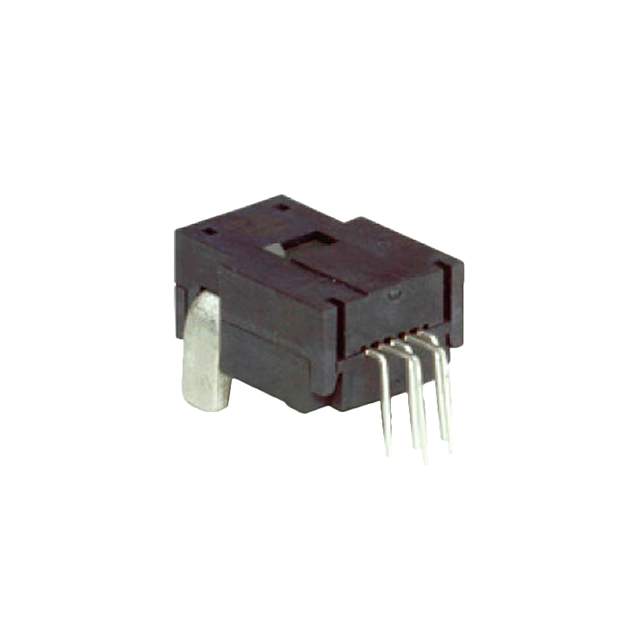

LA03P085S05 LA03P085S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA03P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 85A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : DC ~ 300kHz
Linearity : ±1%
Accuracy : ±0.5%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 11mA
Operating Temperature : -40°C ~ 110°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
38 in stock

MET-01 MET-01

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 14.1:1
Impedance - Primary (Ohms) : 200kCT
Impedance - Secondary (Ohms) : 1kCT
DC Resistance (DCR) - Primary : 5.3 kOhm
DC Resistance (DCR) - Secondary : 120 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 10mW Max @ 300Hz
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
465 in stock

MET-09 MET-09

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 10kCT
DC Resistance (DCR) - Primary : 1 kOhm
DC Resistance (DCR) - Secondary : 1.3 kOhm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 40mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
1265 in stock

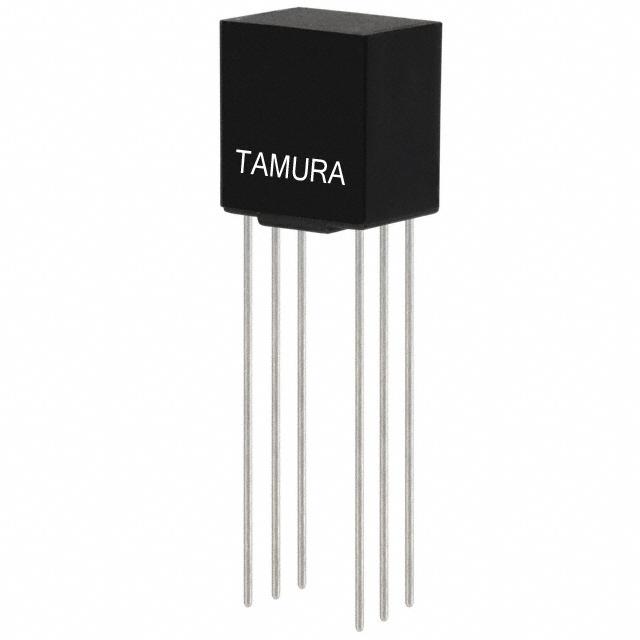

MET-11 MET-11

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : MET
Part Status : Active
Turns Ratio - Primary:Secondary : 2.23:1
Impedance - Primary (Ohms) : 10kCT
Impedance - Secondary (Ohms) : 2kCT
DC Resistance (DCR) - Primary : 1 kOhm
DC Resistance (DCR) - Secondary : 300 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 100kHz
Frequency Response : ±2dB
Voltage - Isolation : 500VRMS @ 30 Seconds
Insertion Loss : -
Return Loss : -
Power Level : 40mW
Operating Temperature : -20°C ~ 85°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.409" L x 0.310" W (10.40mm x 7.87mm)
Height - Seated (Max) : 0.465" (11.80mm)
Termination Style : PC Pin
0
45 in stock
