Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock

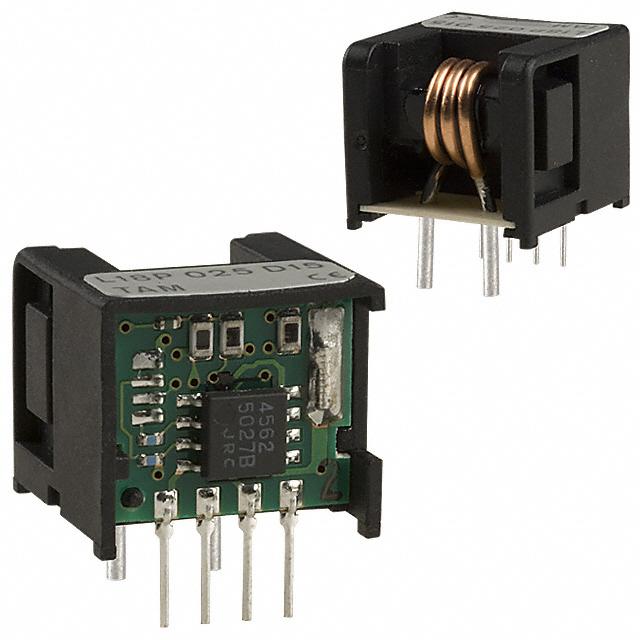

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : -
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 100kHz
Linearity : ±1%
Accuracy : -
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 15mA
Operating Temperature : -30°C ~ 80°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
541 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : L34SXXXD15
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 1000A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : -
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 25mA
Operating Temperature : -30°C ~ 80°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module
0
61 in stock

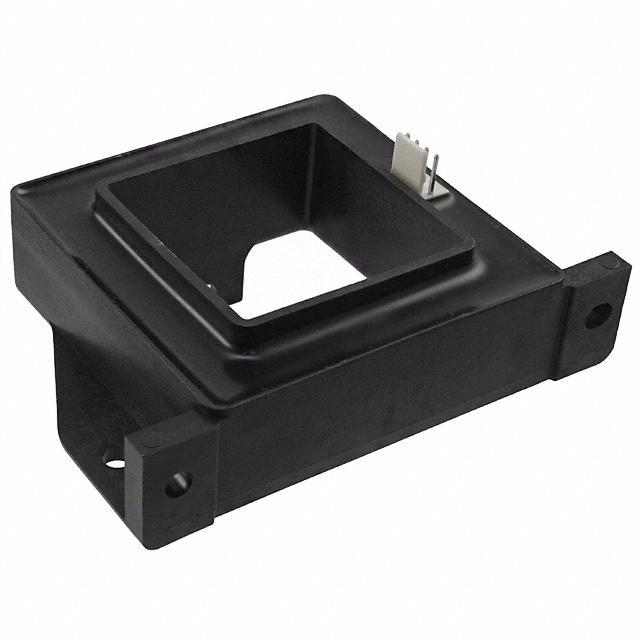

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : L34SXXXD15
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 400A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : -
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 25mA
Operating Temperature : -30°C ~ 80°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module
0
50 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : L34SXXXD15
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 600A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : -
Frequency : DC ~ 50kHz
Linearity : ±0.5%
Accuracy : -
Voltage - Supply : ±15V
Response Time : 5µs
Current - Supply (Max) : 25mA
Operating Temperature : -30°C ~ 80°C
Polarization : Bidirectional
Mounting Type : Panel Mount
Package / Case : Module
0
54 in stock

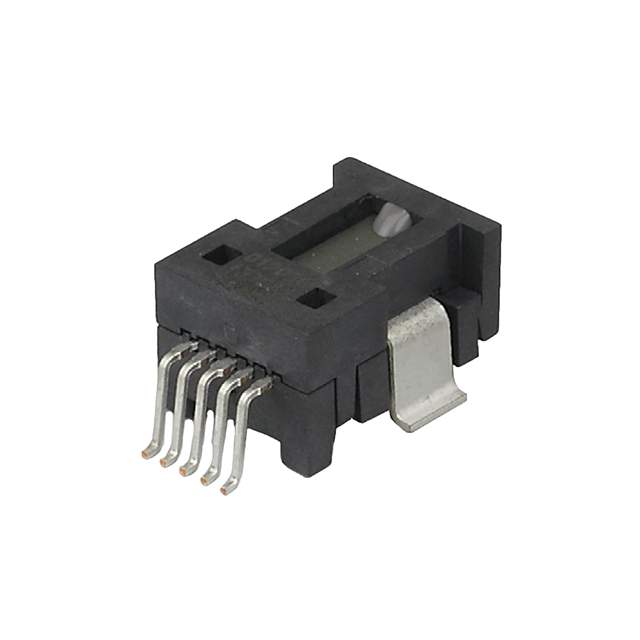

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01M
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 21A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 100mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Surface Mount
Package / Case : Module
0
46 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01M
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 31.8A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 66mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Surface Mount
Package / Case : Module
0
49 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01M
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 35A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 60mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Surface Mount
Package / Case : Module
0
48 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01M
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 41A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 50mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Surface Mount
Package / Case : Module
0
44 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 35A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 60mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
133 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 46A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 45mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
37 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 54A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 40mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
43 in stock

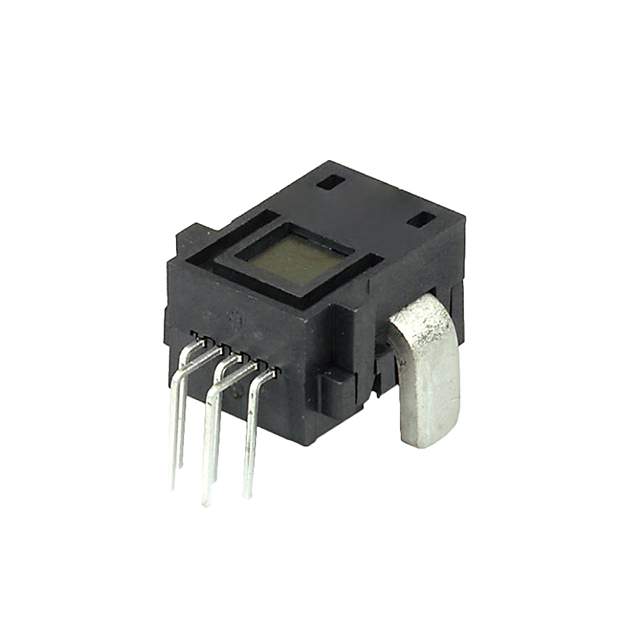

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : LA01P
Part Status : Active
For Measuring : AC/DC
Sensor Type : Hall Effect, Open Loop
Current - Sensing : 85A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : DC ~ 400kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 4.5 V ~ 5.5 V
Response Time : 1µs
Current - Supply (Max) : 10mA
Operating Temperature : -40°C ~ 90°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : Module
0
71 in stock
