Sunon

- Founded in 1980, Sunonwealth Electric Machine Industry Company Limited has always adhered to the business philosophy of “Brand, Innovation, and Value”. Step by step, it has now become a global leader in the fields of precision motors, mini fans, and thermal modules.

Sunon designs and manufactures a full range of high-performance fans, blowers and coolers. The company is committed to supplying the widest selection of quality axial fans and blowers, which includes DC brushless fans, micro DC blowers, CPU coolers, graphic card coolers and AC fans. Sunon manufactures some of the industries smallest, thinnest and most power efficient fans and blowers in sizes ranging from 0.315 inches (8mm) to 10 inches (250mm) in outside diameter and from 0.157 inches (4mm) to 1.5 inches (38mm) in thickness. More than 700 different models are available to customers.

Sunon’s fans, blowers and coolers find application in a wide range of industries and products. The company’s products are used in many of the world’s most popular personal computers, workstations, servers, networking hubs, scanners, printers and more. In office equipment, Sunon products can be found in copiers, fax machines and projectors. Sunon is equally at home in the appliance market, with applications for refrigerators, air cleaners and air heaters. Other markets include medical, laboratory and manufacturing equipment, as well as vending machines.

Part Number
Manufacturer
Description
Unit Price
In Stock

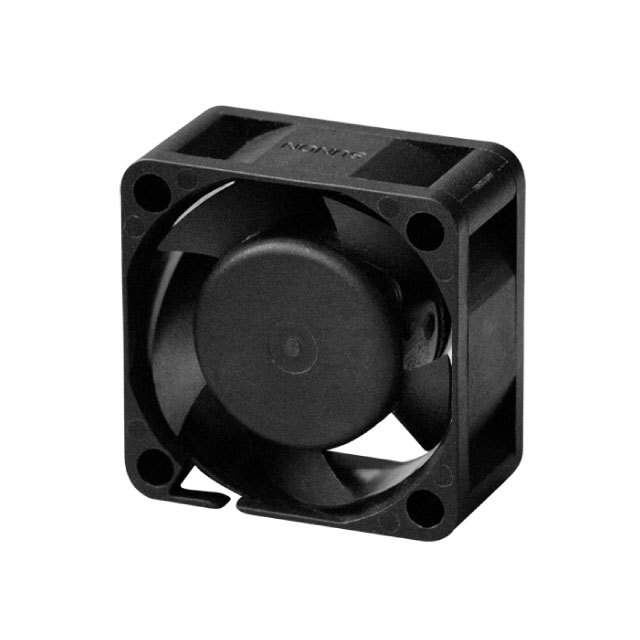

MF40201VX-1000U-F99 MF40201VX-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 27.5 dB(A)
Power (Watts) : 960mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
953 in stock

MF40201VX-1000U-G99 MF40201VX-1000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 27.5 dB(A)
Power (Watts) : 960mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
4885 in stock

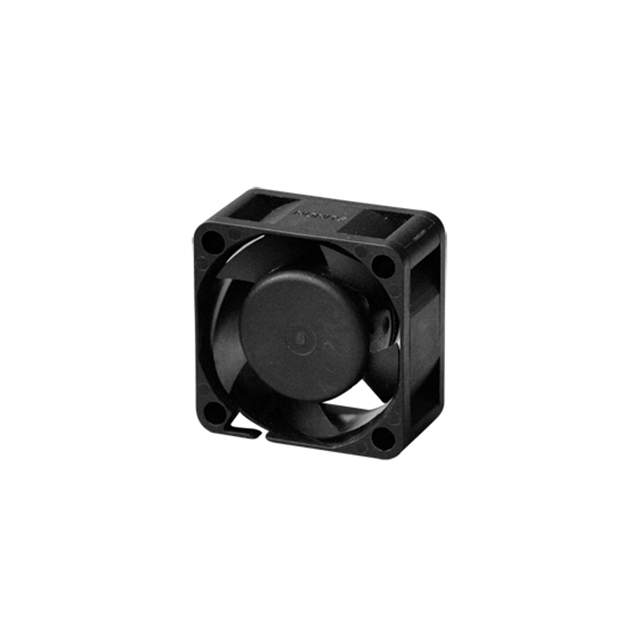

MF40202V1-1000U-A99 MF40202V1-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 8.9 CFM (0.249m鲁/min)
Static Pressure : 0.220 in H2O (54.8 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 25.5 dB(A)
Power (Watts) : 770mW
RPM : 7000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
186 in stock

MF40202V2-1000U-A99 MF40202V2-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 7.7 CFM (0.216m鲁/min)
Static Pressure : 0.170 in H2O (42.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 21.0 dB(A)
Power (Watts) : 600mW
RPM : 6000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
765 in stock

MF40202VX-1000U-A99 MF40202VX-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 27.5 dB(A)
Power (Watts) : 940mW
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
6 in stock

MF40202VX-1000U-F99 MF40202VX-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 27.5 dB(A)
Power (Watts) : 940mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
100 in stock

MF40202VX-1000U-G99 MF40202VX-1000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 20.00mm
Air Flow : 10.8 CFM (0.302m鲁/min)
Static Pressure : 0.290 in H2O (72.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 27.5 dB(A)
Power (Watts) : 940mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.064 lb (29.03g)
0
100 in stock

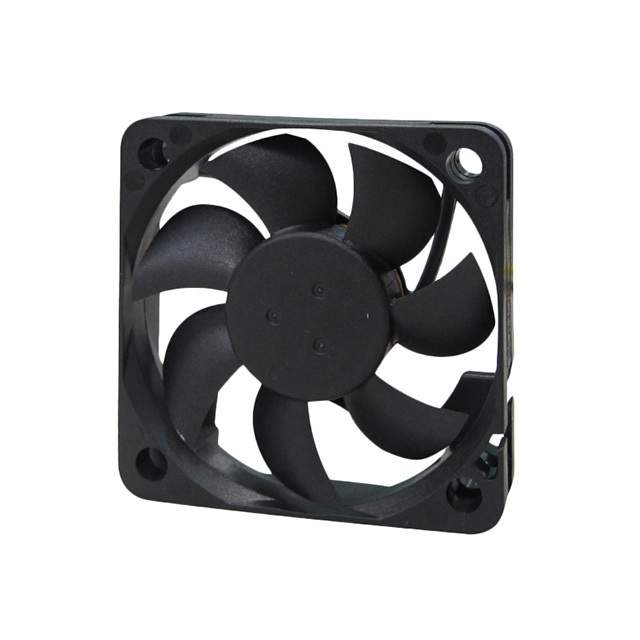

MF50101V1-1000U-A99 MF50101V1-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 10.00mm
Air Flow : 13.8 CFM (0.386m鲁/min)
Static Pressure : 0.150 in H2O (37.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 30.7 dB(A)
Power (Watts) : 840mW
RPM : 5800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.043 lb (19.5g)
0
14 in stock

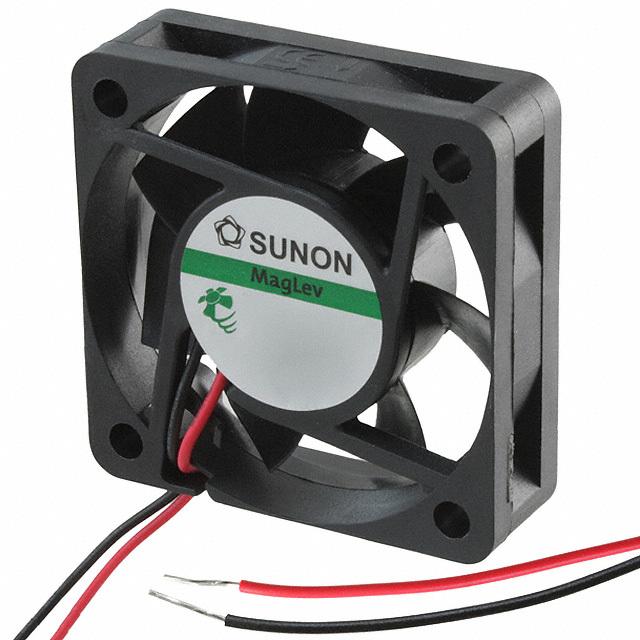

MF50151V1-1000U-A99 MF50151V1-1000U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 33.0 dB(A)
Power (Watts) : 920mW
RPM : 6100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.073 lb (33.11g)
0
73 in stock

MF50151V1-1000U-F99 MF50151V1-1000U-F99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Locked Rotor Sensor
Noise : 33.0 dB(A)
Power (Watts) : 870mW
RPM : 6100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.073 lb (33.11g)
0
111 in stock

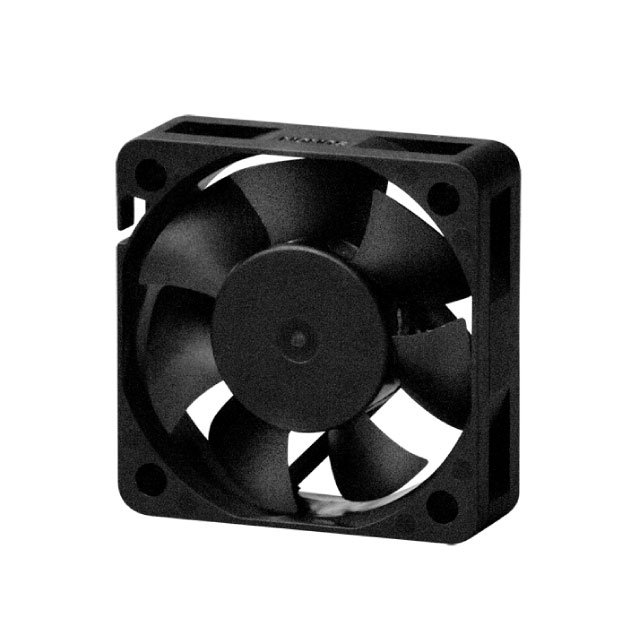

MF50151V1-1000U-G99 MF50151V1-1000U-G99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 50mm L x 50mm H
Width : 15.00mm
Air Flow : 17.0 CFM (0.476m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 33.0 dB(A)
Power (Watts) : 870mW
RPM : 6100 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.073 lb (33.11g)
0
100 in stock

MF50151V1-B00U-A99 MF50151V1-B00U-A99

Sunon
Manufacturer : Sunon Fans
Series : MagLev® MF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 51.7mm L x 51.6mm H
Width : 15.00mm
Air Flow : 4.5 CFM (0.126m鲁/min)
Static Pressure : 0.670 in H2O (166.9 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Blower
Features : Auto Restart
Noise : 39.8 dB(A)
Power (Watts) : 1.20W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.067 lb (30.39g)
0
23 in stock
