Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

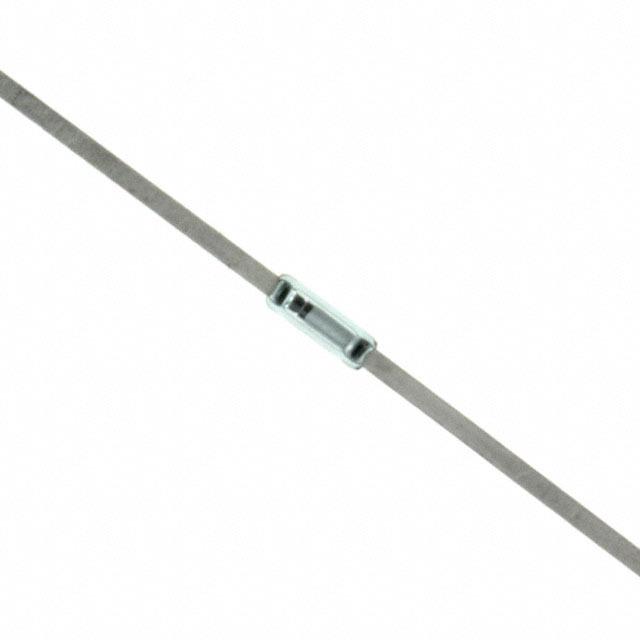

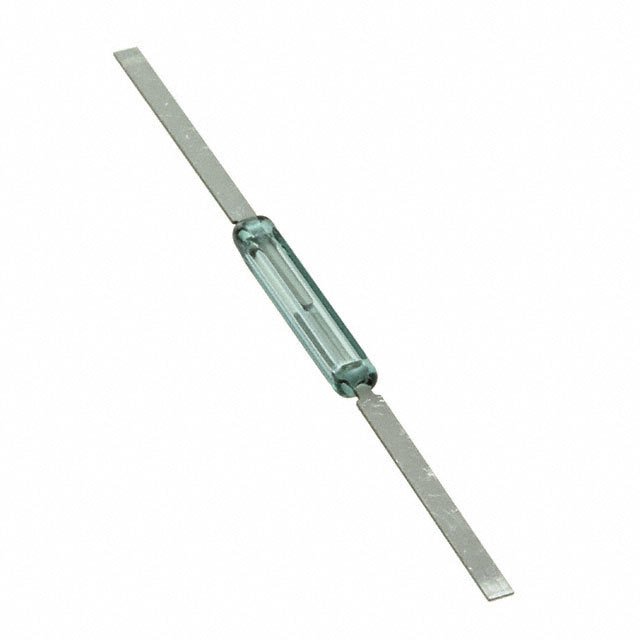

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 300mA (AC/DC)
Voltage - Switching AC : 30V
Voltage - Switching DC : 30V
Power - Rated : 1W
Operate Time : 0.2ms
Release Time : 0.15ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.161" L x 0.057" W x 0.043" H (4.10mm x 1.45mm x 1.10mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.1pF
Current - Carry : 500mA (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 25AT
Release Range : -
Current - Switching : 700mA (AC/DC)
Voltage - Switching AC : 1000V
Voltage - Switching DC : 1000V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 700mA (AC/DC)
Voltage - Switching AC : 1000V
Voltage - Switching DC : 1000V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 30 ~ 35AT
Release Range : -
Current - Switching : 700mA (AC/DC)
Voltage - Switching AC : 1000V
Voltage - Switching DC : 1000V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.2ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

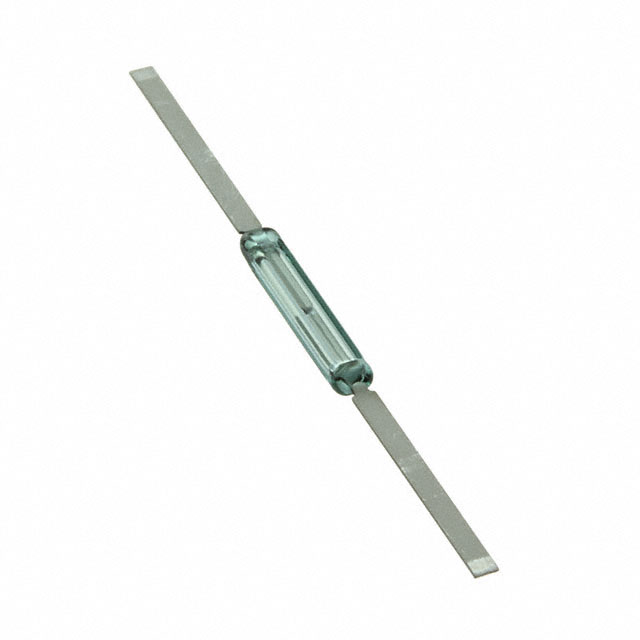

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tape & Reel (TR)
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 5 ~ 10AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
100 in stock

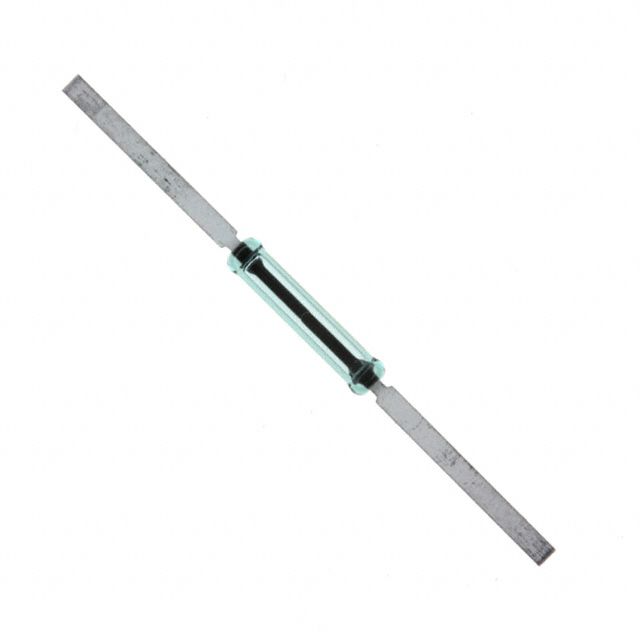

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
3164 in stock

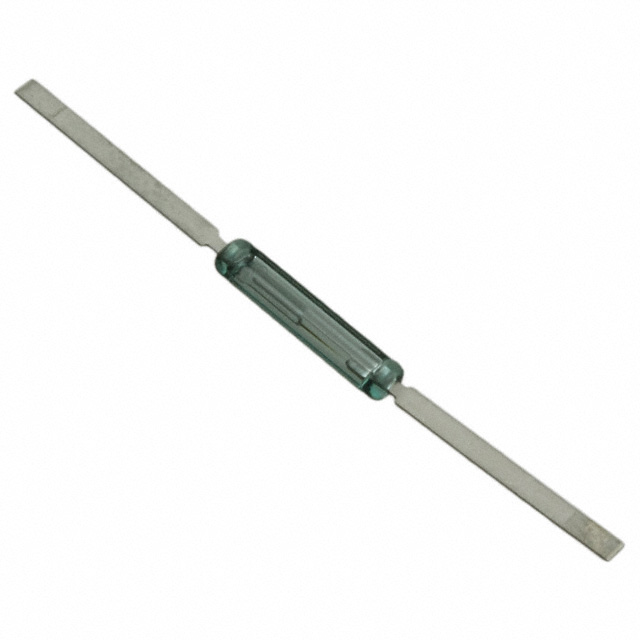

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 20W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Surface Mount
Termination Style : Axial, Flat
Length - Overall : 1.358" (34.50mm)
Size - Body : 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1.25A (AC/DC)
0
127 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 25 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 350V
Voltage - Switching DC : 350V
Power - Rated : 50W
Operate Time : 1.1ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.181" (55.40mm)
Size - Body : 0.108" Dia x 0.827" L (2.75mm x 21.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.5pF
Current - Carry : 2.5A (AC/DC)
0
1510 in stock

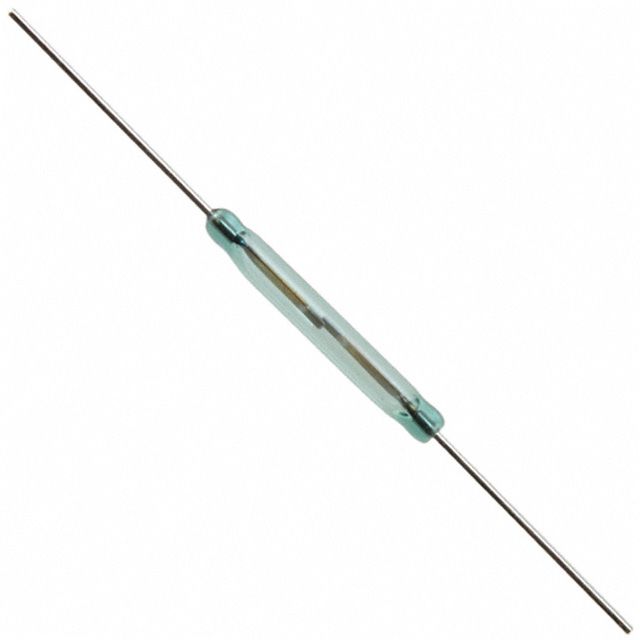

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 20 ~ 30AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.7ms
Release Time : 0.05ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
1395 in stock

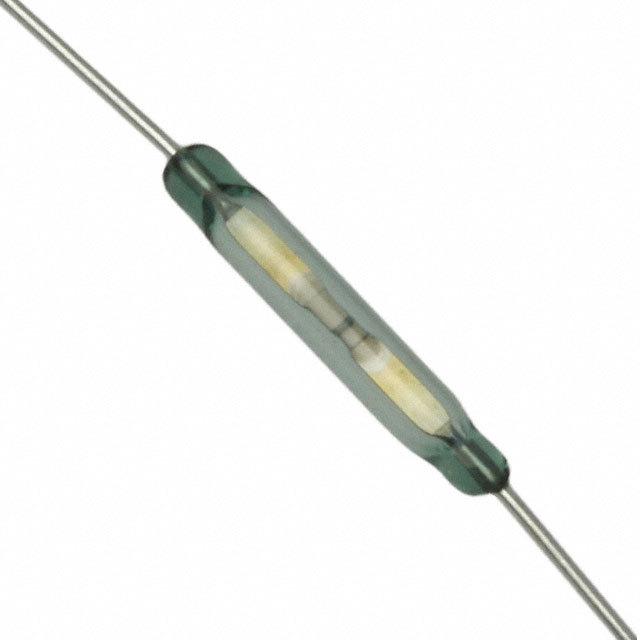

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 1.25A (AC/DC)
0
4894 in stock

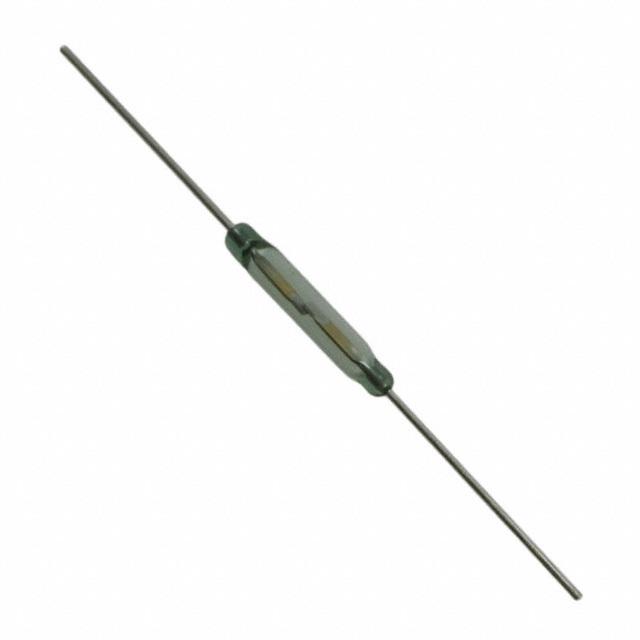

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 180V
Voltage - Switching DC : 180V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.744" (44.30mm)
Size - Body : 0.087" Dia x 0.551" L (2.20mm x 14.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 1.25A (AC/DC)
0
1235 in stock

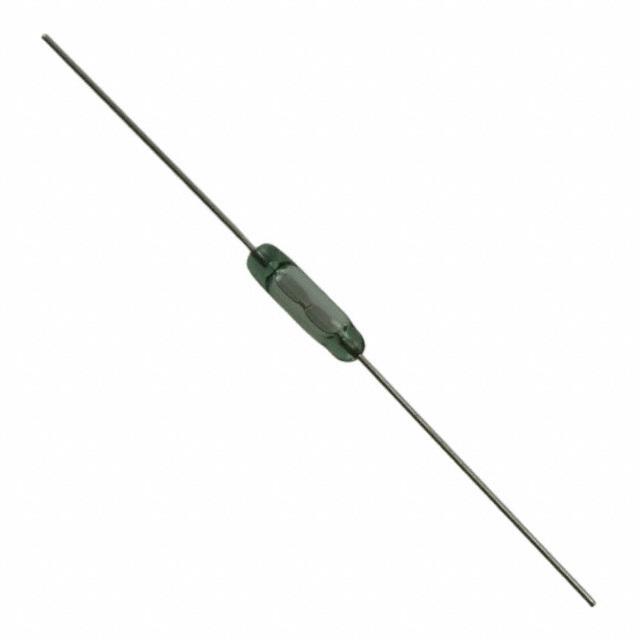

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : KSK
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 15AT
Release Range : -
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 170V
Voltage - Switching DC : 170V
Power - Rated : 10W
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 1.409" (35.80mm)
Size - Body : 0.071" Dia x 0.276" L (1.80mm x 7.00mm)
Height Above Board : -
Operating Temperature : -40°C ~ 130°C
Capacitance : 0.2pF
Current - Carry : 500mA (AC/DC)
0
4049 in stock
