Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 12VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 500mA
Switching Voltage : 175VAC, 175VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 0.7ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
129 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 12VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 8.4 VDC
Turn Off Voltage (Min) : 1.8 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
558 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 7.5mA
Coil Voltage : 15VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 200VDC - Max
Turn On Voltage (Max) : 10.5 VDC
Turn Off Voltage (Min) : 2.2 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
3 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 500mA
Switching Voltage : 175VAC, 175VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 0.7ms
Release Time : 1.5ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
9 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 500mA
Switching Voltage : 175VAC, 175VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 0.7ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Tube
Series : DIP
Part Status : Active
Coil Type : Non Latching
Coil Current : 12.0mA
Coil Voltage : 24VDC
Contact Form : DPST-NO (2 Form A)
Contact Rating (Current) : 1A
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 0.5ms
Release Time : 0.1ms
Features : Diode
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
30 in stock

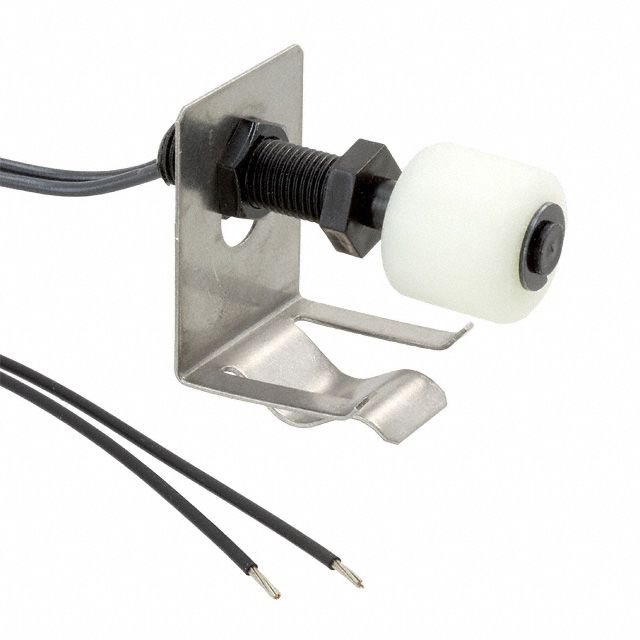

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Series : HVAC/R
Part Status : Active
Type : Liquid
Output Type : Switch (Single Float)
Output Configuration : SPST-NC
Current : -
Minimum Liquid Specific Gravity : -
Switch Actuation Level : -
Mounting Type : Bracket Mount
Material - Housing & Prism : -
Operating Temperature : -
Voltage Rating : -
0
133 in stock

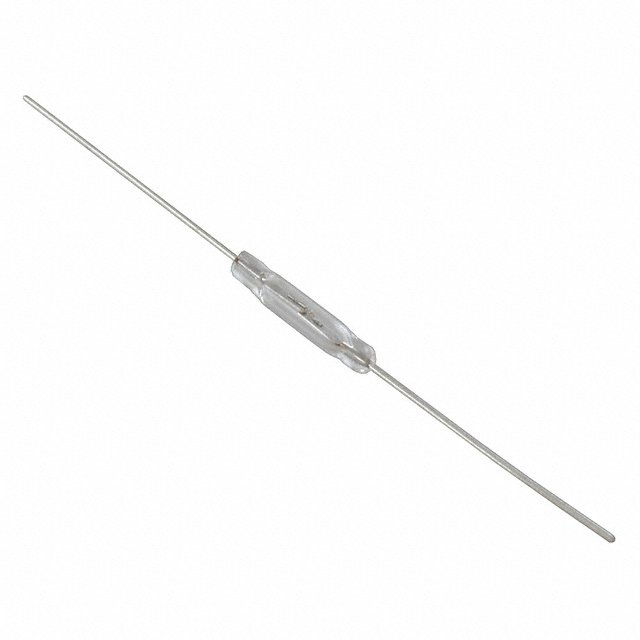

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP501
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 7 ~ 30AT
Release Range : 4 ~ 9AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.500" L (2.30mm x 12.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP501
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 7 ~ 30AT
Release Range : 4 ~ 9AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.500" L (2.30mm x 12.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP501
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 7 ~ 30AT
Release Range : 4 ~ 9AT
Current - Switching : 500mA (AC/DC)
Voltage - Switching AC : 200V
Voltage - Switching DC : 200V
Power - Rated : 10W
Operate Time : 0.5ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.500" L (2.30mm x 12.70mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.3pF
Current - Carry : 1A (AC/DC)
0
100 in stock

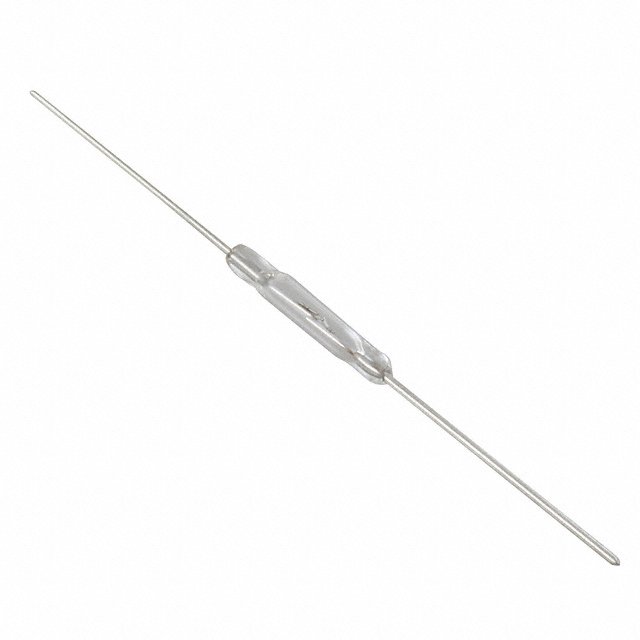

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP560
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 50AT
Release Range : 6 ~ 21AT
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 125V
Voltage - Switching DC : 100V
Power - Rated : 10VA
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP560
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 50AT
Release Range : 6 ~ 21AT
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 125V
Voltage - Switching DC : 100V
Power - Rated : 10VA
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock
