Standex-Meder Electronics
- Standex-Meder Electronics is a worldwide market leader in the design, development and manufacture of standard and custom electro-magnetic components, including magnetics products and reed switch-based solutions.
Our magnetic offerings include planar, Rogowski, current, and low- and high-frequency transformers and inductors. Our reed switch-based solutions include Meder, Standex and OKI brand reed switches, as well as a complete portfolio of reed relays, and a comprehensive array of fluid level, proximity, motion, water flow, HVAC condensate, hydraulic pressure differential, capacitive, conductive and inductive sensors.
Part Number
Manufacturer
Description
Unit Price
In Stock

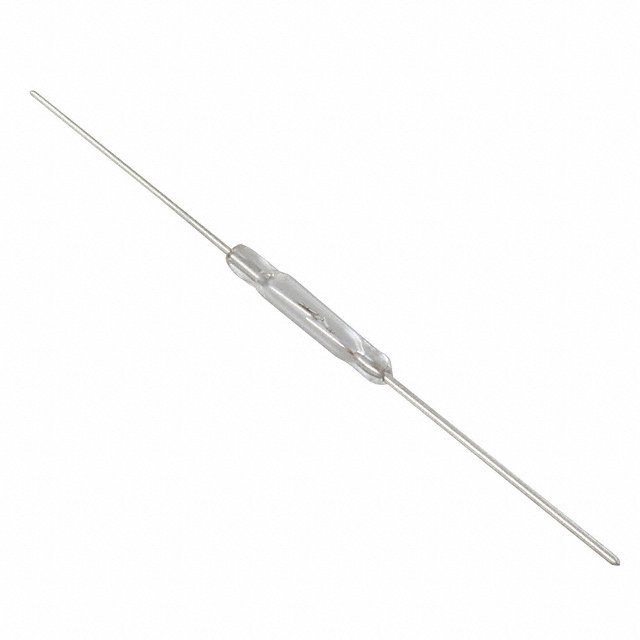

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GP560
Part Status : Obsolete
Type : Glass Body
Circuit : SPST-NO
Operate Range : 10 ~ 50AT
Release Range : 6 ~ 21AT
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 125V
Voltage - Switching DC : 100V
Power - Rated : 10VA
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1.5A (AC/DC)
0
100 in stock

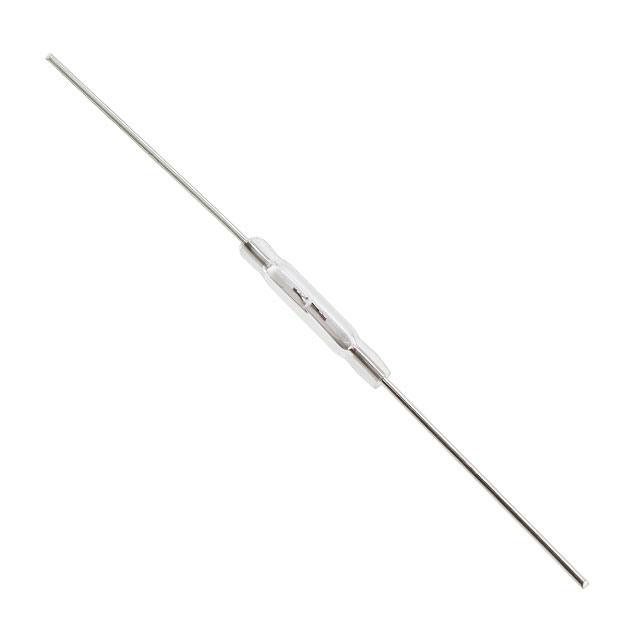

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : GR560
Part Status : Active
Type : Glass Body
Circuit : SPST-NO
Operate Range : 15 ~ 20AT
Release Range : 6 ~ 21AT
Current - Switching : 1A (AC/DC)
Voltage - Switching AC : 125V
Voltage - Switching DC : 100V
Power - Rated : 10VA
Operate Time : 0.6ms
Release Time : 0.1ms
Mounting Type : Through Hole
Termination Style : Axial
Length - Overall : 2.126" (54.00mm)
Size - Body : 0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Height Above Board : -
Operating Temperature : -40°C ~ 125°C
Capacitance : 0.2pF
Current - Carry : 1.5A (AC/DC)
0
8800 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : H
Part Status : Active
Coil Type : Non Latching
Coil Current : 34.3mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 10000VAC, 10000VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
0
22 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HE
Part Status : Active
Coil Type : Non Latching
Coil Current : 100mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 7500VAC, 7500VDC - Max
Turn On Voltage (Max) : 4 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HE
Part Status : Active
Coil Type : Non Latching
Coil Current : 46.2mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 10000VAC, 10000VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
461 in stock

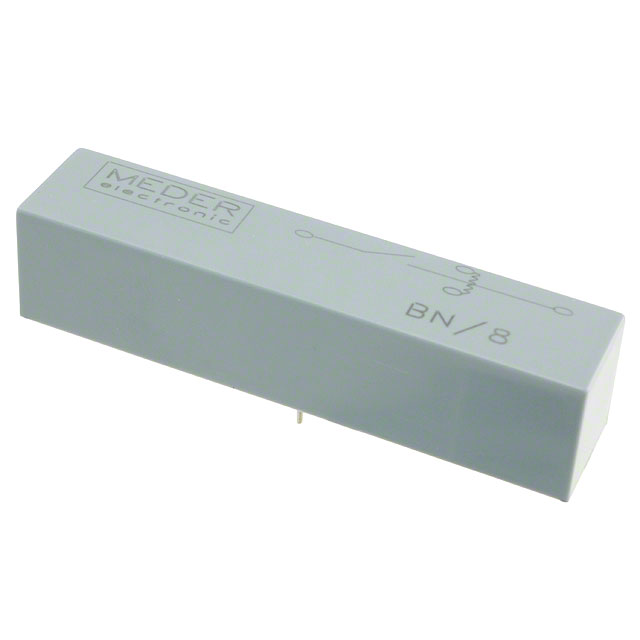

Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HE
Part Status : Active
Coil Type : Non Latching
Coil Current : 23.1mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 7500VAC, 7500VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2.5 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
57 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HE
Part Status : Obsolete
Coil Type : Non Latching
Coil Current : -
Coil Voltage : 24VDC
Contact Form : SPDT (1 Form C)
Contact Rating (Current) : 3A
Switching Voltage : 7500VAC, 7500VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 3.5 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HF
Part Status : Active
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 1.5A
Switching Voltage : 500VAC, 500VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 3.6 VDC
Operate Time : 3ms
Release Time : 1ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 85°C
0
100 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HI
Part Status : Active
Coil Type : Non Latching
Coil Current : 8.3mA
Coil Voltage : 5VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 500mA
Switching Voltage : 200VAC, 200VDC - Max
Turn On Voltage (Max) : 3.5 VDC
Turn Off Voltage (Min) : 0.75 VDC
Operate Time : 0.7ms
Release Time : 0.05ms
Features : Sealed - Fully
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
236 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HM
Part Status : Active
Coil Type : Non Latching
Coil Current : 80.0mA
Coil Voltage : 12VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 10000VAC, 10000VDC - Max
Turn On Voltage (Max) : 9 VDC
Turn Off Voltage (Min) : 1 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
173 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HM
Part Status : Active
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 3A
Switching Voltage : 7500VAC, 7500VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
47 in stock
Standex-Meder Electronics
Manufacturer : Standex-Meder Electronics
Packaging : Bulk
Series : HM
Part Status : Active
Coil Type : Non Latching
Coil Current : 24.0mA
Coil Voltage : 24VDC
Contact Form : SPST-NC (1 Form B)
Contact Rating (Current) : 3A
Switching Voltage : 7500VAC, 7500VDC - Max
Turn On Voltage (Max) : 18 VDC
Turn Off Voltage (Min) : 2 VDC
Operate Time : 3ms
Release Time : 1.5ms
Features : -
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -20°C ~ 70°C
0
100 in stock
