Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock

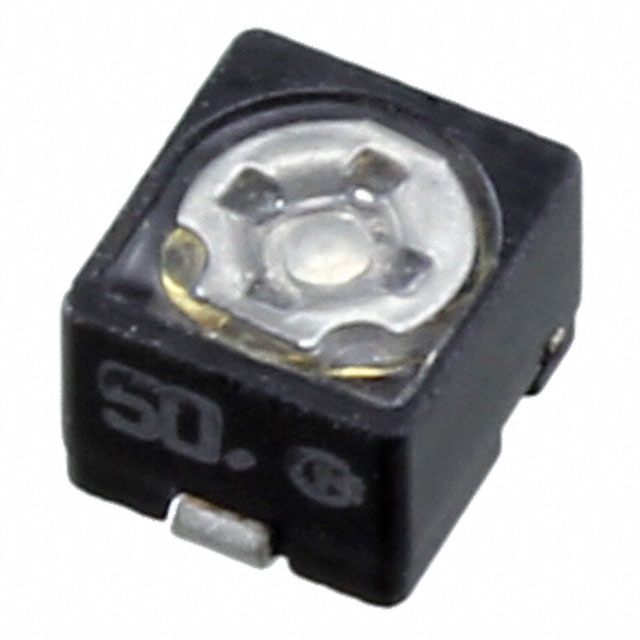

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : SURFTRIM® GKG
Part Status : Obsolete
Capacitance Range : 15 ~ 50pF
Adjustment Type : Top
Voltage - Rated : 100V
Dielectric Material : Ceramic
Q @ Freq : 300 @ 1MHz
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Features : General Purpose
0
42500 in stock

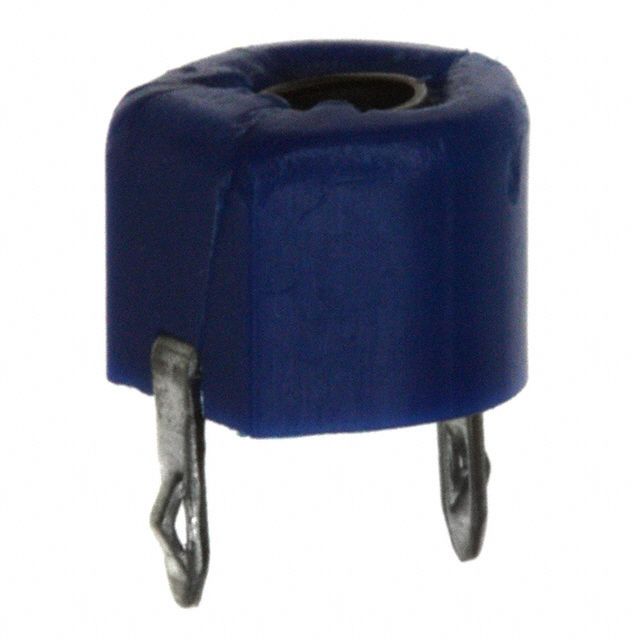

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SURFTRIM® GKG
Part Status : Active
Capacitance Range : 2 ~ 5pF
Adjustment Type : Top
Voltage - Rated : 100V
Dielectric Material : Ceramic
Q @ Freq : 300 @ 1MHz
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
2813 in stock

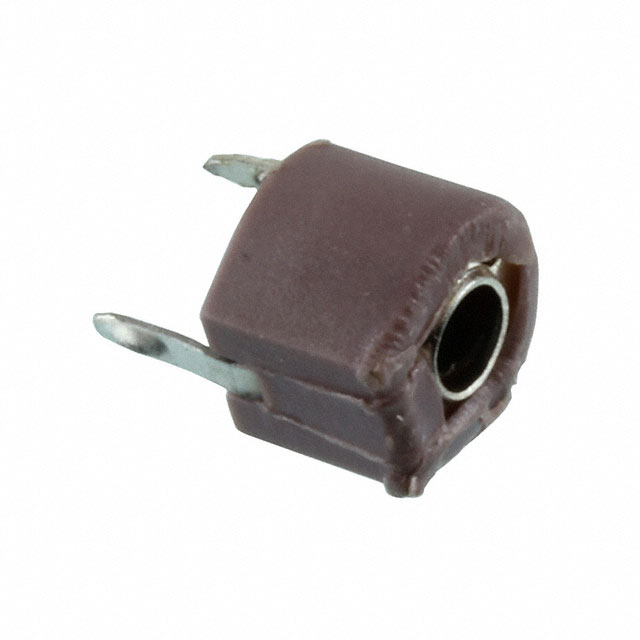

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : SURFTRIM® GKG
Part Status : Active
Capacitance Range : 12 ~ 60pF
Adjustment Type : Top
Voltage - Rated : 100V
Dielectric Material : Ceramic
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.236" Dia (6.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
10924 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SURFTRIM® GKG
Part Status : Obsolete
Capacitance Range : 2 ~ 6pF
Adjustment Type : -
Voltage - Rated : 100V
Dielectric Material : Ceramic
Q @ Freq : 500 @ 10MHz
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -25°C ~ 85°C
Mounting Type : -
Features : -
0
100 in stock

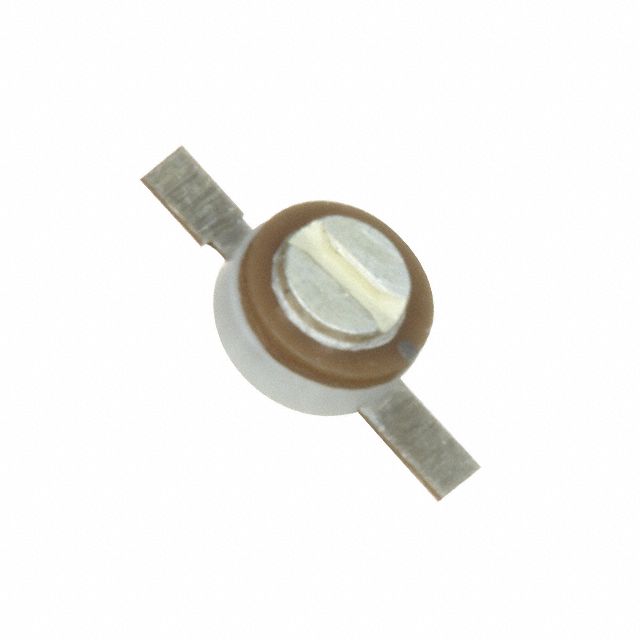

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GKH
Part Status : Active
Capacitance Range : 5 ~ 25pF
Adjustment Type : Top
Voltage - Rated : 25V
Dielectric Material : Ceramic
Q @ Freq : 100 @ 1MHz
Size / Dimension : 0.091" Dia (2.30mm)
Height - Seated (Max) : 0.047" (1.20mm)
Operating Temperature : -25°C ~ 85°C
Mounting Type : Surface Mount
Features : Low Profile
0
26 in stock

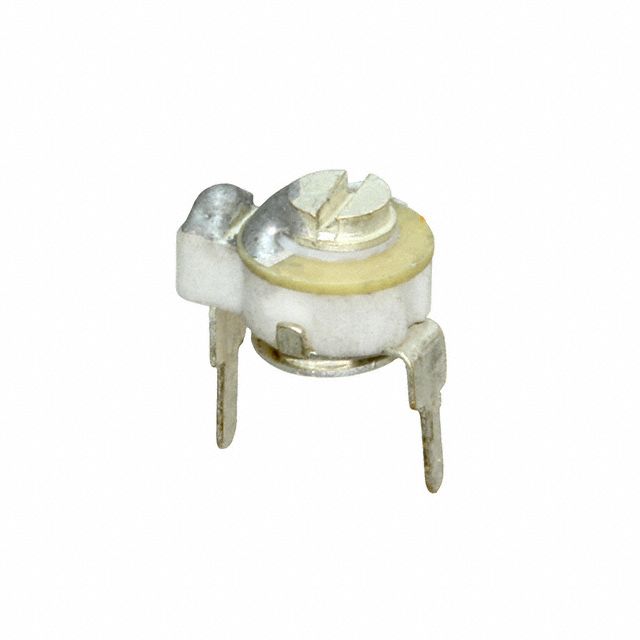

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GKU
Part Status : Active
Capacitance Range : 4 ~ 10pF
Adjustment Type : Top
Voltage - Rated : 250V
Dielectric Material : Ceramic
Q @ Freq : 300 @ 10MHz
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.209" (5.30mm)
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
55 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GKU
Part Status : Active
Capacitance Range : 7 ~ 30pF
Adjustment Type : Top
Voltage - Rated : 200V
Dielectric Material : Ceramic
Q @ Freq : 250 @ 10MHz
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.209" (5.30mm)
Operating Temperature : -30°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
1014 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GKU
Part Status : Active
Capacitance Range : 9 ~ 50pF
Adjustment Type : Top
Voltage - Rated : 100V
Dielectric Material : Ceramic
Q @ Freq : 200 @ 1MHz
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.209" (5.30mm)
Operating Temperature : -25°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : GKU
Part Status : Active
Capacitance Range : -
Adjustment Type : -
Voltage - Rated : -
Dielectric Material : Ceramic
Q @ Freq : -
Size / Dimension : -
Height - Seated (Max) : -
Operating Temperature : -
Mounting Type : -
Features : -
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : GLSJ
Part Status : Obsolete
Frequency Range : 20MHz ~ 750MHz
Impedance - Unbalanced/Balanced : -
Phase Difference : -
Insertion Loss (Max) : 0.8dB
Return Loss (Min) : -
Package / Case : 5-SMD, Gull Wing
Mounting Type : Surface Mount
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : -
Series : SURFCOIL® GLSL
Part Status : Active
Coupler Type : -
Frequency : -
Coupling Factor : 20dB
Applications : -
Insertion Loss : -
Power - Max : -
Isolation : -
Return Loss : -
Package / Case : Nonstandard
Supplier Device Package : -
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SURFCOIL® GLSW
Part Status : Active
Number of Coils : 2
Inductance - Connected In Parallel : -
Inductance - Connected In Series : -
Tolerance : -
Current Rating - Parallel : -
Current Rating - Series : -
Current Saturation - Parallel : -
Current Saturation - Series : -
DC Resistance (DCR) - Parallel : -
DC Resistance (DCR) - Series : -
Shielding : Unshielded
Ratings : -
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : Nonstandard, 5 Lead
Size / Dimension : 0.177" L x 0.177" W (4.50mm x 4.50mm)
Height : 0.114" (2.90mm)
0
9393 in stock
