Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).

Part Number
Manufacturer
Description
Unit Price
In Stock

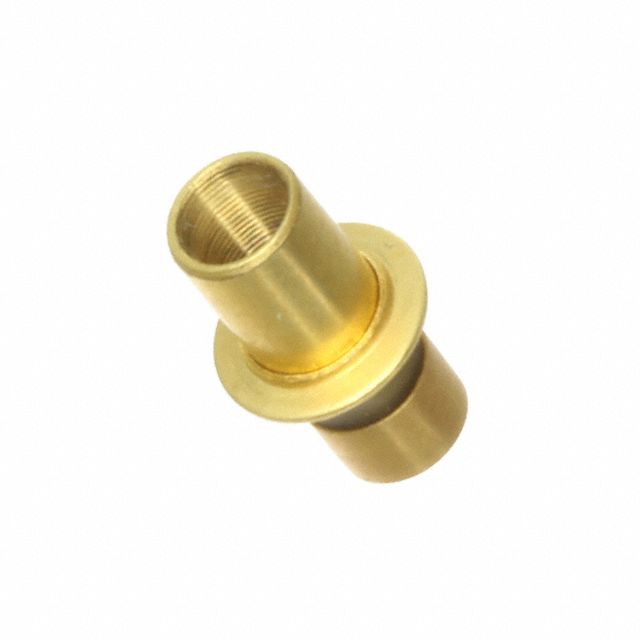

GNF4R500  GNF4R500

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.310" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
23 in stock

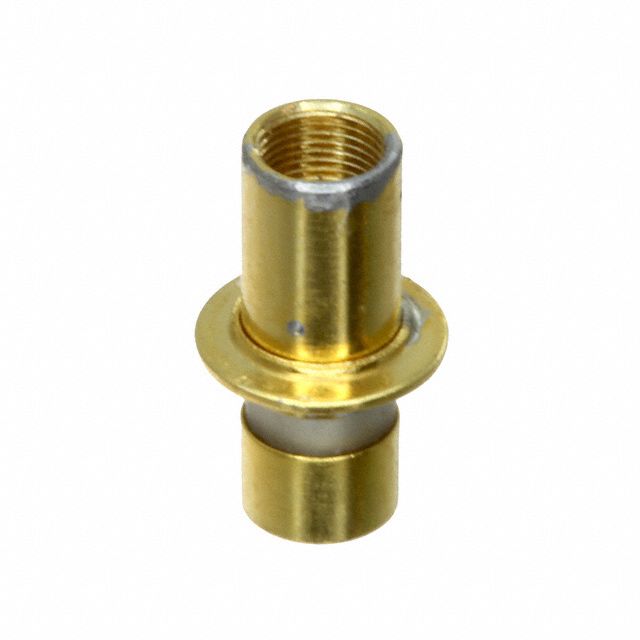

GNF4R550  GNF4R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.310" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
450 in stock

GNF8R000  GNF8R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 1000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.470" (12.00mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
32 in stock

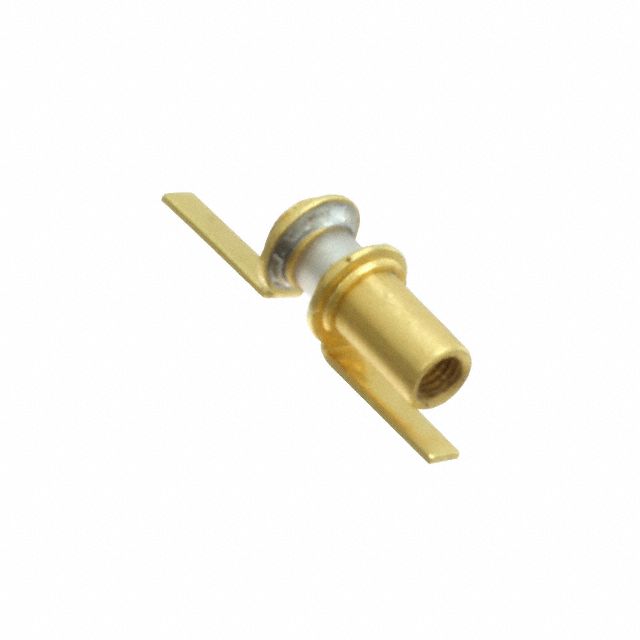

GNL1R250  GNL1R250

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.114" Dia (2.90mm)
Height - Seated (Max) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : General Purpose
0
50 in stock

GNN1R200  GNN1R200

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.075" Dia (1.90mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
20 in stock

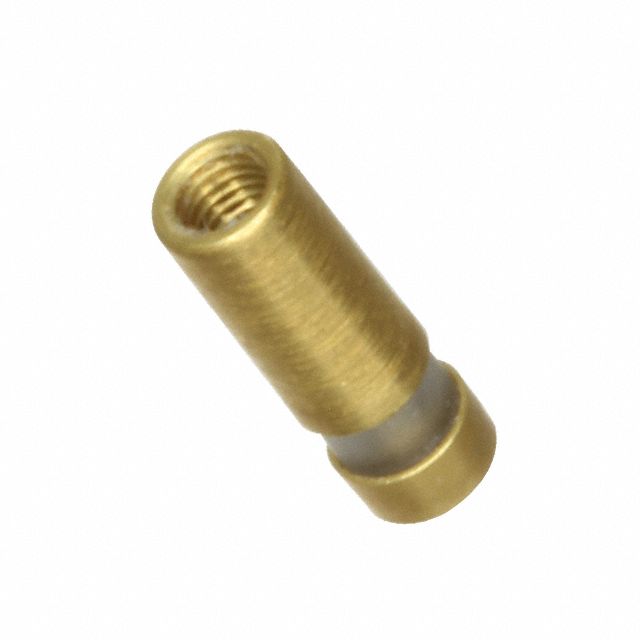

GNN1R250  GNN1R250

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.075" Dia (1.90mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
74 in stock

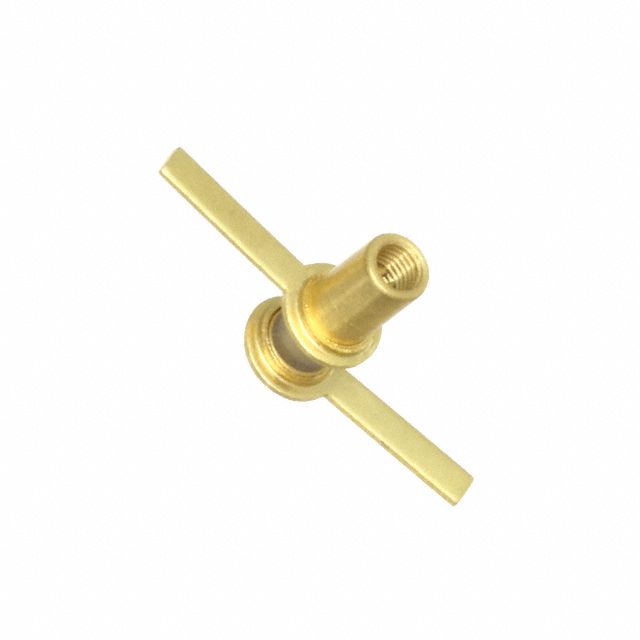

GNR1R200  GNR1R200

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.075" Dia (1.90mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
36 in stock

GNR2R500  GNR2R500

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
41 in stock

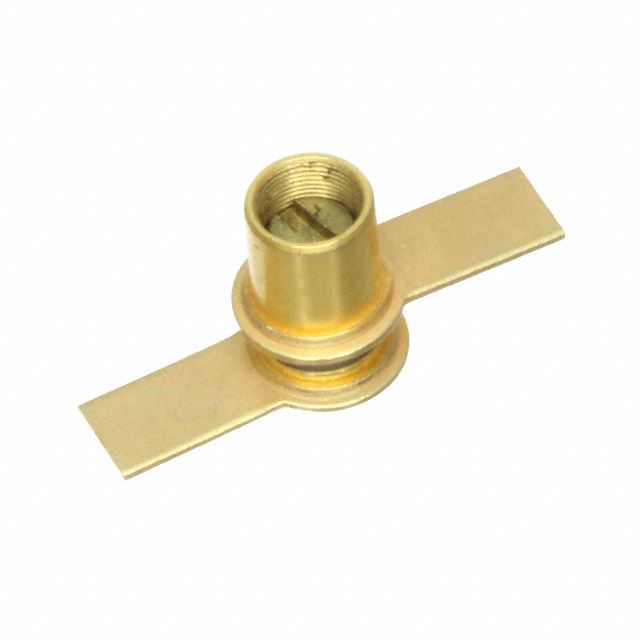

GNR2R550  GNR2R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : -
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
25 in stock

GNV1R250  GNV1R250

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.114" Dia (2.90mm)
Height - Seated (Max) : 0.228" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : General Purpose
0
28 in stock

GNV4R550  GNV4R550

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.6 ~ 4.5pF
Adjustment Type : Top
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 2000 @ 250MHz
Size / Dimension : 0.158" Dia (4.01mm)
Height - Seated (Max) : 0.311" (7.90mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : General Purpose
0
17 in stock

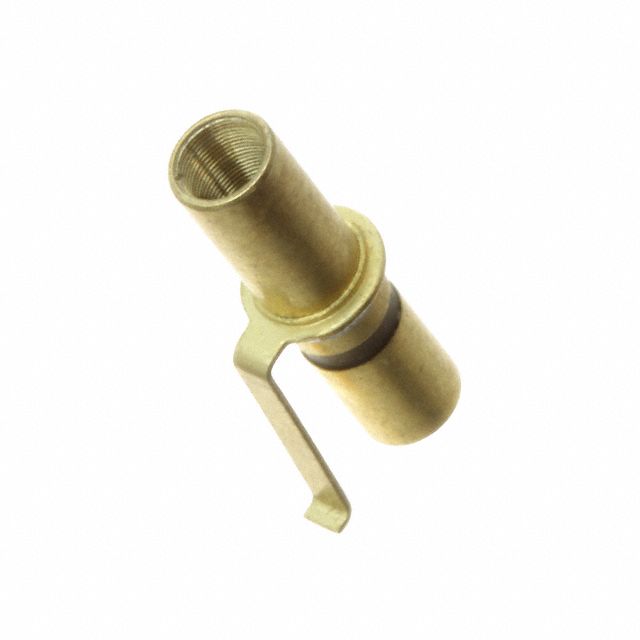

GNV8R000  GNV8R000

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 1000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.470" (12.00mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : General Purpose
0
100 in stock
