Sprague Goodman

- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.

Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).


Part Number

Manufacturer

Description

Unit Price

In Stock

GMA40700

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 140 ~ 580pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

52 in stock

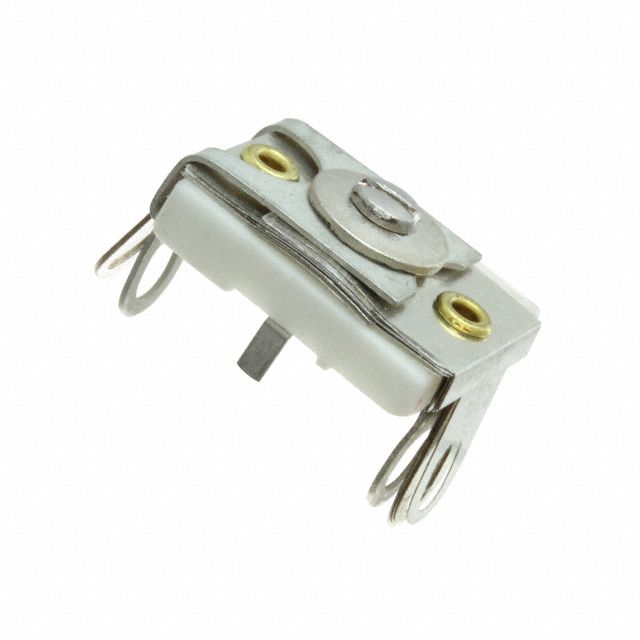

GMA40800

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 175 ~ 680pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

55 in stock

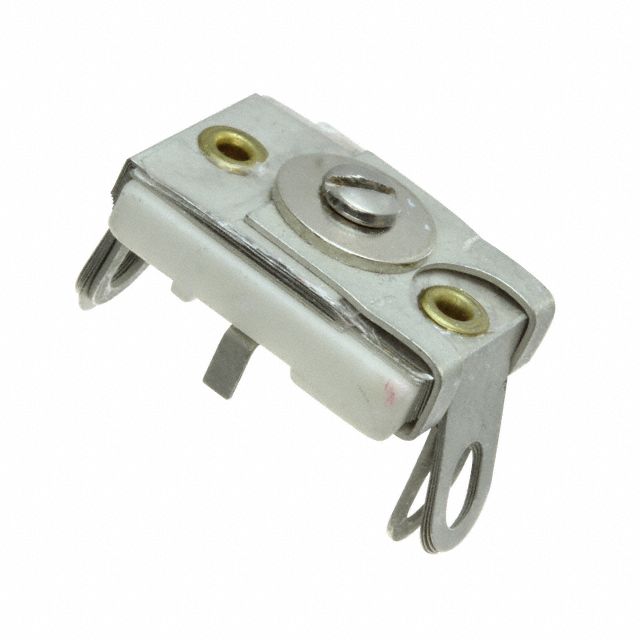

GMA41300

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 360 ~ 1200pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

114 in stock

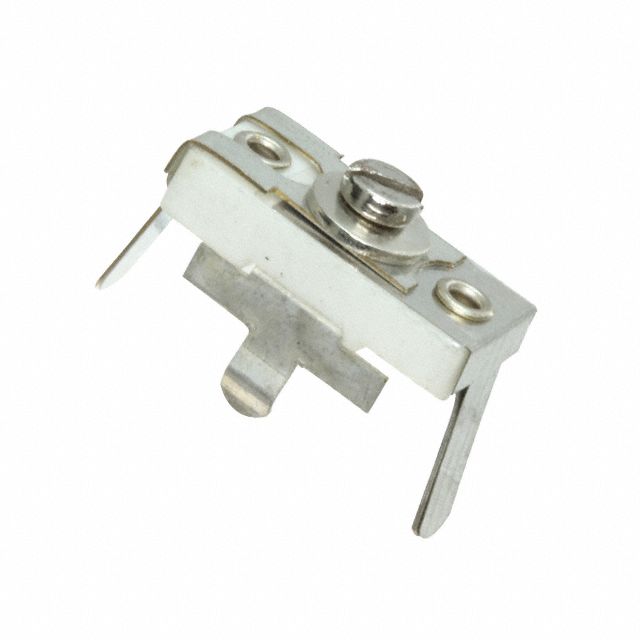

GMB30200

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 7 ~ 40pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

95 in stock

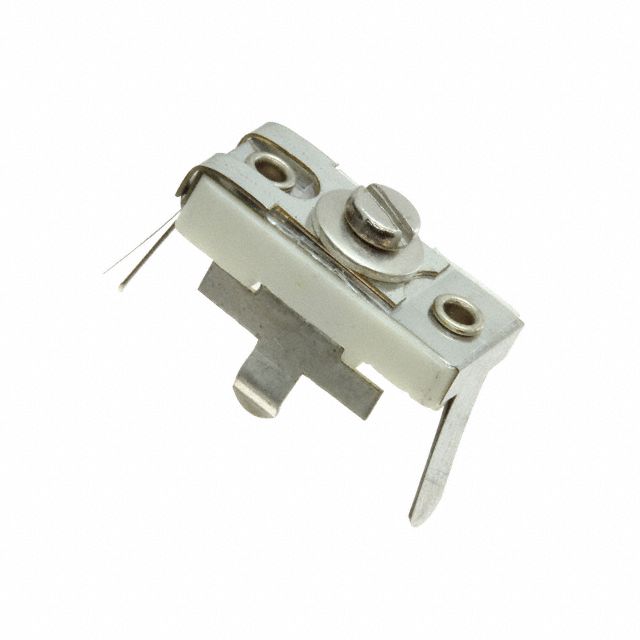

GMB30300

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 16 ~ 100pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

54 in stock

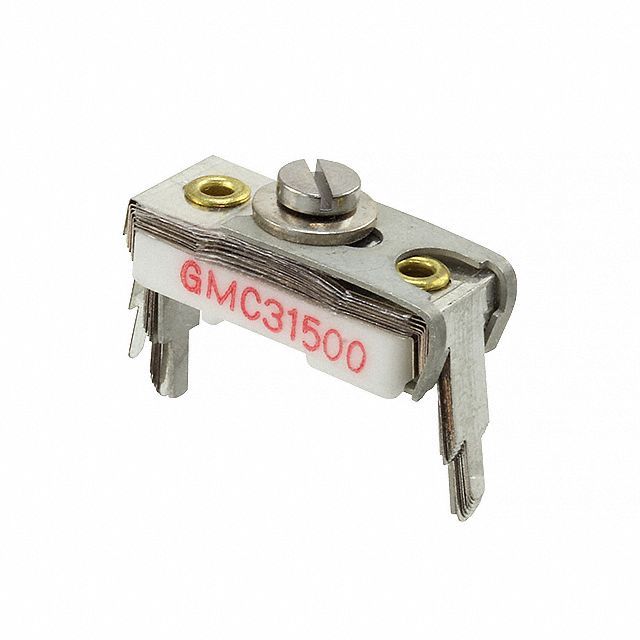

GMC31500

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 240 ~ 700pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

658 in stock

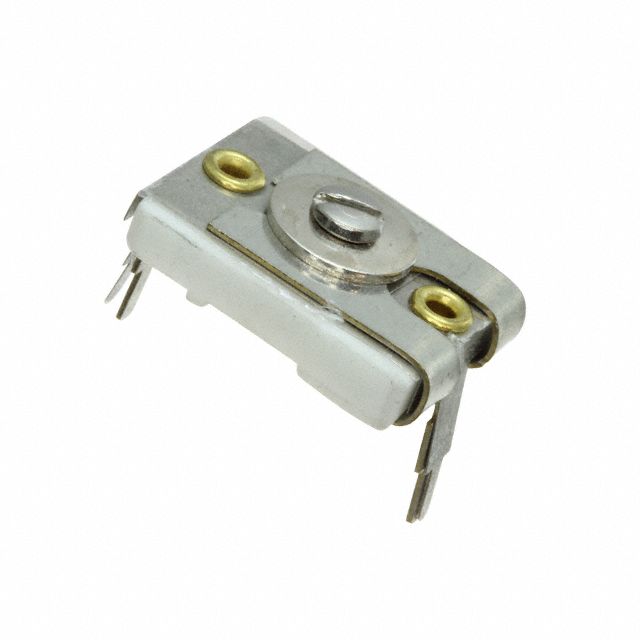

GMC40300

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 20 ~ 180pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

83 in stock

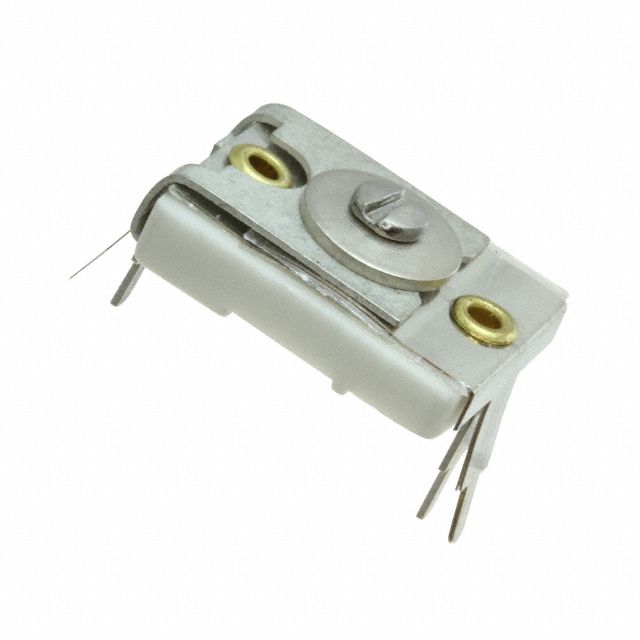

GMC40400

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 45 ~ 280pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

10 in stock

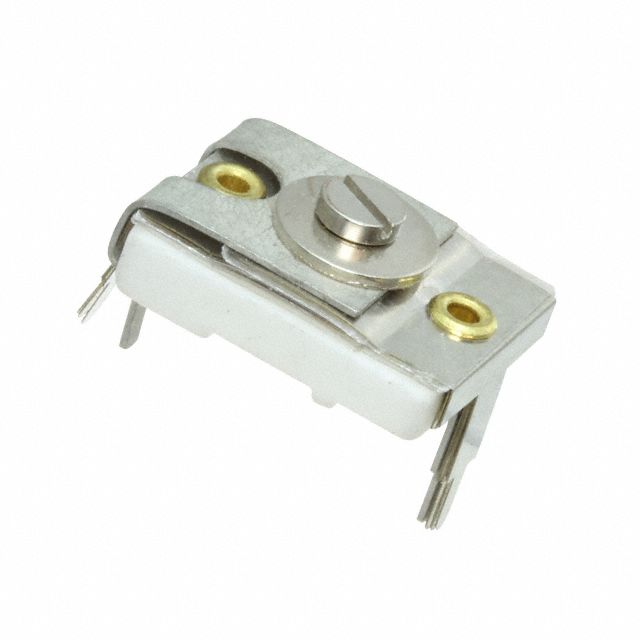

GMC40600

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : GM
Part Status : Active
Capacitance Range : 105 ~ 480pF
Adjustment Type : Top
Voltage - Rated : 175V
Dielectric Material : Mica
Q @ Freq : -
Size / Dimension : 0.752" L x 0.375" W (19.10mm x 9.53mm)
Height - Seated (Max) : 0.780" (19.80mm)
Operating Temperature : -35°C ~ 85°C
Mounting Type : Through Hole
Features : General Purpose

62 in stock

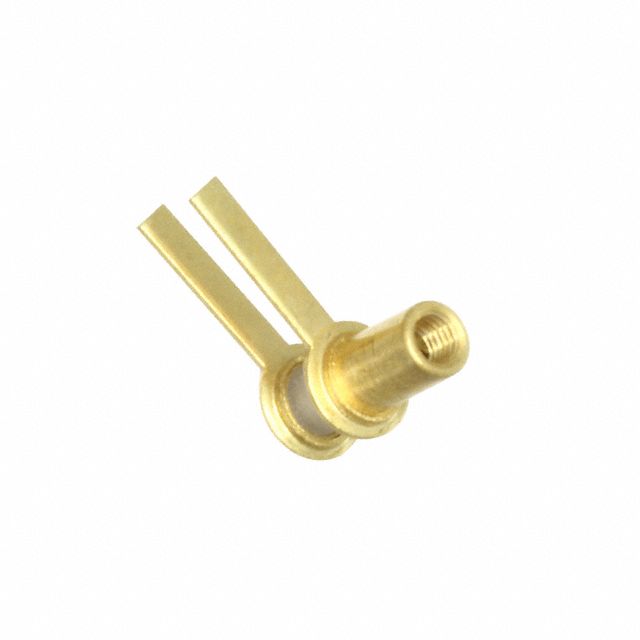

GNC1R250

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.3 ~ 1.2pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 4000 @ 250MHz
Size / Dimension : 0.075" Dia (1.90mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose

30 in stock

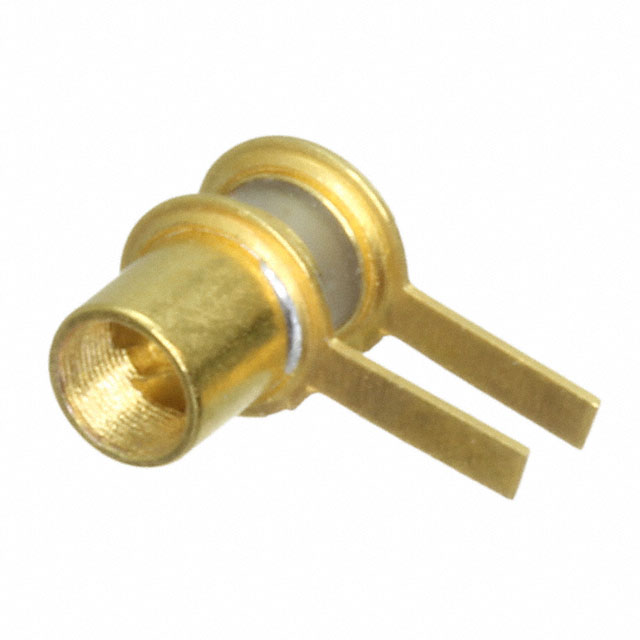

GNC2R500

Sprague Goodman

Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.4 ~ 2.5pF
Adjustment Type : Side
Voltage - Rated : 500V
Dielectric Material : Sapphire
Q @ Freq : 3000 @ 250MHz
Size / Dimension : 0.118" Dia (3.00mm)
Height - Seated (Max) : 0.230" (5.80mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose

61 in stock

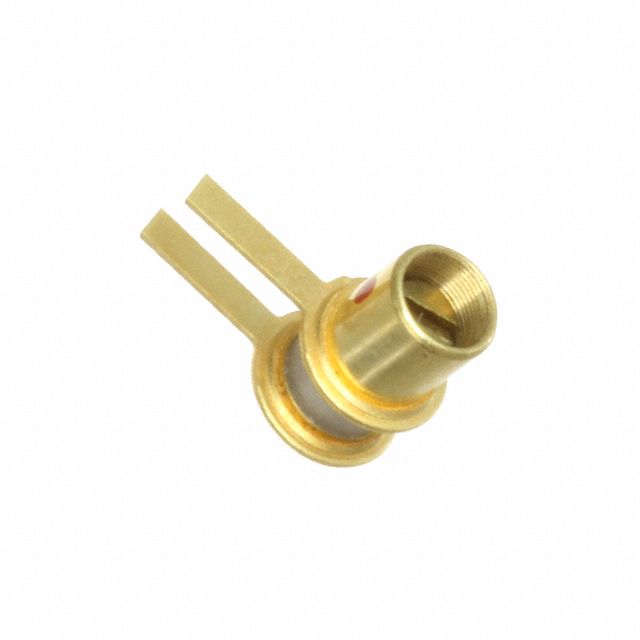

GNC2R550

Sprague Goodman

59 in stock
