Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock

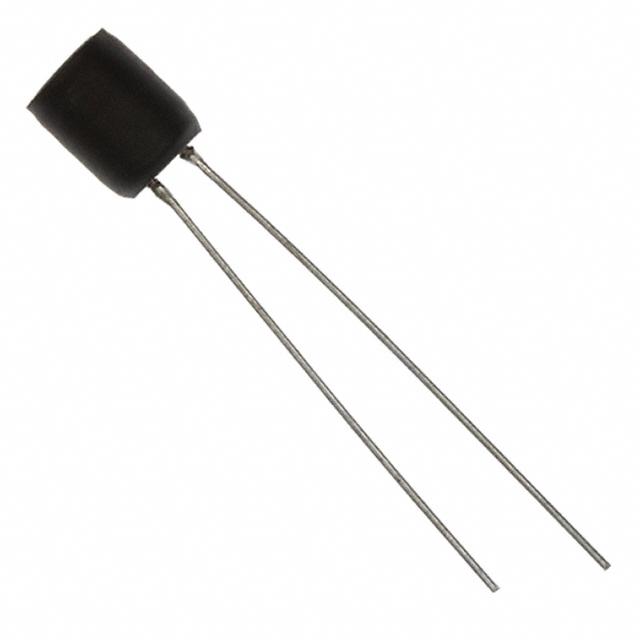

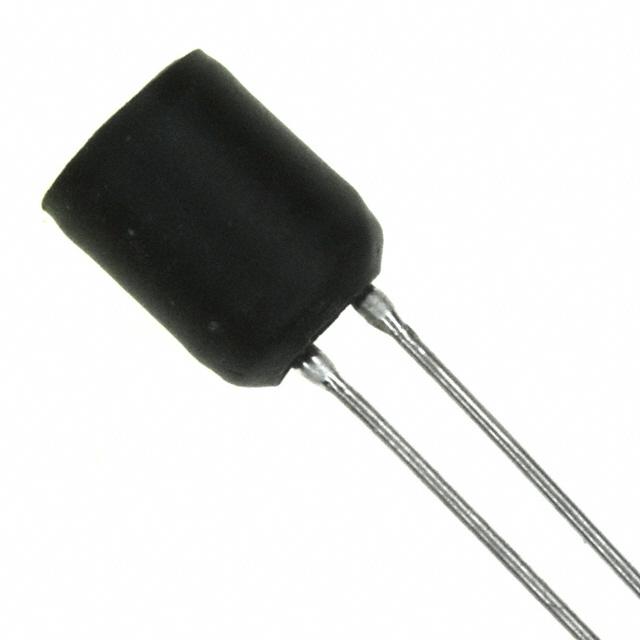

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.3mH
Tolerance : ±10%
Current Rating : 100mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 11 Ohm Max
Q @ Freq : 140 @ 150kHz
Frequency - Self Resonant : 1.2MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
13 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 3.3mH
Tolerance : ±10%
Current Rating : 120mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 10 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
345 in stock

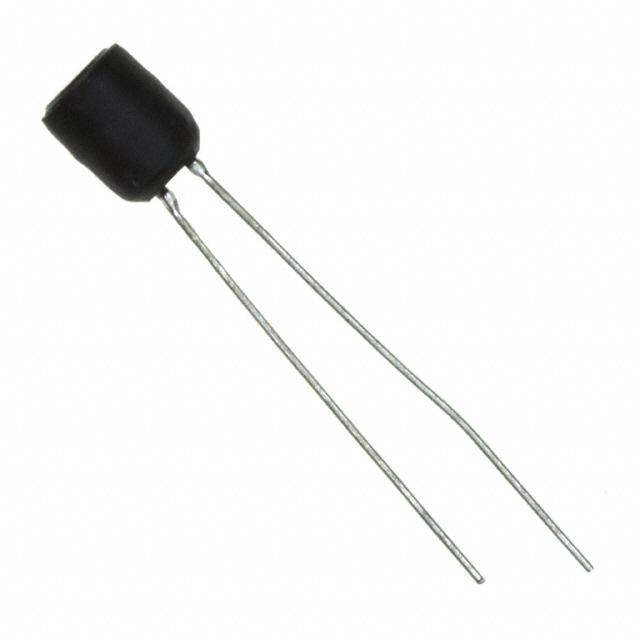

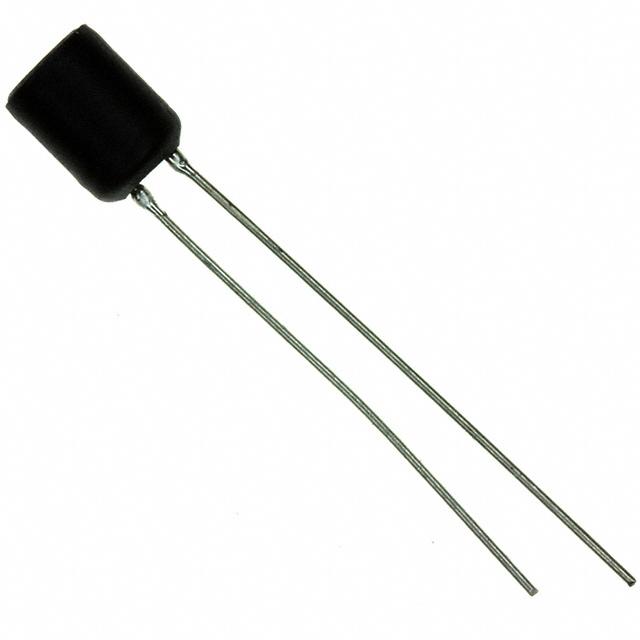

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33mH
Tolerance : ±10%
Current Rating : 36mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 118.8 Ohm Max
Q @ Freq : 95 @ 50kHz
Frequency - Self Resonant : 280kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
2996 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33mH
Tolerance : ±10%
Current Rating : 37mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 110 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
469 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47µH
Tolerance : ±10%
Current Rating : 770mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 220 mOhm Max
Q @ Freq : 50 @ 500kHz
Frequency - Self Resonant : 10.9MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
1858 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 470µH
Tolerance : ±10%
Current Rating : 310mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.65 Ohm Max
Q @ Freq : 110 @ 100kHz
Frequency - Self Resonant : 3.2MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
13873 in stock

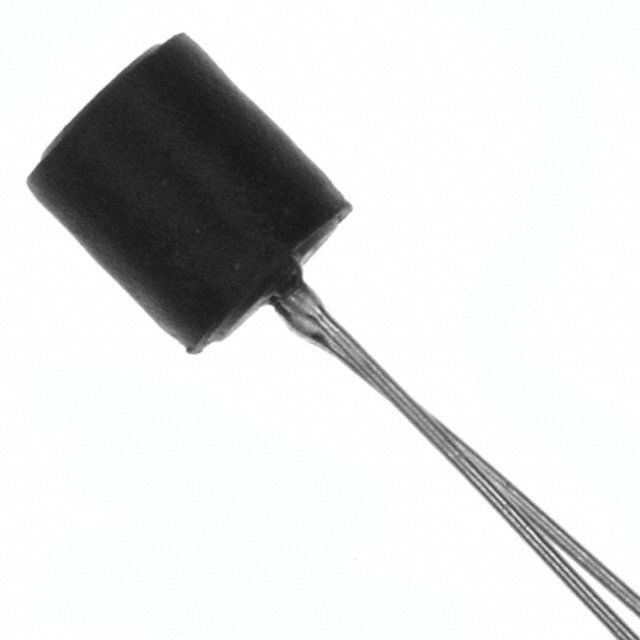

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.7mH
Tolerance : ±10%
Current Rating : 81mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 15 Ohm Max
Q @ Freq : 150 @ 150kHz
Frequency - Self Resonant : 950kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
14492 in stock

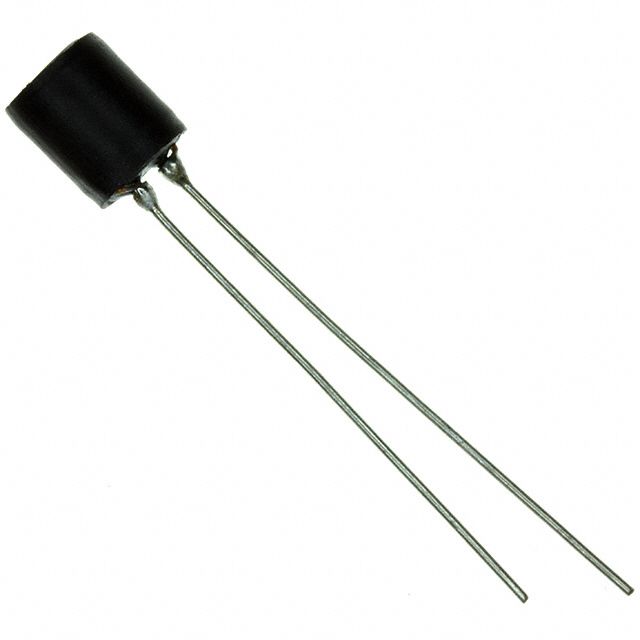

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47mH
Tolerance : ±10%
Current Rating : 27mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 169.4 Ohm Max
Q @ Freq : 90 @ 50kHz
Frequency - Self Resonant : 250kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
3849 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 47mH
Tolerance : ±10%
Current Rating : 33mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 154 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
13097 in stock

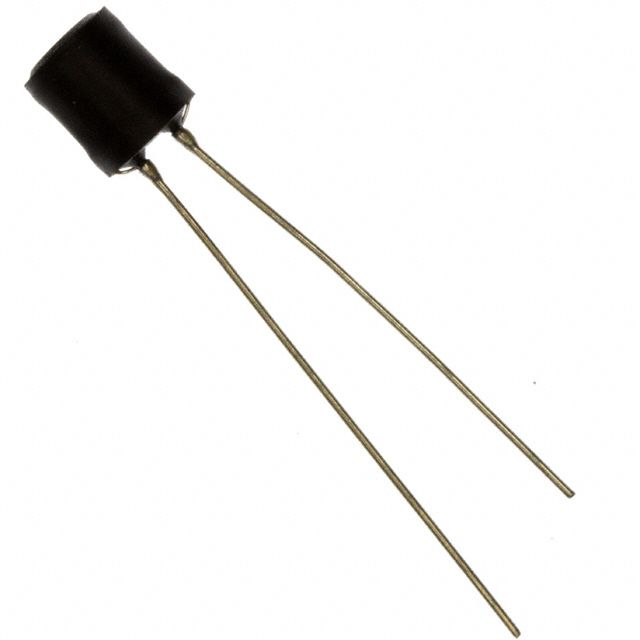

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 68µH
Tolerance : ±10%
Current Rating : 770mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 280 mOhm Max
Q @ Freq : 90 @ 100kHz
Frequency - Self Resonant : 8.7MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
307 in stock

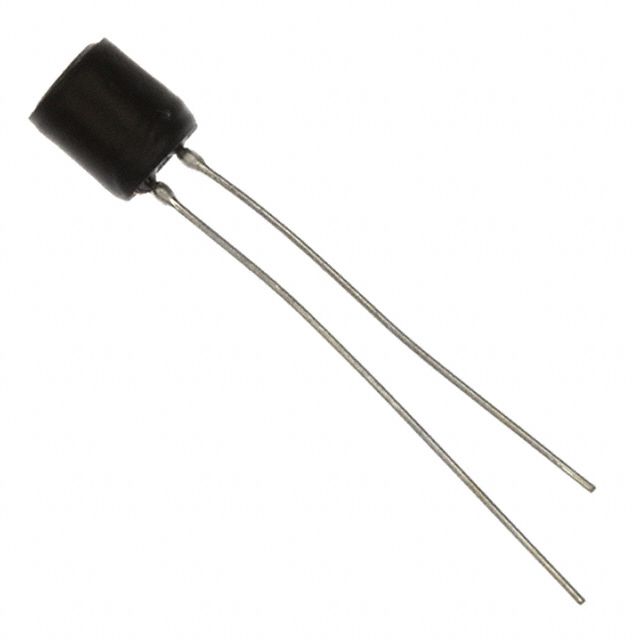

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 680µH
Tolerance : ±10%
Current Rating : 250mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.64 Ohm Max
Q @ Freq : 120 @ 100kHz
Frequency - Self Resonant : 2.5MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
4003 in stock

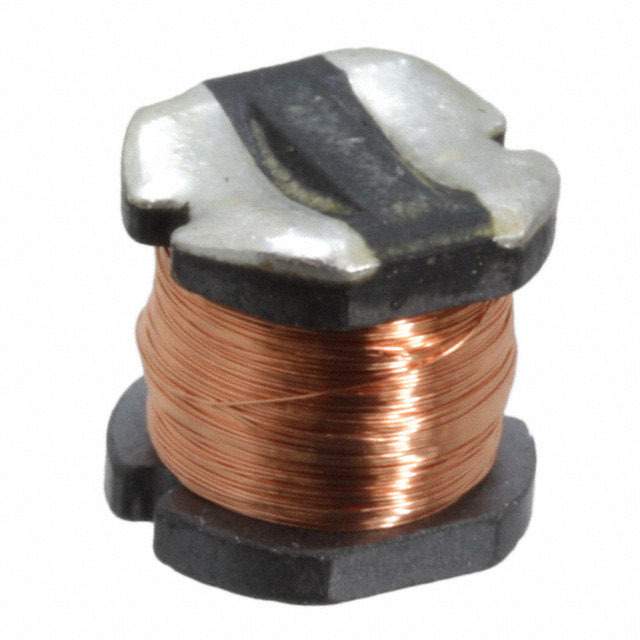

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Discontinued at
Type : Wirewound
Material - Core : -
Inductance : 680µH
Tolerance : ±10%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.64 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
193 in stock
