Murata Power Solutions

- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.

Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.

Part Number
Manufacturer
Description
Unit Price
In Stock

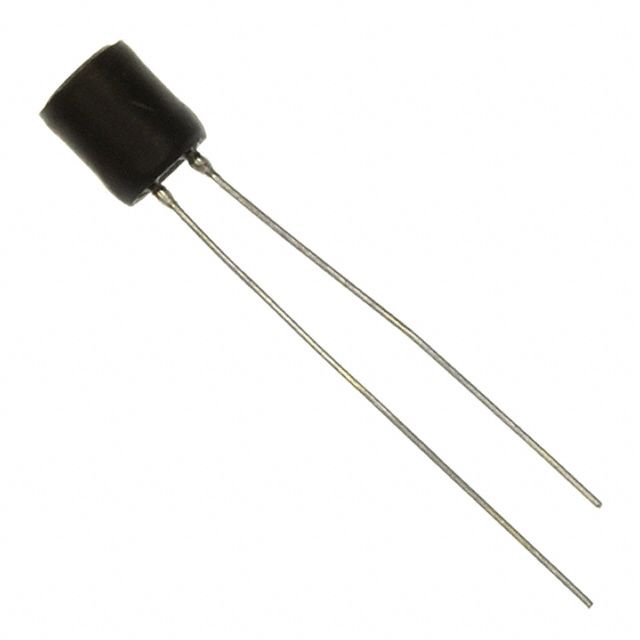

22R155C 22R155C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1.5mH
Tolerance : ±10%
Current Rating : 130mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 6.49 Ohm Max
Q @ Freq : 130 @ 100kHz
Frequency - Self Resonant : 1.9MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
6266 in stock

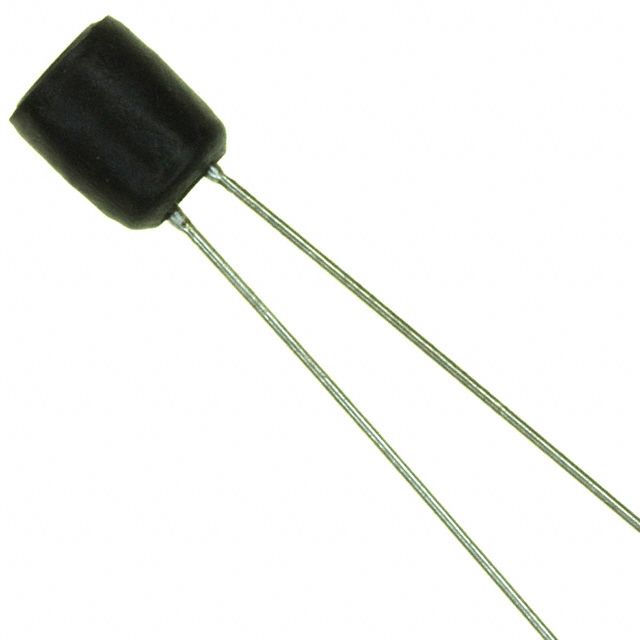

22R156C 22R156C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15mH
Tolerance : ±10%
Current Rating : 54mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 51.7 Ohm Max
Q @ Freq : 140 @ 150kHz
Frequency - Self Resonant : 510kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
885 in stock

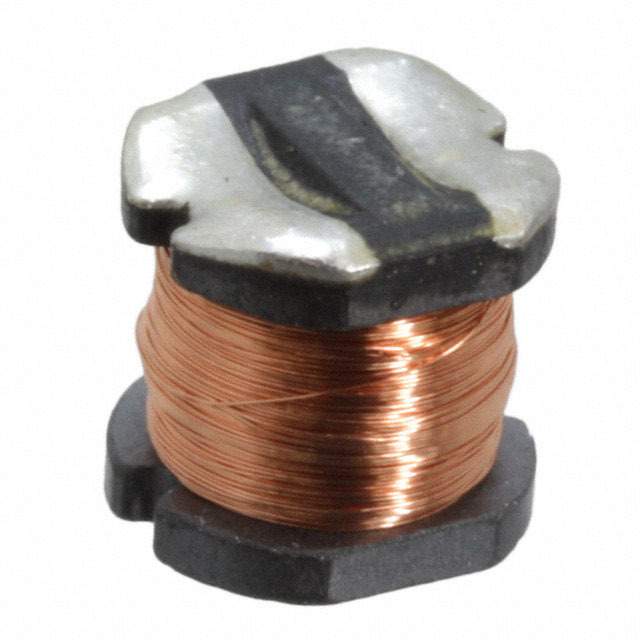

22R156MC 22R156MC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15mH
Tolerance : ±10%
Current Rating : 55mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 49.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
93 in stock

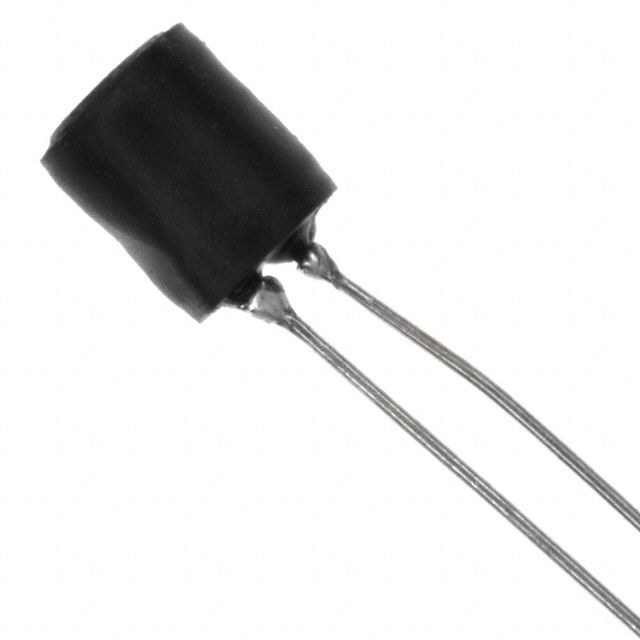

22R223C 22R223C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : ±10%
Current Rating : 1.08A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 90 mOhm Max
Q @ Freq : 50 @ 500kHz
Frequency - Self Resonant : 17MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
3277 in stock

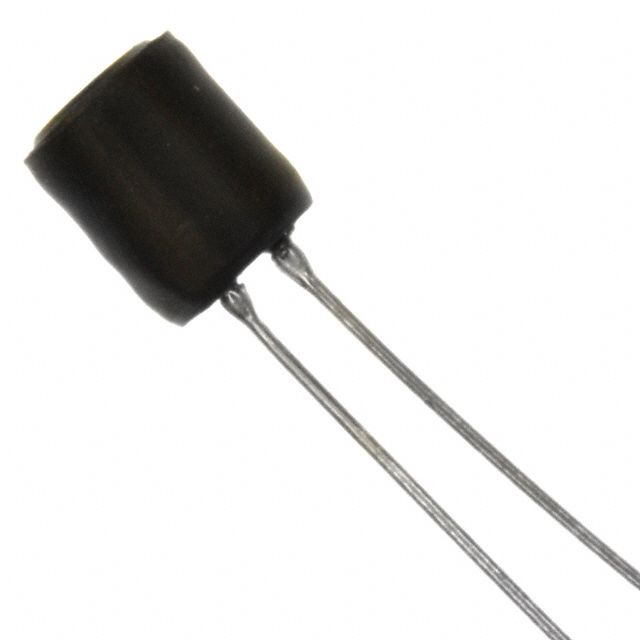

22R224C 22R224C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : ±10%
Current Rating : 430mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 830 mOhm Max
Q @ Freq : 100 @ 100kHz
Frequency - Self Resonant : 4.4MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
2686 in stock

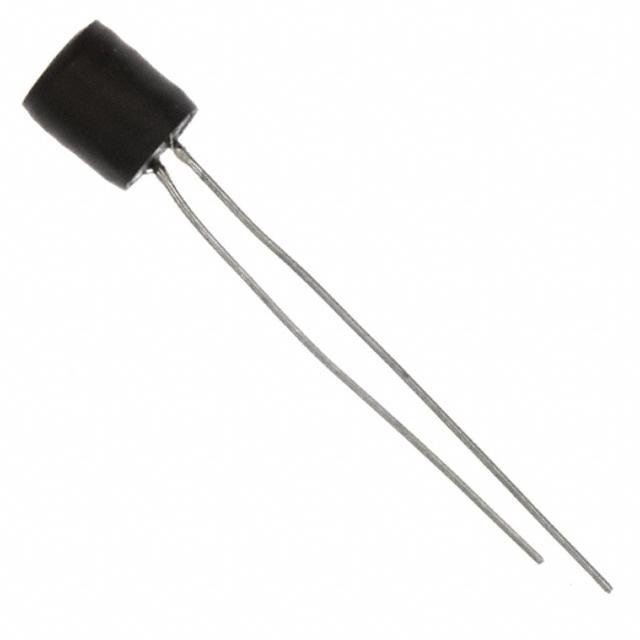

22R225C 22R225C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 2.2mH
Tolerance : ±10%
Current Rating : 110mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 8.58 Ohm Max
Q @ Freq : 90 @ 50kHz
Frequency - Self Resonant : 1.7MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
11329 in stock

22R225MC 22R225MC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 2.2mH
Tolerance : ±10%
Current Rating : 140mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 8.58 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
5736 in stock

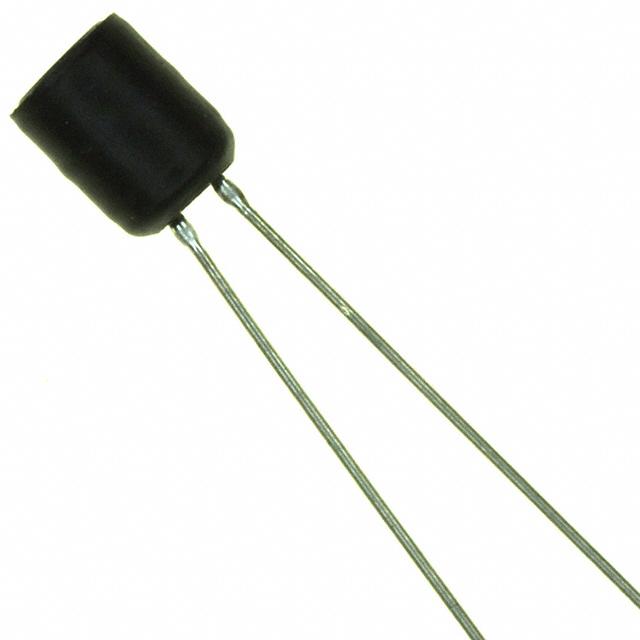

22R226C 22R226C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 22mH
Tolerance : ±10%
Current Rating : 45mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 82.5 Ohm Max
Q @ Freq : 100 @ 50kHz
Frequency - Self Resonant : 340kHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
16647 in stock

22R226MC 22R226MC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 22mH
Tolerance : ±10%
Current Rating : 44mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 82.5 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
1298 in stock

22R333C 22R333C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : ±10%
Current Rating : 900mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : 50 @ 500kHz
Frequency - Self Resonant : 11.4MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
4246 in stock

22R333MC 22R333MC

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 2200RM
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 33µH
Tolerance : ±10%
Current Rating : 1.31A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) : 0.311" (7.90mm)
0
489 in stock

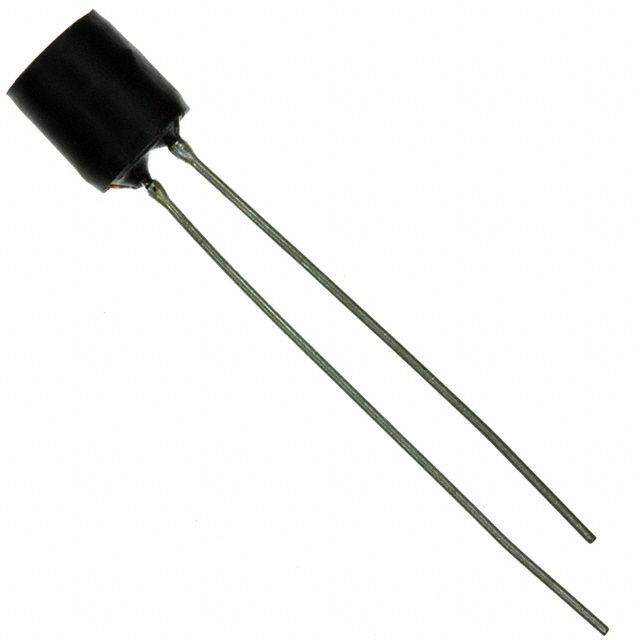

22R334C 22R334C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 2200R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 330µH
Tolerance : ±10%
Current Rating : 380mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.21 Ohm Max
Q @ Freq : 100 @ 100kHz
Frequency - Self Resonant : 3.7MHz
Ratings : -
Operating Temperature : -25°C ~ 70°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.256" Dia (6.50mm)
Height - Seated (Max) : 0.413" (10.50mm)
0
1979 in stock
