Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

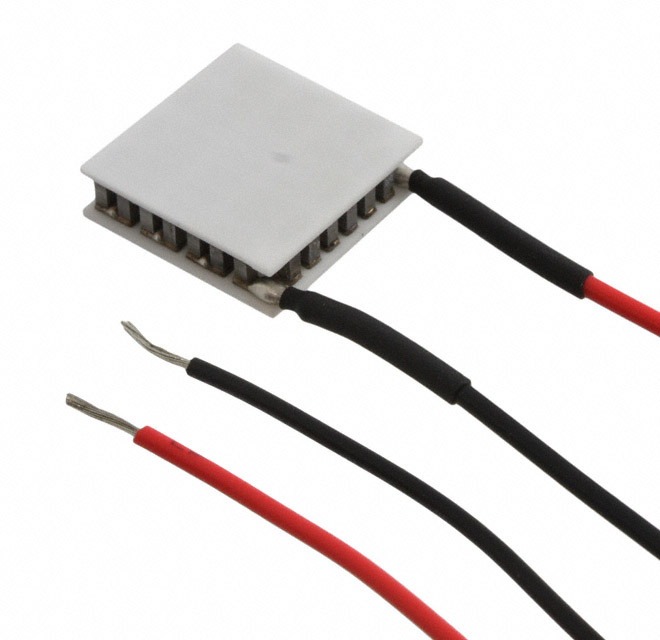

63604-511 63604-511

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.99mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.5A
Voltage - Max : 3.8V
Resistance : 1.29 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
278 in stock

63604-512 63604-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.99mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.5A
Voltage - Max : 3.8V
Resistance : 1.29 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
14 in stock

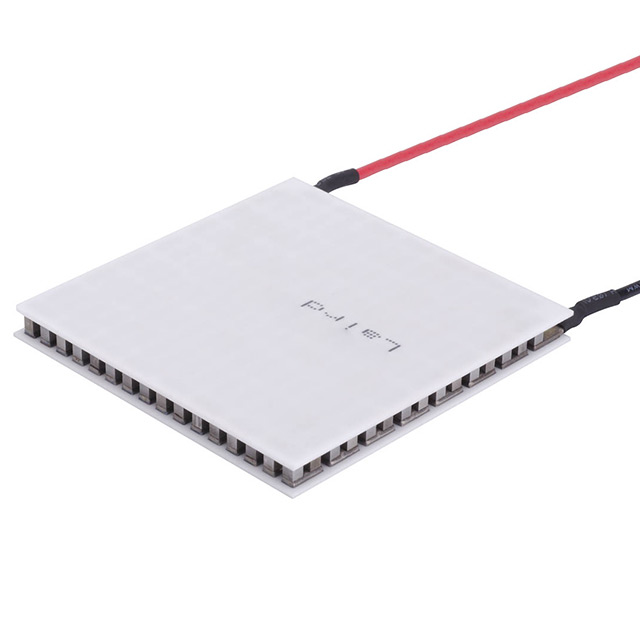

64975-502 64975-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 5.59mm
Qmax @ Th : 79.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.3A
Voltage - Max : 14.5V
Resistance : 1.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
155 in stock

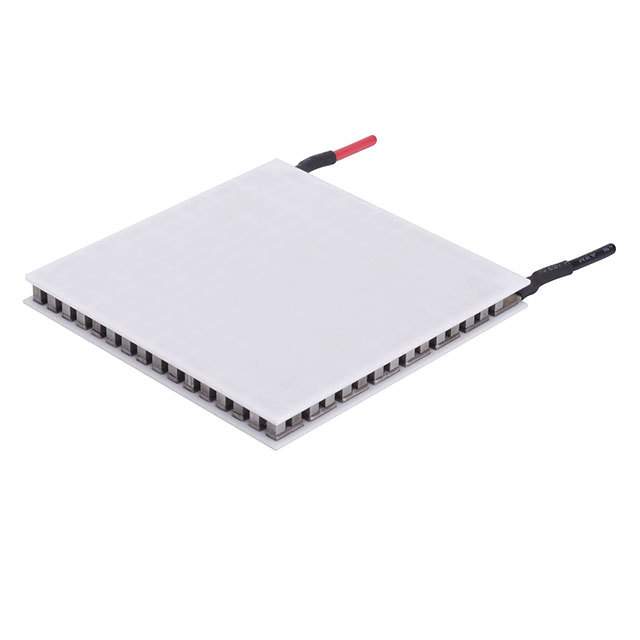

64975-503 64975-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 5.59mm
Qmax @ Th : 79.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.3A
Voltage - Max : 14.5V
Resistance : 1.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
54 in stock

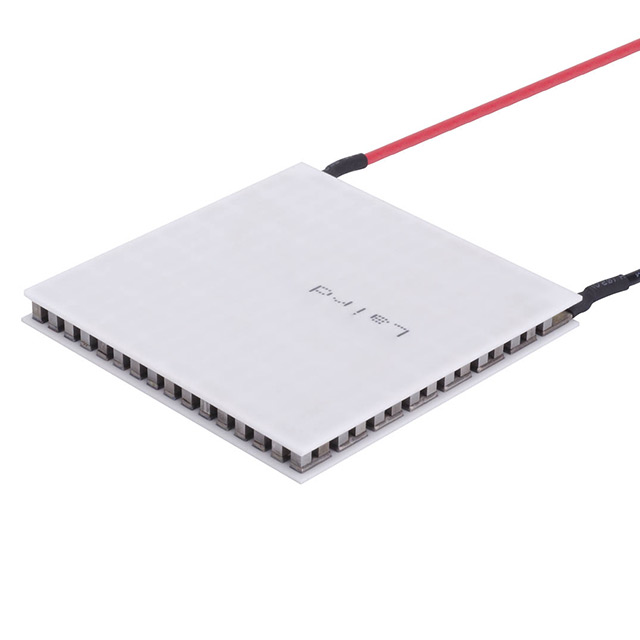

64979-501 64979-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 5.59mm
Qmax @ Th : 79.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.3A
Voltage - Max : 14.5V
Resistance : 1.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
85 in stock

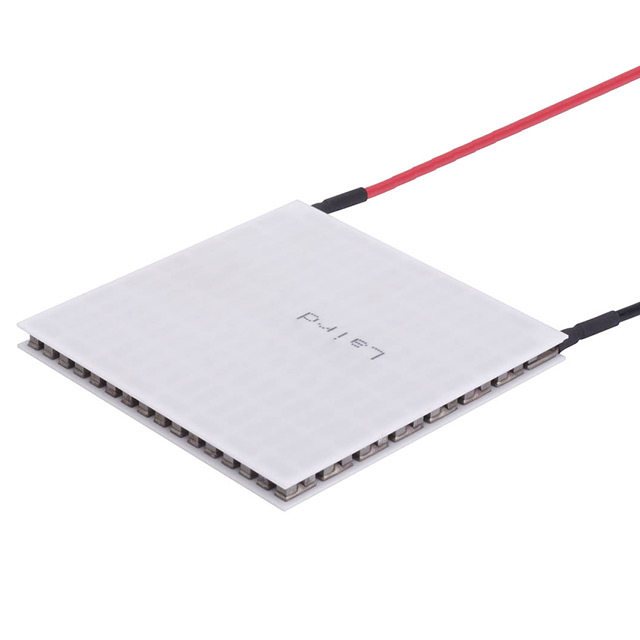

66100-501 66100-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 62.00mm x 4.57mm
Qmax @ Th : 122.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 14.5V
Resistance : 940 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
121 in stock

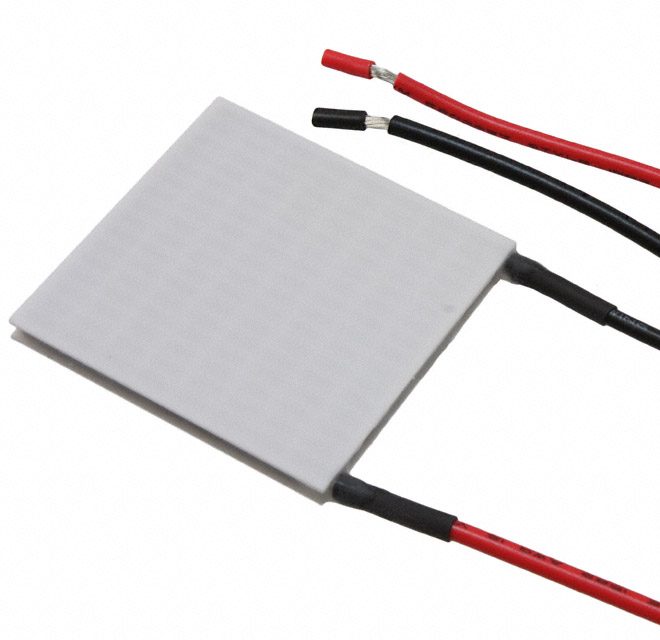

66101-500 66101-500

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
341 in stock

66156-505 66156-505

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : RH
Part Status : Active
Outline L x W x H : 55.12mm OD x 26.92mm ID x 3.81mm H
Qmax @ Th : 12.9W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 3.7V
Resistance : 570 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

66183-505 66183-505

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 9.50mm x 3.81mm
Qmax @ Th : 20.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 5.8V
Resistance : 900 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
115 in stock

66183-507 66183-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 62.00mm x 9.50mm x 3.81mm
Qmax @ Th : 20.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6A
Voltage - Max : 5.8V
Resistance : 900 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

66195-504 66195-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 24.64mm x 24.64mm x 3.40mm
Qmax @ Th : 18.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.1A
Voltage - Max : 14.4V
Resistance : 6.31 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
475 in stock

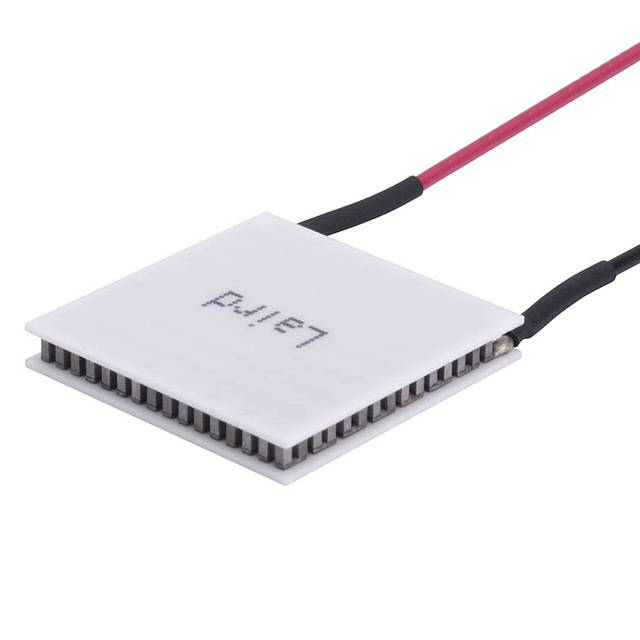

66195-505 66195-505

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 24.64mm x 24.64mm x 3.40mm
Qmax @ Th : 18.1W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.1A
Voltage - Max : 14.4V
Resistance : 6.31 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
304 in stock
