Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

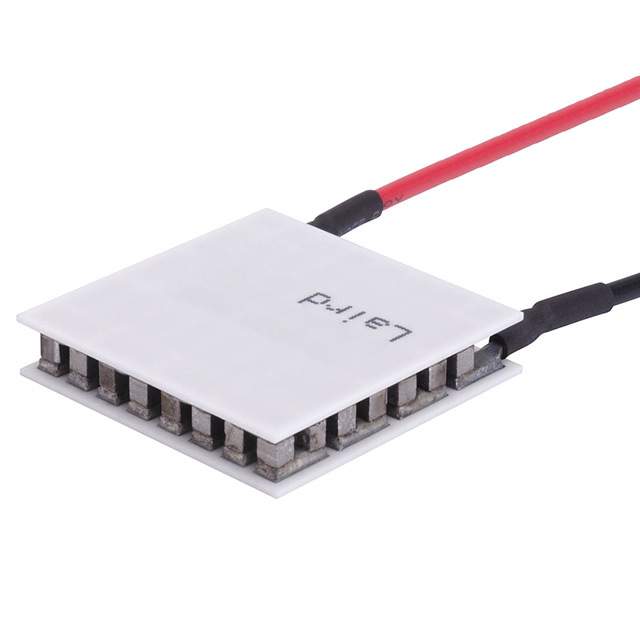

56995-501 56995-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 5.59mm
Qmax @ Th : 18.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.0A
Voltage - Max : 3.8V
Resistance : 350 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
22 in stock

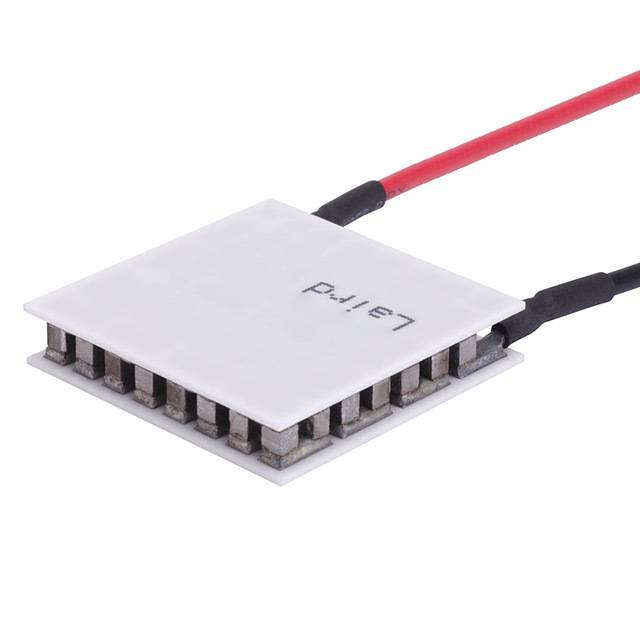

56995-503 56995-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 5.59mm
Qmax @ Th : 18.8W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.0A
Voltage - Max : 3.8V
Resistance : 350 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
13 in stock

57040-500 57040-500

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 5.59mm
Qmax @ Th : 44.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 9.0A
Voltage - Max : 7.9V
Resistance : 810 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

57125-501 57125-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 4.57mm
Qmax @ Th : 29.3W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 14.0A
Voltage - Max : 3.5V
Resistance : 230 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
91 in stock

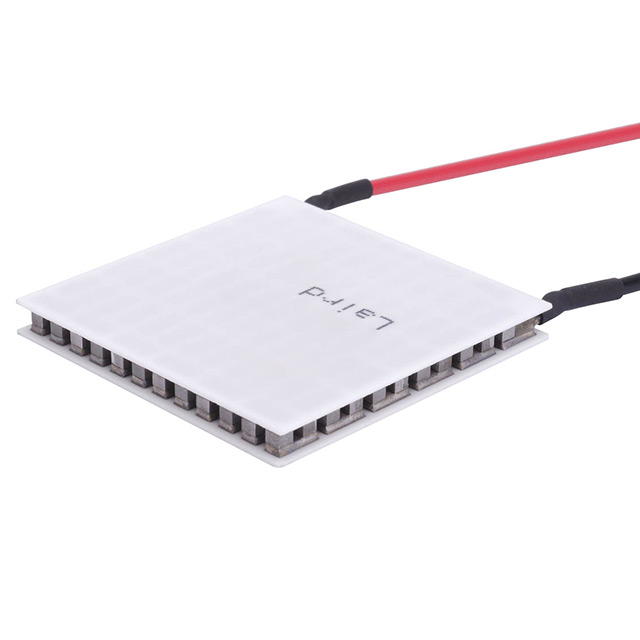

57180-501 57180-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 43.94mm x 43.94mm x 4.57mm
Qmax @ Th : 68.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.3A
Voltage - Max : 8.1V
Resistance : 530 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
16 in stock

58910-500 58910-500

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Obsolete
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
100 in stock

5CP040065-127-71-31-17-7L 5CP040065-127-71-31-17-7L

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Obsolete
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock

5CP055065-127-71-31-17-7L 5CP055065-127-71-31-17-7L

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Obsolete
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock

62910-510 62910-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 24.60mm x 24.60mm x 3.10mm
Qmax @ Th : 22.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.6A
Voltage - Max : 14.4V
Resistance : 5.10 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
25 in stock

63205-501 63205-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.99mm
Qmax @ Th : 21.4W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 2.5A
Voltage - Max : 14.5V
Resistance : 5.30 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
8 in stock

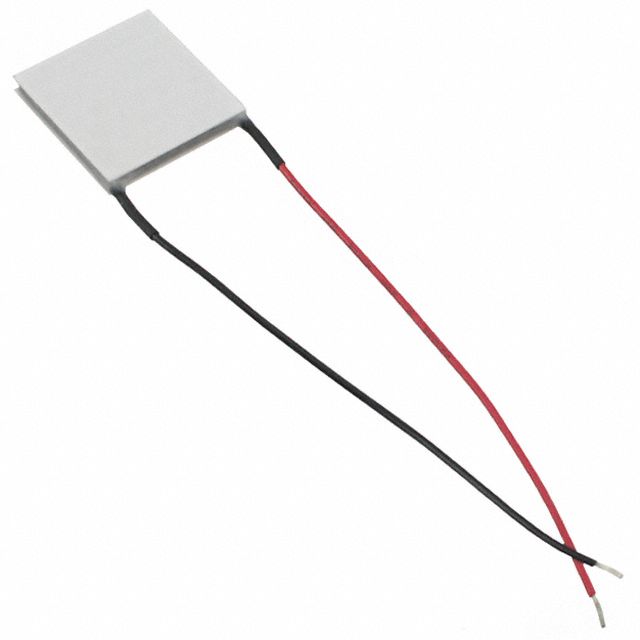

63205-510 63205-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.99mm
Qmax @ Th : 21.4W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 2.5A
Voltage - Max : 14.5V
Resistance : 5.30 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
15 in stock

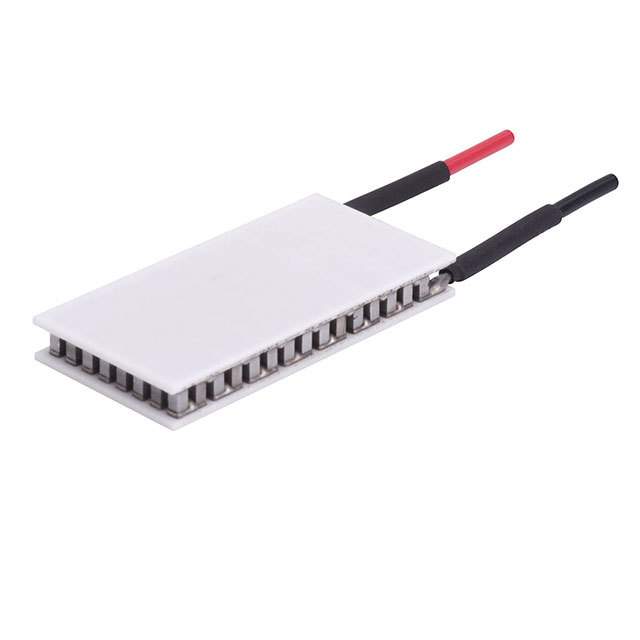

63595-501 63595-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
20 in stock
