- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

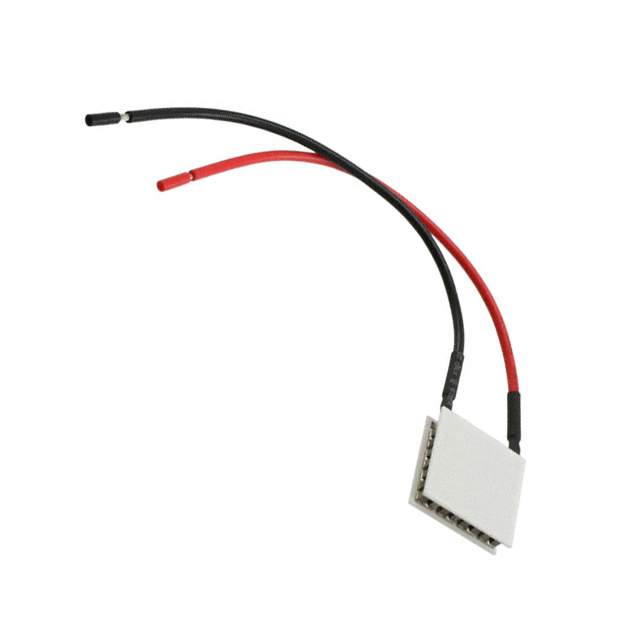

56550-501 56550-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 19.81mm x 19.81mm x 4.70mm
Qmax @ Th : 8.2W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 3.8V
Resistance : 840 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
30 in stock

56590-502 56590-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 4.70mm
Qmax @ Th : 18.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 8.6V
Resistance : 1.92 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
1411 in stock

56610-502 56610-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 4.70mm
Qmax @ Th : 33.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 14.4V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
21 in stock

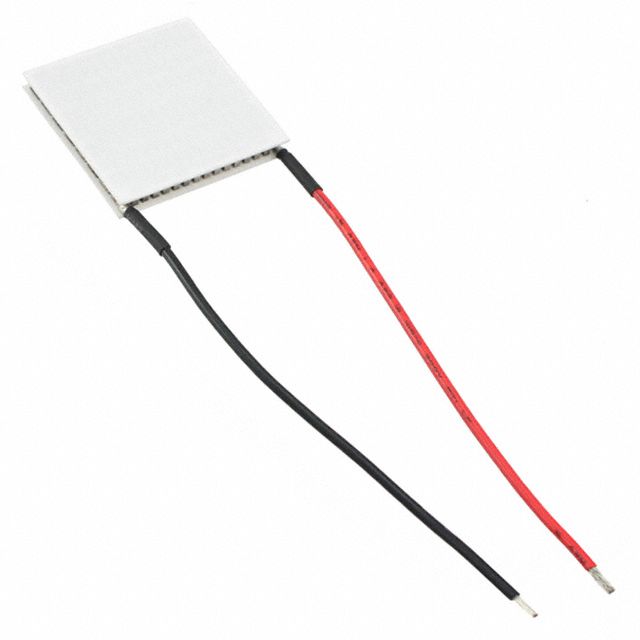

56610-510 56610-510

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 4.70mm
Qmax @ Th : 33.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 14.4V
Resistance : 3.44 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
99 in stock

56740-502 56740-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.81mm
Qmax @ Th : 28.7W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 8.1V
Resistance : 1.26 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
33 in stock

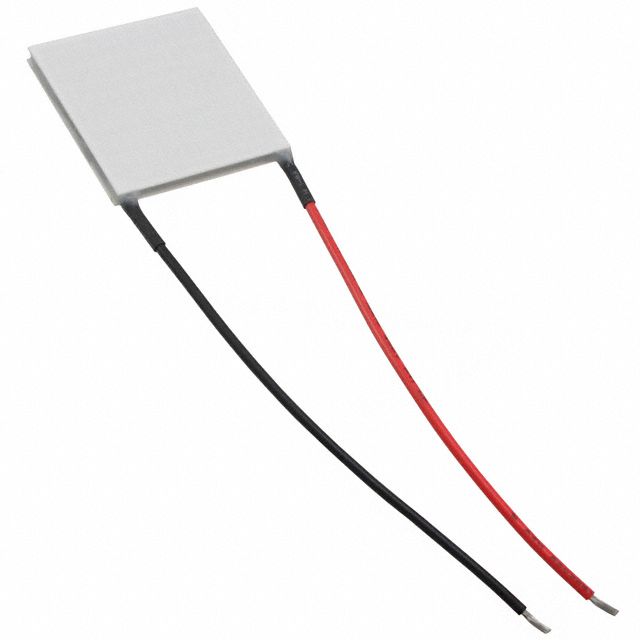

56760-500 56760-500

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
25 in stock

56760-505 56760-505

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
102 in stock

56760-512 56760-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.90mm x 39.90mm x 3.81mm
Qmax @ Th : 51.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6A
Voltage - Max : 14.5V
Resistance : 2.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

56850-501 56850-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
20 in stock

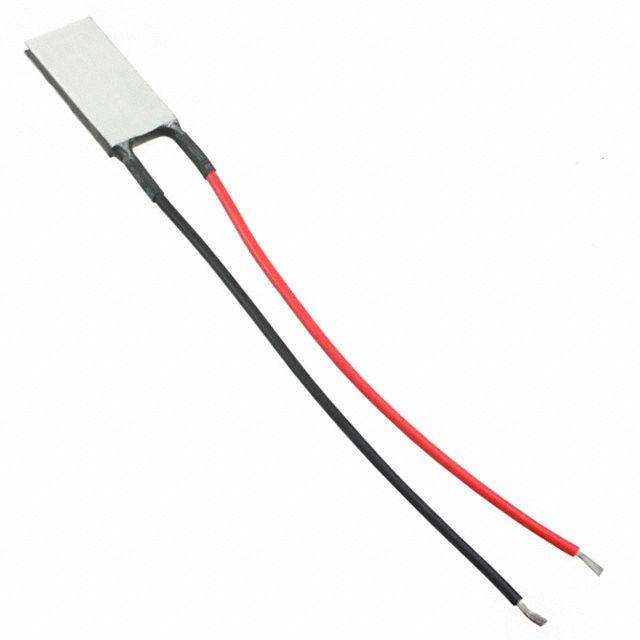

56860-501 56860-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 14.86mm x 3.33mm
Qmax @ Th : 20.4W @ 25°C
Delta Tmax @ Th : 68°C @ 25°C
Current - Max : 8.7A
Voltage - Max : 4.0V
Resistance : 430 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
48 in stock

56890-503 56890-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 29.72mm x 29.72mm x 3.33mm
Qmax @ Th : 41.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 8.0V
Resistance : 870 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
200 in stock

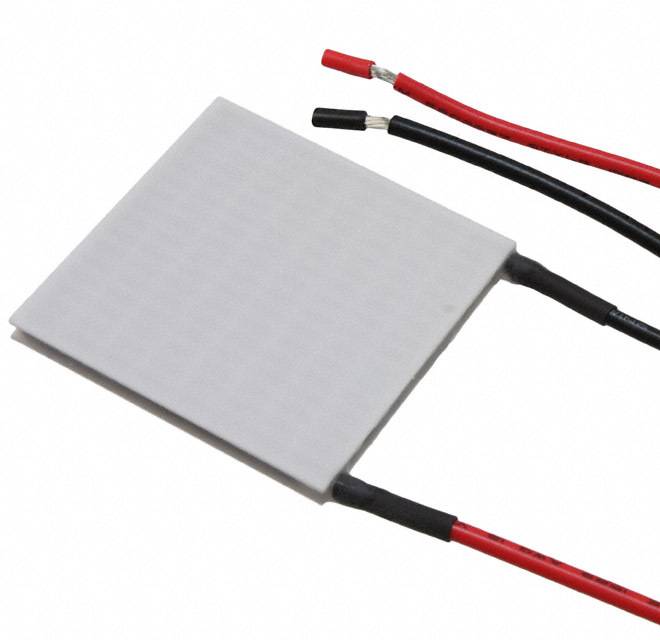

56910-502 56910-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.33mm
Qmax @ Th : 72.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 14.5V
Resistance : 1.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
128 in stock
