- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

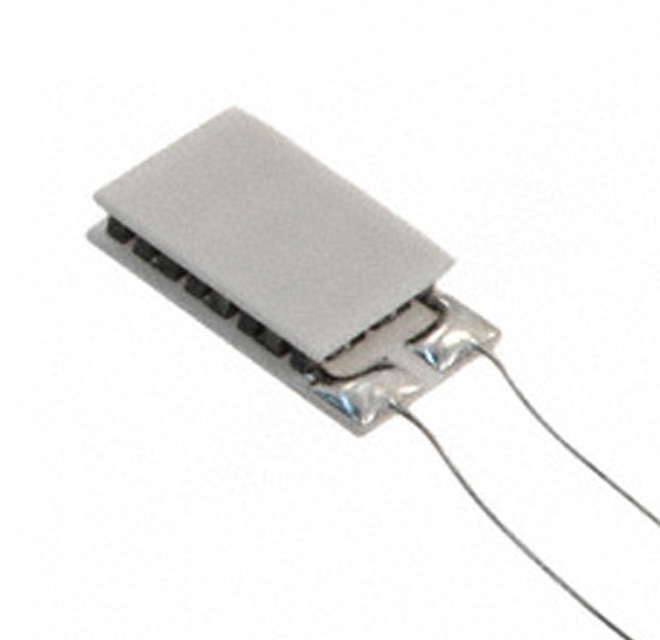

430544-506 430544-506

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 1.88mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
40 in stock

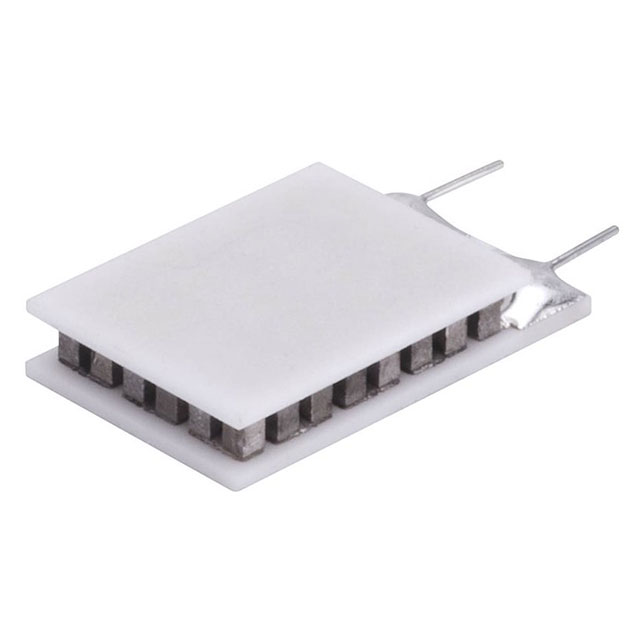

430544-507 430544-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 1.88mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
40 in stock

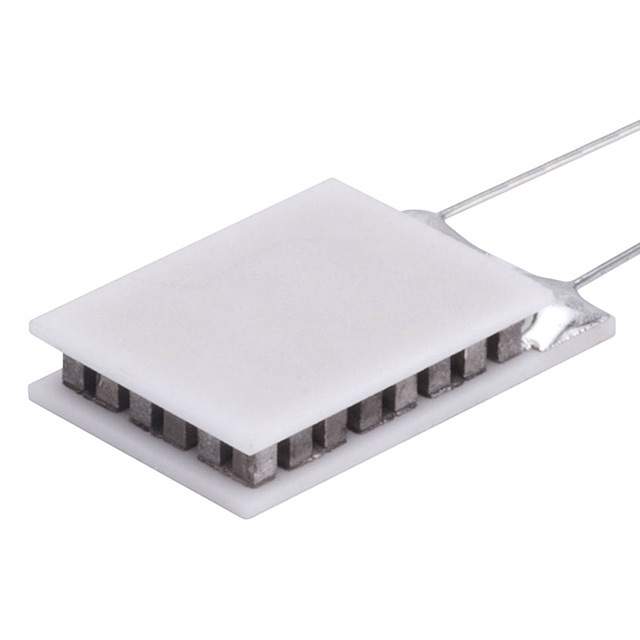

430544-509 430544-509

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 2.29mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

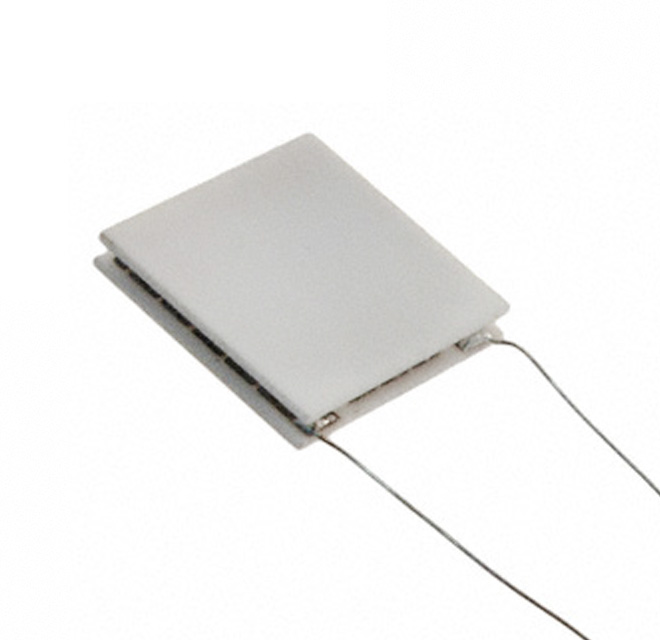

430548-502 430548-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.18mm
Qmax @ Th : 9.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.8V
Resistance : 3.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
9 in stock

430548-503 430548-503

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.54mm
Qmax @ Th : 9.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.8V
Resistance : 3.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

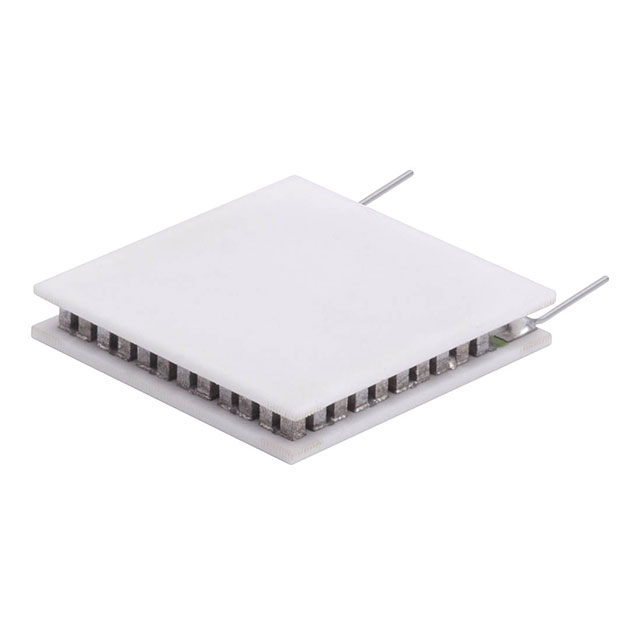

430548-508 430548-508

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.20mm x 13.20mm x 2.18mm
Qmax @ Th : 9.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 7.8V
Resistance : 3.55 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
100 in stock

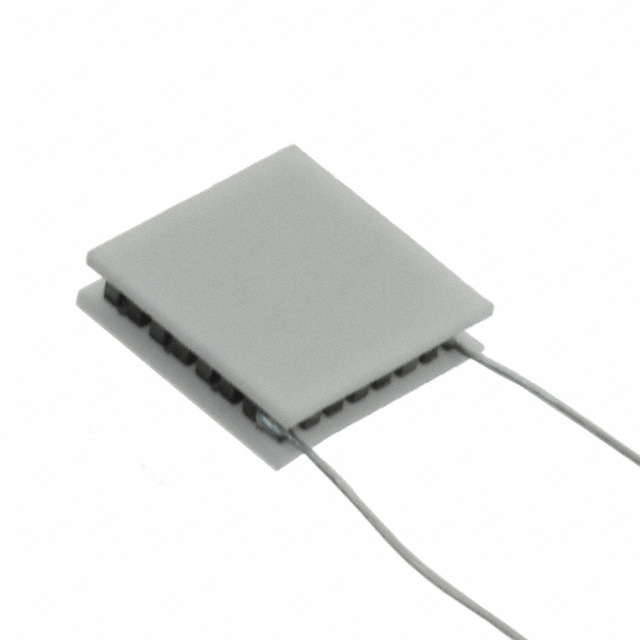

430549-501 430549-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.79mm x 8.79mm x 2.18mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
44 in stock

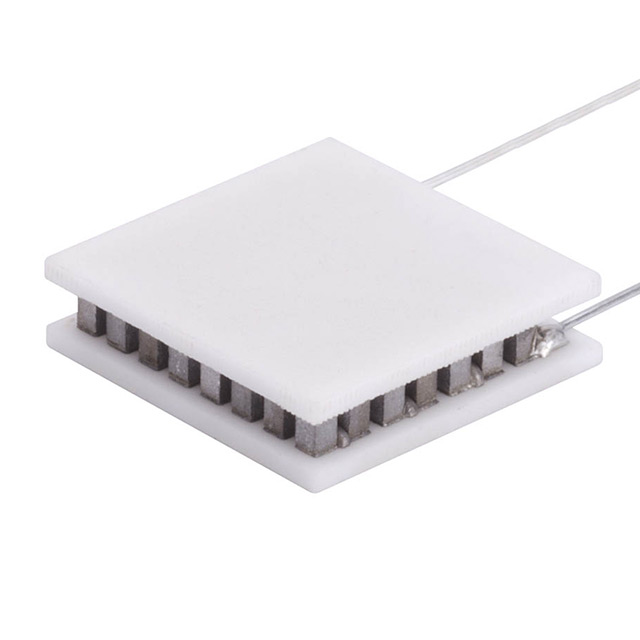

430549-507 430549-507

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.79mm x 8.79mm x 2.49mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
75 in stock

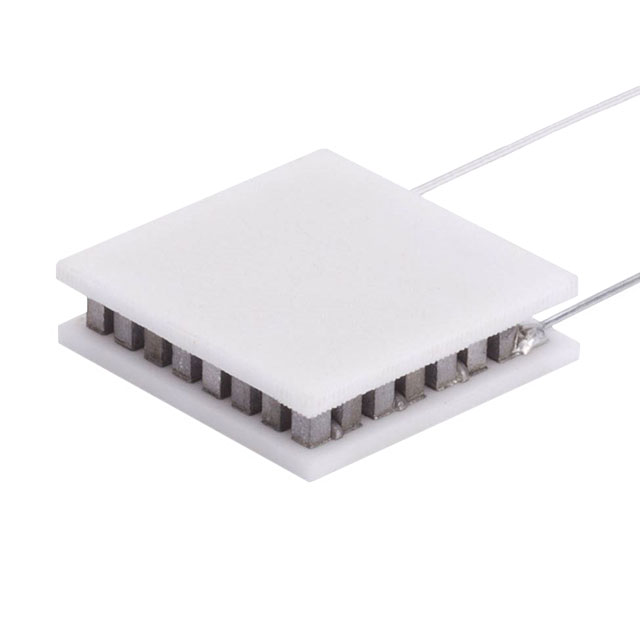

430550-502 430550-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.79mm x 8.79mm x 2.18mm
Qmax @ Th : 4.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 3.5V
Resistance : 1.62 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

430553-502 430553-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
21 in stock

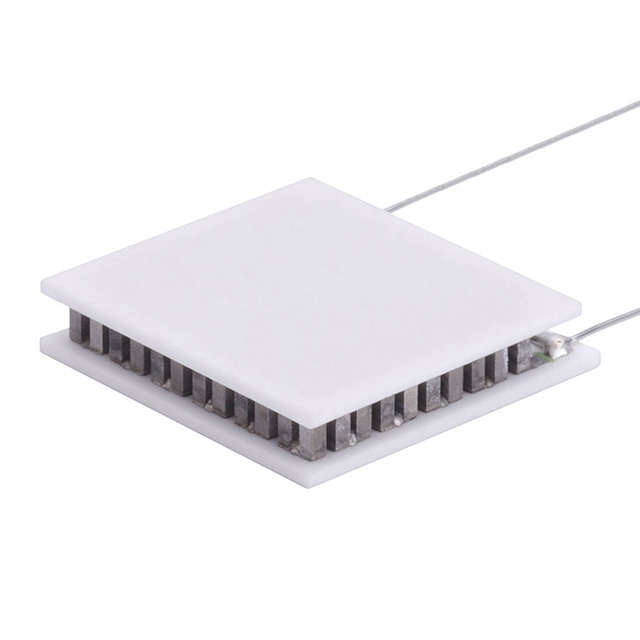

430557-501 430557-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 13.16mm x 13.16mm x 3.00mm
Qmax @ Th : 5.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 7.4V
Resistance : 5.65 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

430562-501 430562-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
20 in stock
