Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

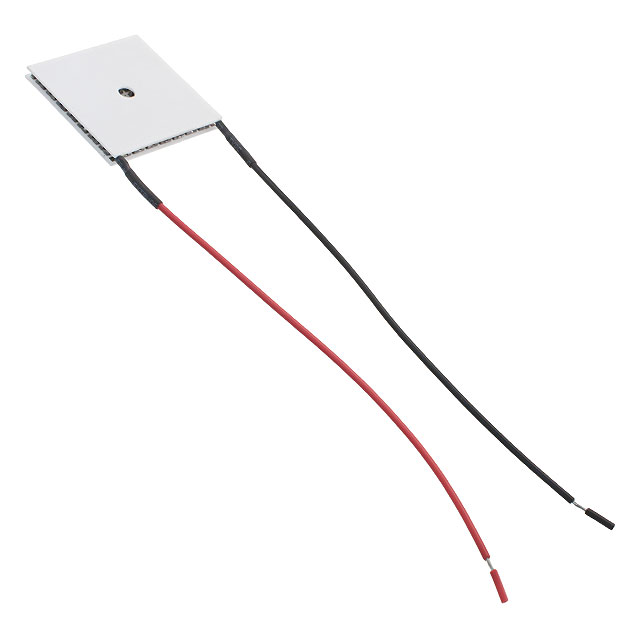

430474-501 430474-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 29.70mm x 29.70mm x 3.20mm
Qmax @ Th : 33.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 4.0A
Voltage - Max : 14.3V
Resistance : 3.30 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
35 in stock

430478-502 430478-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 50.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.3V
Resistance : 2.21 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
100 in stock

430495-504 430495-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 12.20mm x 6.00mm x 1.88mm
Qmax @ Th : 4.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.9A
Voltage - Max : 4.0V
Resistance : 1.92 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
100 in stock

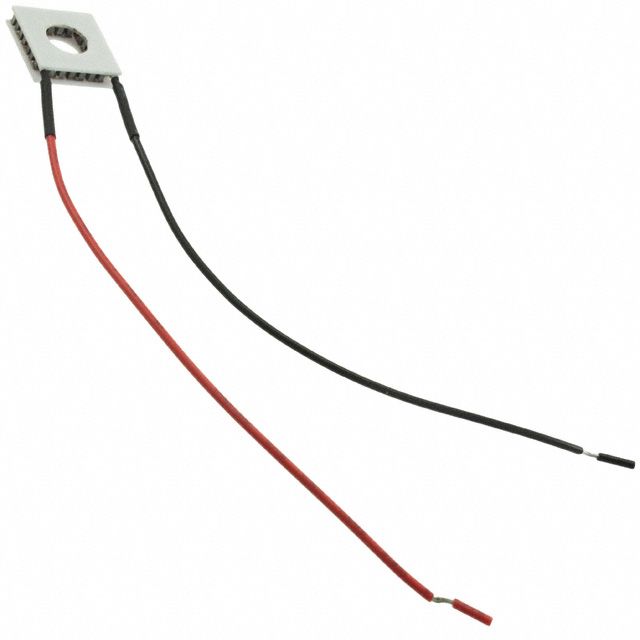

430511-504 430511-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.58mm
Qmax @ Th : 4.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.1A
Voltage - Max : 2.6V
Resistance : 790 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
71 in stock

430526-501 430526-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 39.88mm x 39.88mm x 3.81mm
Qmax @ Th : 50.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 14.3V
Resistance : 2.21 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
40 in stock

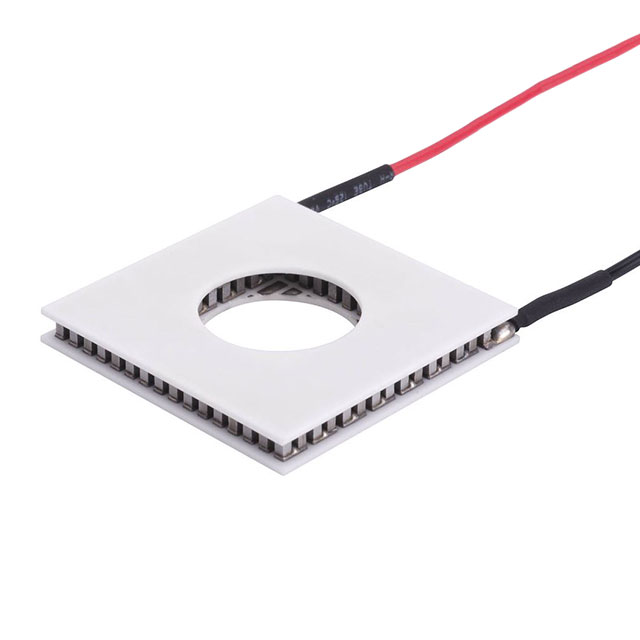

430533-501 430533-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.58mm
Qmax @ Th : 19.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.0A
Voltage - Max : 10.6V
Resistance : 3.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
40 in stock

430533-502 430533-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : SH
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 3.58mm
Qmax @ Th : 19.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.0A
Voltage - Max : 10.6V
Resistance : 3.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Silicone RTV
0
172 in stock

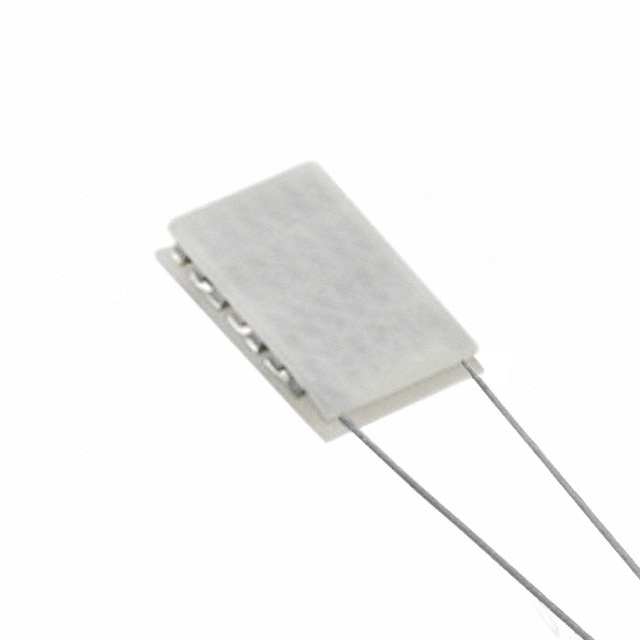

430540-501 430540-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.20mm x 6.00mm x 1.65mm
Qmax @ Th : 3.0W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 1.9A
Voltage - Max : 2.7V
Resistance : 1.26 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
43 in stock

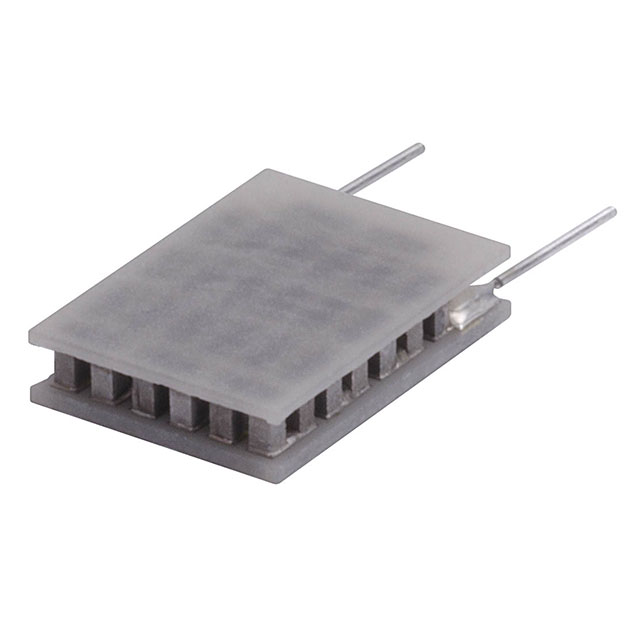

430540-502 430540-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.20mm x 6.00mm x 1.62mm
Qmax @ Th : 4.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.9A
Voltage - Max : 4.0V
Resistance : 1.92 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
146 in stock

430544-501 430544-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 1.88mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
17 in stock

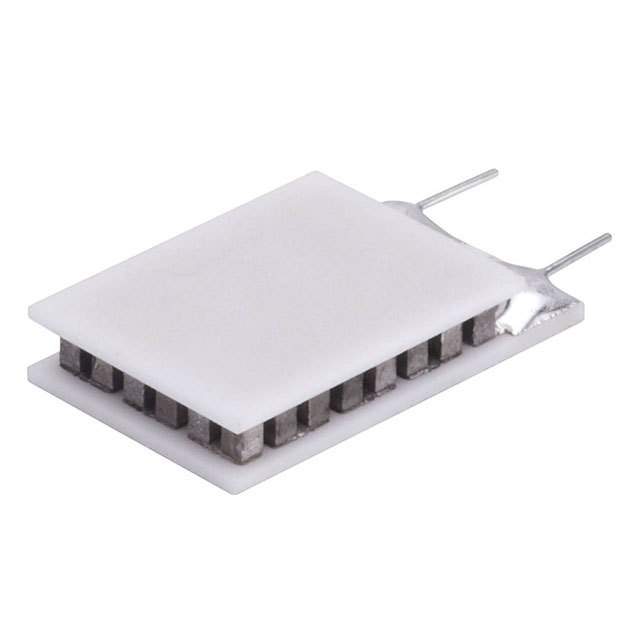

430544-504 430544-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 2.29mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

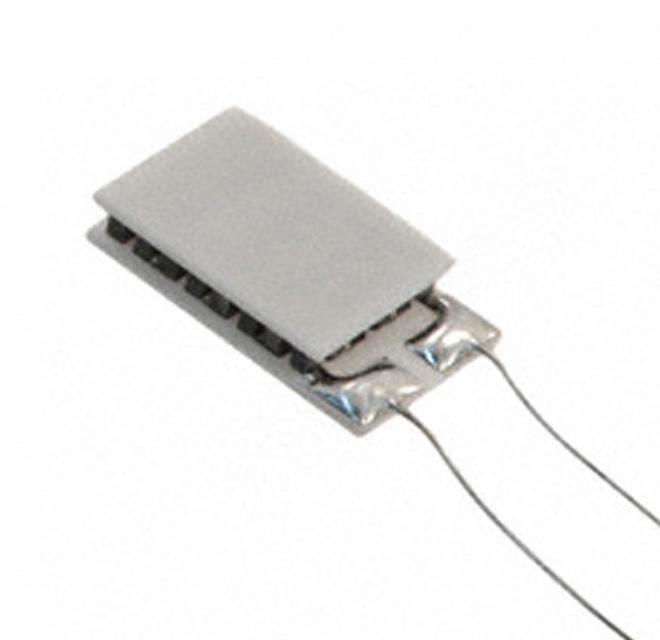

430544-505 430544-505

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 10.80mm x 6.60mm x 1.88mm
Qmax @ Th : 3.3W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 2.0A
Voltage - Max : 2.7V
Resistance : 1.25 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock
