On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.
Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.
Part Number
Manufacturer
Description
Unit Price
In Stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : PrimeSTACK™
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Power - Max : -
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 450A
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -25°C ~ 55°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : -
Part Status : Not For New Designs
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : -
Power - Max : -
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -25°C ~ 55°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : -
Part Status : Active
Type : -
Configuration : -
Current : -
Voltage : -
Voltage - Isolation : -
Package / Case : -
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : PrimeSTACK™
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 2560A
Power - Max : 5600W
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : PrimeSTACK™
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 2560A
Power - Max : 5600W
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -25°C ~ 60°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Series : PrimeSTACK™
Part Status : Discontinued at
IGBT Type : -
Configuration : Full Bridge
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Power - Max : -
Vce(on) (Max) @ Vge, Ic : -
Current - Collector Cutoff (Max) : -
Input Capacitance (Cies) @ Vce : -
Input : Standard
NTC Thermistor : No
Operating Temperature : -25°C ~ 55°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 15A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 2.8V, 4.5V
Rds On (Max) @ Id, Vgs : 8 mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 4.5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 2550pF @ 6V
FET Feature : -
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SO
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 10A (Ta), 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 13.4 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.55V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 4.5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 10V
FET Feature : -
Power Dissipation (Max) : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : -
Package / Case : -
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 19A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 19A, 10V
Vgs(th) (Max) @ Id : 2.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 44nC @ 4.5V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3710pF @ 15V
FET Feature : -
Power Dissipation (Max) : 2.5W
Operating Temperature : -55°C ~ 150°C (TA)
Mounting Type : Surface Mount
Supplier Device Package : -
Package / Case : -
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Alternate Packaging
Series : HEXFET®
Part Status : Obsolete
FET Type : P-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 12V
Current - Continuous Drain (Id) @ 25°C : 16A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V
Rds On (Max) @ Id, Vgs : 7 mOhm @ 16A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 91nC @ 4.5V
Vgs (Max) : ±8V
Input Capacitance (Ciss) (Max) @ Vds : 8676pF @ 10V
FET Feature : -
Power Dissipation (Max) : 2.5W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : 8-SO
Package / Case : 8-SOIC (0.154", 3.90mm Width)
0
100 in stock

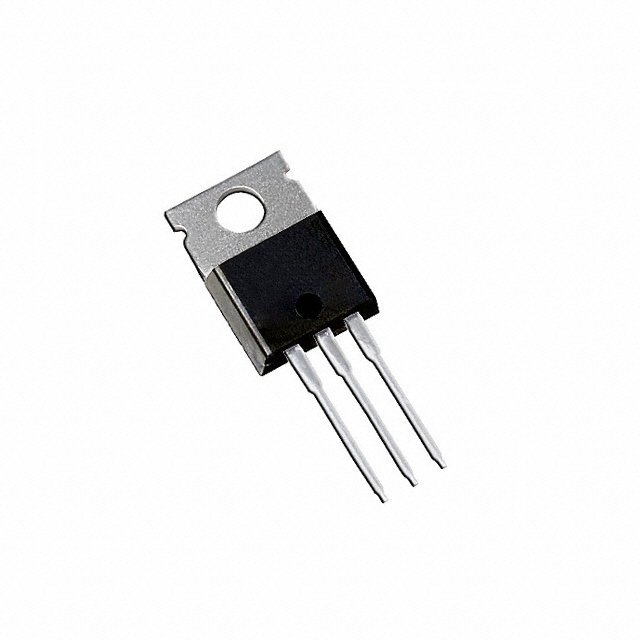

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 200V
Current - Continuous Drain (Id) @ 25°C : 18A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 67nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1160pF @ 25V
FET Feature : -
Power Dissipation (Max) : 150W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220AB
Package / Case : TO-220-3
0
100 in stock
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 4.2 mOhm @ 75A, 10V
Vgs(th) (Max) @ Id : 4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs : 120nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 4520pF @ 50V
FET Feature : -
Power Dissipation (Max) : 230W (Tc)
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : -
Package / Case : -
0
100 in stock
