Welcome to Weijie Semiconductor

On April 1st, 1999, Siemens Semiconductors became Infineon Technologies. A dynamic more flexible company geared towards success in the competitive, ever-changing world of microelectronics.

Infineon is a leading global designer, manufacturer and supplier of a broad range of semiconductors used in various microelectronic applications. Infineon's product portfolio consists of logic products, including digital, mixed-signal, and analog integrated circuits, as well as discrete semiconductor products.

Part Number
Manufacturer
Description
Unit Price
In Stock

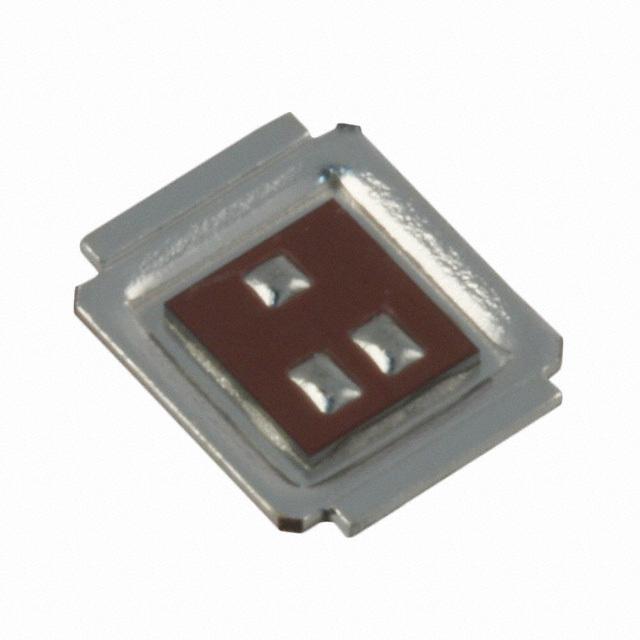

64-9146 64-9146

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : HEXFET®
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 32A (Ta), 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 1.8 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 71nC @ 4.5V
Vgs (Max) : ±12V
Input Capacitance (Ciss) (Max) @ Vds : 6580pF @ 10V
FET Feature : -
Power Dissipation (Max) : 2.8W (Ta), 89W (Tc)
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : DIRECTFET™MT
Package / Case : DirectFET™Isometric MT
0
100 in stock

64-9149PBF 64-9149PBF

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock

64-9150PBF 64-9150PBF

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : -
Series : -
Part Status : Obsolete
FET Type : -
Technology : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : -
Supplier Device Package : -
Package / Case : -
0
100 in stock

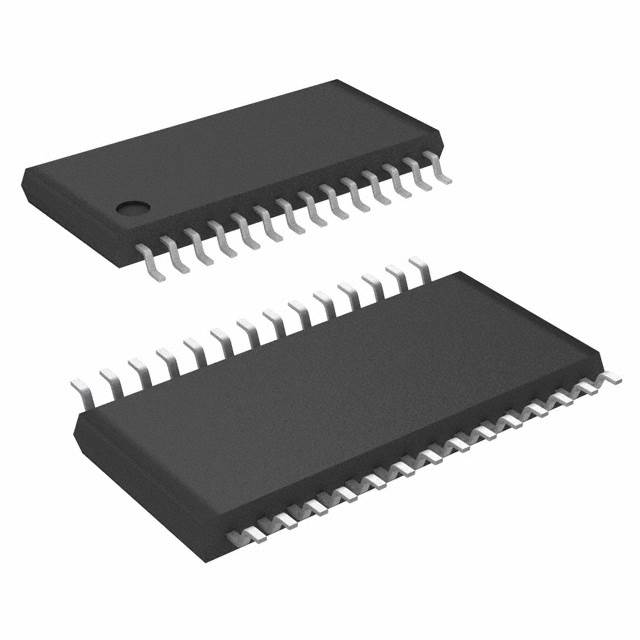

6ED003L02F2XUMA1 6ED003L02F2XUMA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : 620V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : PG-TSSOP-28
0
3144 in stock

6ED003L06C2X1SA1 6ED003L06C2X1SA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Chip
0
100 in stock

6ED003L06F2XUMA1 6ED003L06F2XUMA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : 620V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : PG-DSO-28
0
739 in stock

6EDL04I06NCX1SA1 6EDL04I06NCX1SA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Chip
0
100 in stock

6EDL04I06NTXUMA1 6EDL04I06NTXUMA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : PG-DSO-28-17
0
574 in stock

6EDL04I06PCX1SA1 6EDL04I06PCX1SA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Chip
0
100 in stock

6EDL04I06PTXUMA1 6EDL04I06PTXUMA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : PG-DSO-28
0
1605 in stock

6EDL04N02PRXUMA1 6EDL04N02PRXUMA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Cut Tape (CT)
Alternate Packaging
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 10 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 200V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : PG-TSSOP-28
0
2998 in stock

6EDL04N06PCX1SA1 6EDL04N06PCX1SA1

International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Bulk
Series : EiceDriver™
Part Status : Active
Driven Configuration : Half-Bridge
Channel Type : 3-Phase
Number of Drivers : 6
Gate Type : IGBT
Voltage - Supply : 13 V ~ 17.5 V
Logic Voltage - VIL, VIH : 1.1V, 1.7V
Current - Peak Output (Source, Sink) : -
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : 600V
Rise / Fall Time (Typ) : 60ns, 26ns
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : Die
Supplier Device Package : Chip
0
100 in stock
