Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

MI2612-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MI (15-28W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2.17A
Power (Watts) : 26W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : CE

100 in stock

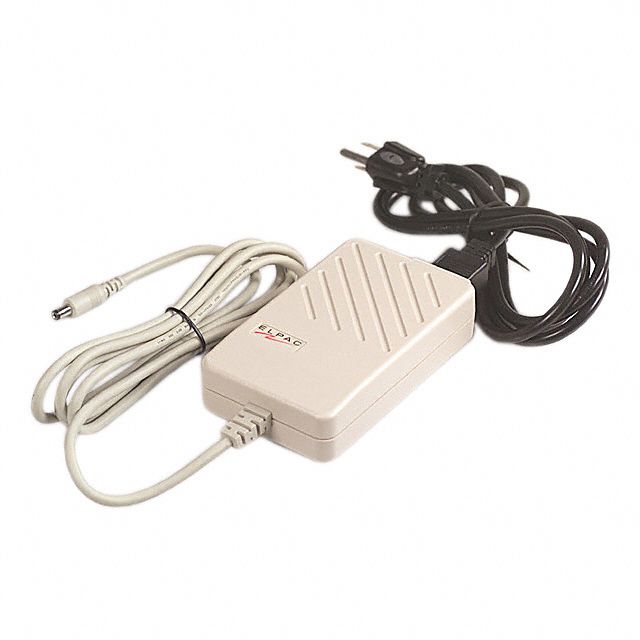

MI2815-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MI (15-28W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 1.9A
Power (Watts) : 29W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : CE

100 in stock

MI2824-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MI (15-28W)
Part Status : Obsolete
Region Utilized : International
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.17A
Power (Watts) : 28W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm)
Approvals : CE

100 in stock

MS4012F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS40F (40W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.3A
Power (Watts) : 40W
Applications : Medical
Voltage - Isolation : -
Efficiency : 86%
Operating Temperature : 0°C ~ 50°C
Features : DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm)

100 in stock

MS4015F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS40F (40W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.7A
Power (Watts) : 40W
Applications : Medical
Voltage - Isolation : -
Efficiency : 87%
Operating Temperature : 0°C ~ 50°C
Features : DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm)

100 in stock

MS4018F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS40F (40W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 18V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.2A
Power (Watts) : 40W
Applications : Medical
Voltage - Isolation : -
Efficiency : 86%
Operating Temperature : 0°C ~ 50°C
Features : DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm)

46 in stock

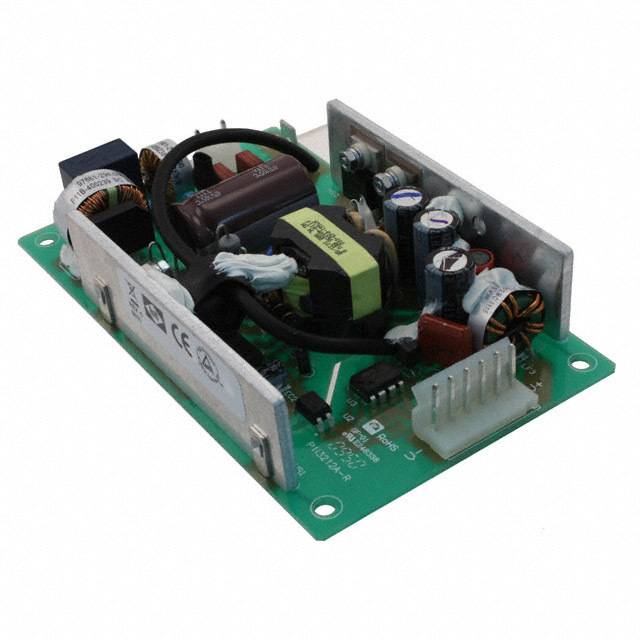

MS4024F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS40F (40W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.67A
Power (Watts) : 40W
Applications : Medical
Voltage - Isolation : -
Efficiency : 88%
Operating Temperature : 0°C ~ 50°C
Features : DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm)

100 in stock

MS6512F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS65 (65W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5.4A
Power (Watts) : 65W
Applications : Medical
Voltage - Isolation : -
Efficiency : 85%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 2.99" W x 1.15" H (127.0mm x 76.0mm x 29.2mm)

100 in stock

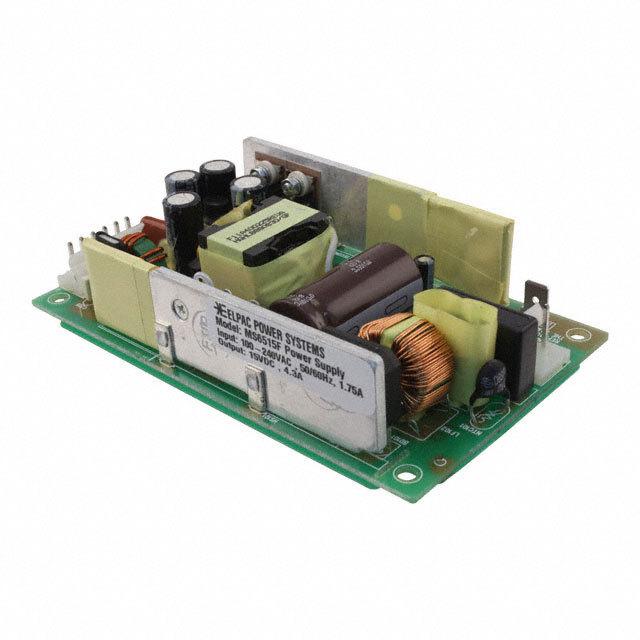

MS6515F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS65 (65W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.3A
Power (Watts) : 65W
Applications : Medical
Voltage - Isolation : -
Efficiency : 86%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 2.99" W x 1.15" H (127.0mm x 76.0mm x 29.2mm)

104 in stock

MS6524F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MS65 (65W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.7A
Power (Watts) : 65W
Applications : Medical
Voltage - Isolation : -
Efficiency : 87%
Operating Temperature : 0°C ~ 50°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 2.99" W x 1.15" H (127.0mm x 76.0mm x 29.2mm)

100 in stock

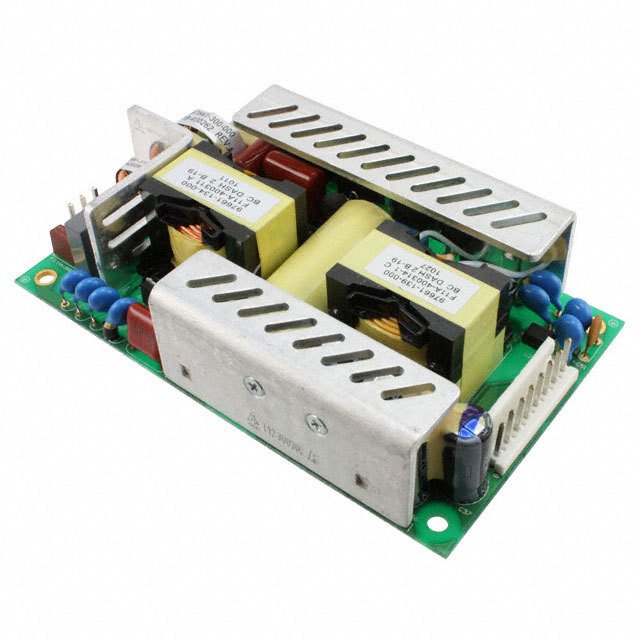

MSA150018A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSA150 (150W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 18V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.3A
Power (Watts) : 150W (180W Forced Air)
Applications : Medical
Voltage - Isolation : -
Efficiency : 91%
Operating Temperature : 0°C ~ 70°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 30.9mm)

98 in stock

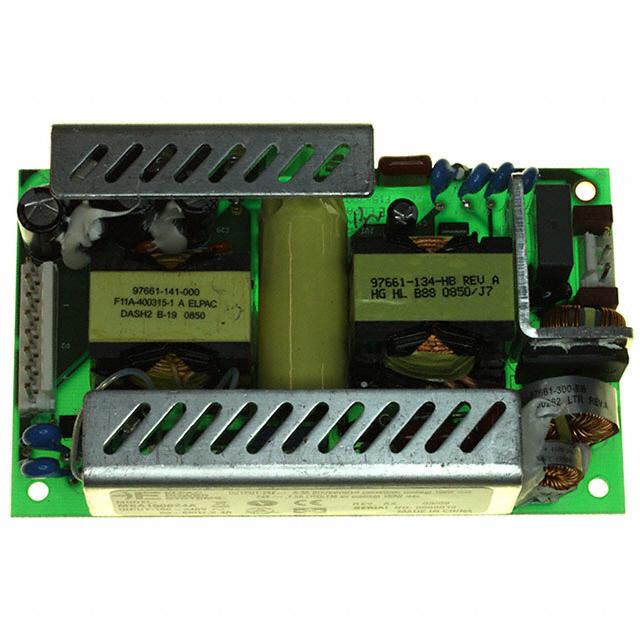

MSA150024A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : MSA150 (150W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.3A
Power (Watts) : 150W (180W Forced Air)
Applications : Medical
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C
Features : Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 30.9mm)

479 in stock
