Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.

Part Number
Manufacturer
Description
Unit Price
In Stock

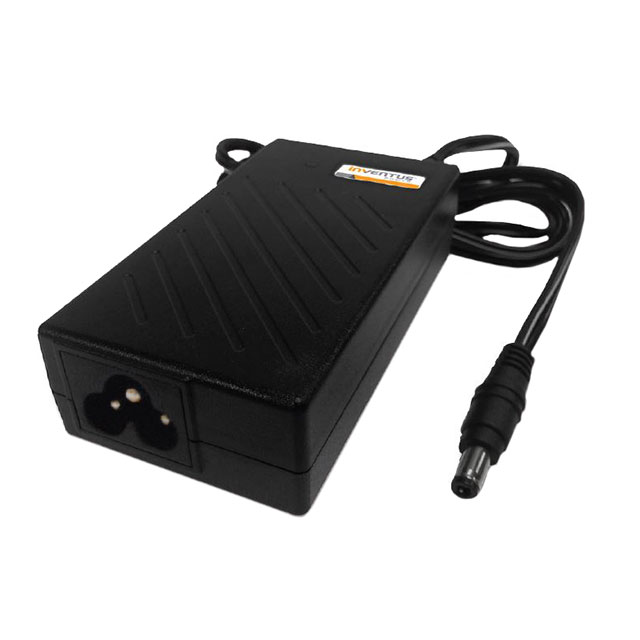

IPD3019-760S IPD3019-760S

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 1.6A
Power (Watts) : -
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus
0
97 in stock

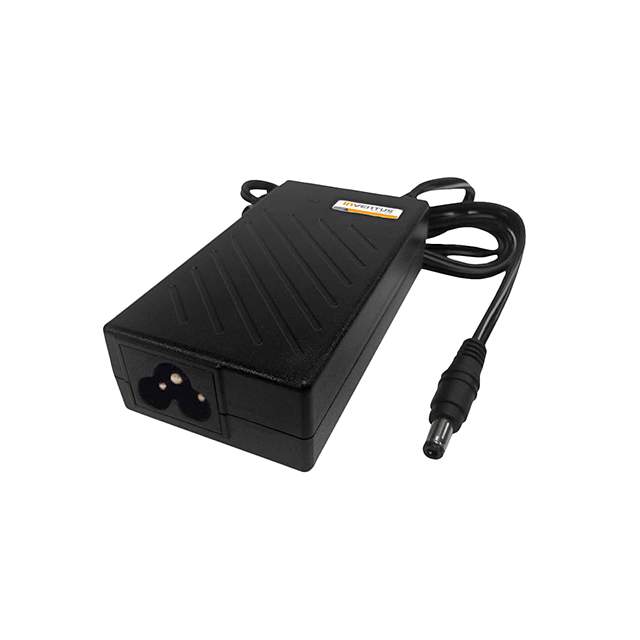

IPD3024-760 IPD3024-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.25A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus
0
132 in stock

IPD3024-760S IPD3024-760S

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 1.25A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus
0
69 in stock

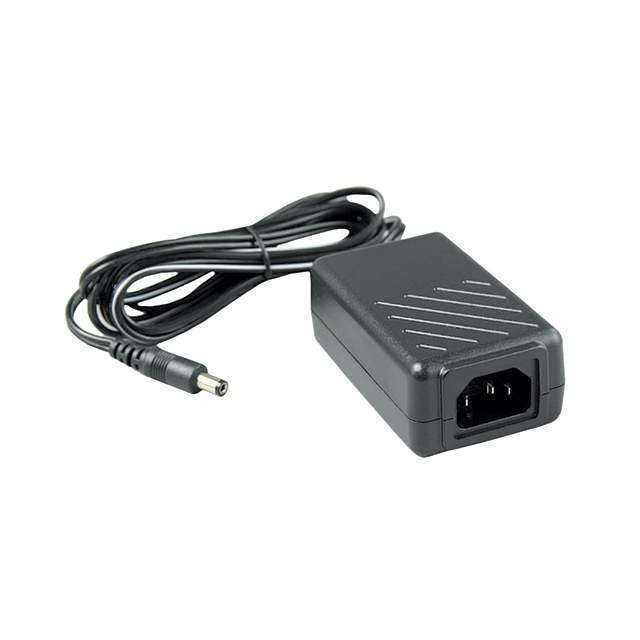

IPD5012-760 IPD5012-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 4.25A
Power (Watts) : 51W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
265 in stock

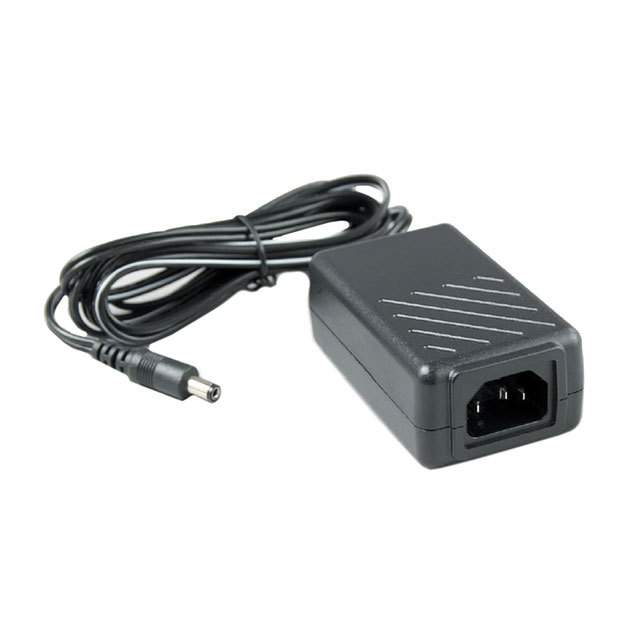

IPD5012-760S IPD5012-760S

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 4.25A
Power (Watts) : 51W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
91 in stock

IPD5015-760 IPD5015-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 3.3A
Power (Watts) : 50W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
145 in stock

IPD5018-760 IPD5018-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 2.8A
Power (Watts) : 50W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
58 in stock

IPD5019-760 IPD5019-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 2.6A
Power (Watts) : 49W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
69 in stock

IPD5019-760S IPD5019-760S

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 2.6A
Power (Watts) : 49.4W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
121 in stock

IPD5024-760 IPD5024-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 2.1A
Power (Watts) : 50W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
100 in stock

IPD5024-760S IPD5024-760S

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : IPD50 (50W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 2.1A
Power (Watts) : 50.4W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.50" L x 2.26" W x 1.44" H (114.2mm x 57.5mm x 36.5mm)
Approvals : CE, cTUVus
0
57 in stock

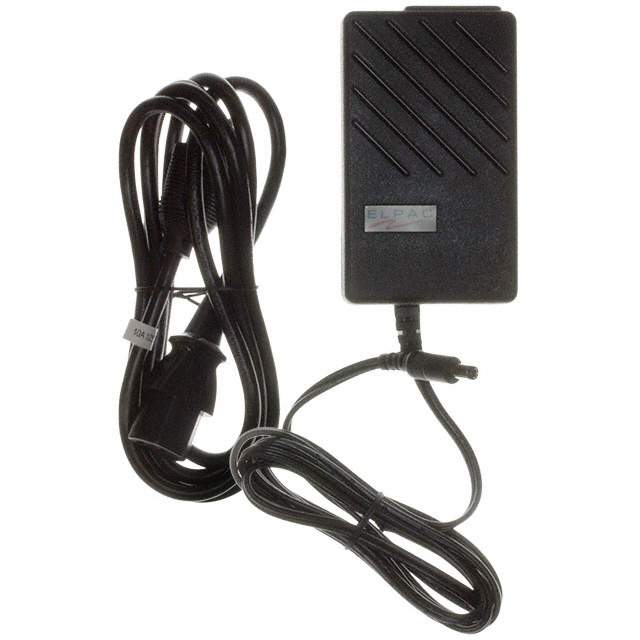

M42012-760 M42012-760

ICCNexergy (Inventus Power)
Manufacturer : Inventus Power
Series : M4 (20W)
Part Status : Obsolete
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord
Voltage - Input : 90 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.7A
Power (Watts) : 20W
No Load Power Consumption : -
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : 75%
Operating Temperature : 0°C ~ 40°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 4.25" L x 2.50" W x 1.30" H (108.0mm x 64.5mm x 33.0mm)
Approvals : CE
0
100 in stock
