Inventus Power

- Inventus Power, formerly ICCNexergy + Palladium Energy, is the world’s ONLY power systems manufacturer that integrates and delivers battery packs, chargers & docking stations and power supplies across the consumer, commercial, medical and military & government markets and is located in 8 countries across 4 continents.

Inventus Power has almost 60 years of experience designing high quality medical power supplies and commercial AC/DC power supplies. Our standard Elpac offering of desktop and open frame power supplies ranges from 5W to 350W and we have custom developed power supplies up to 2000 watts. We demonstrate MTBF on all power systems by conducting extensive in-house life testing (High Temp, High Stress, 100% Burn-In, etc.). Our proven design guidelines allow us to offer an industry-best five year warranty on all of our standard Elpac power solutions.


Part Number

Manufacturer

Description

Unit Price

In Stock

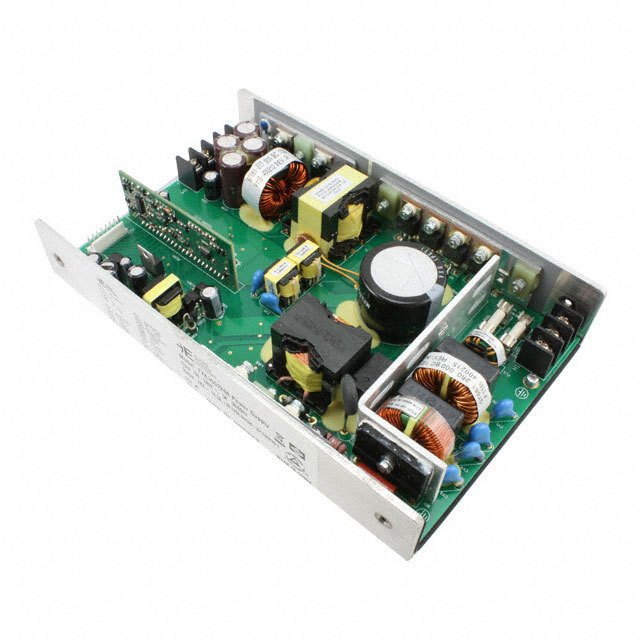

FXA350028A

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FXA350 (350W)
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 28V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : 250W (350W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 89%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : PFC, Remote Sense, Standby Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm)

293 in stock

FXA350028F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FXA350 (350W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 28V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 9A
Power (Watts) : 250W (350W Forced Air)
Applications : ITE (Commercial), Medical
Voltage - Isolation : -
Efficiency : 89%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm)

100 in stock

FXA350048F

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : FXA350 (350W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5.3A
Power (Watts) : 250W (350W Forced Air)
Applications : ITE (Commercial), Medical
Voltage - Isolation : -
Efficiency : 88%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm)

100 in stock

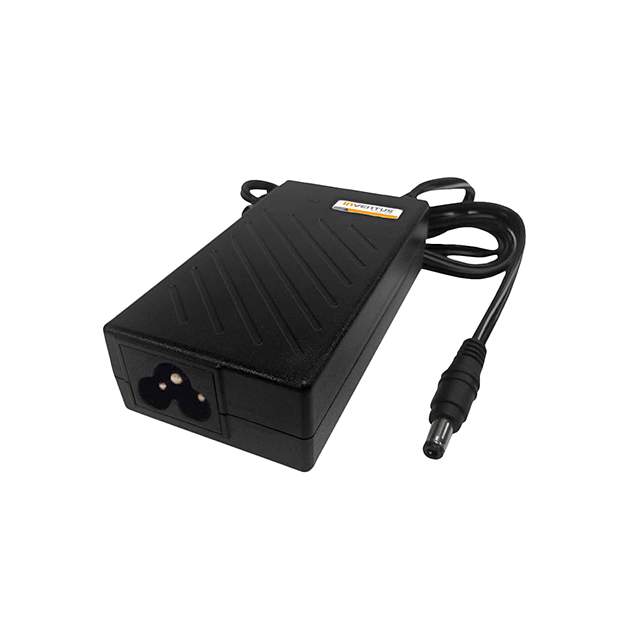

IPD2012-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD20 (20W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.6A
Power (Watts) : 19W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CB, CE, cTUVus

123 in stock

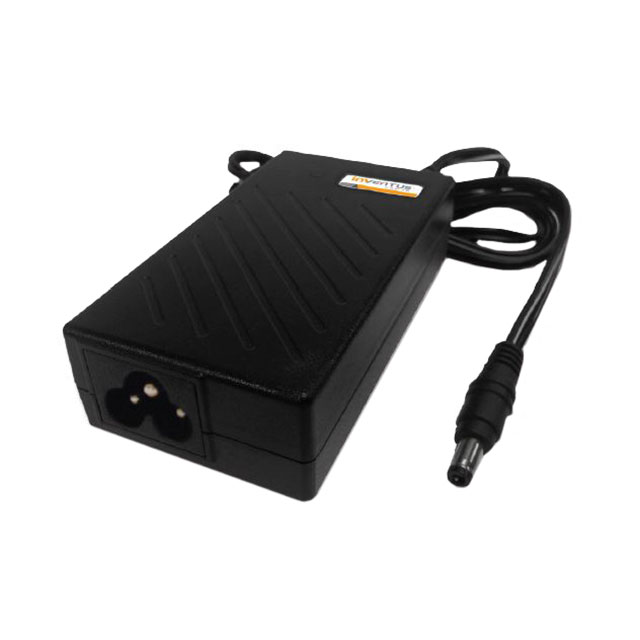

IPD2012-760S

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD20 (20W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 1.6A
Power (Watts) : 19.2W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

55 in stock

IPD2024-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD20 (20W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 800mA
Power (Watts) : 19W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CB, CE, cTUVus

60 in stock

IPD2024-760S

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD20 (20W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 24V
Current - Output (Max) : 800mA
Power (Watts) : 19.2W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

140 in stock

IPD3012-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2.5A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

83 in stock

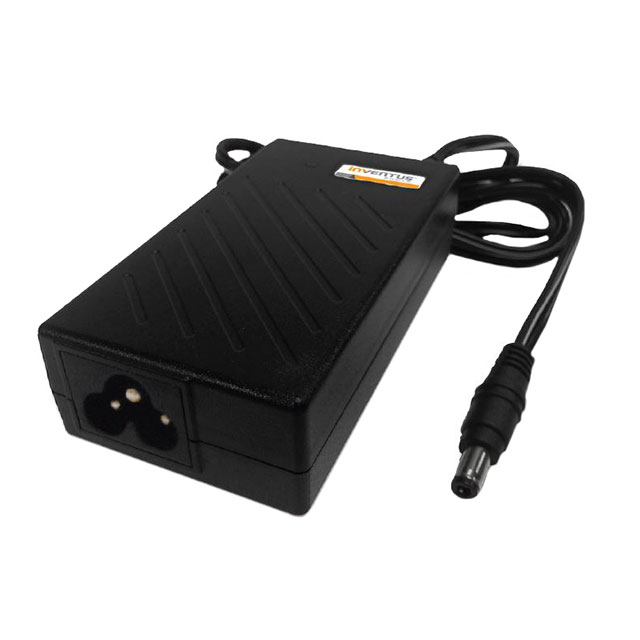

IPD3012-760S

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 12V
Current - Output (Max) : 2.5A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

89 in stock

IPD3015-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 15V
Current - Output (Max) : 2A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

113 in stock

IPD3018-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 18V
Current - Output (Max) : 1.7A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

56 in stock

IPD3019-760

ICCNexergy (Inventus Power)

Manufacturer : Inventus Power
Series : IPD30 (30W)
Part Status : Active
Region Utilized : North America
Form : Desktop (Class I)
Input Type : Cord (Sold Separately)
Voltage - Input : 85 ~ 264 VAC
Voltage - Output : 19V
Current - Output (Max) : 1.6A
Power (Watts) : 30W
No Load Power Consumption : 100mW (Max)
Polarization : Positive Center
Applications : ITE (Commercial)
Efficiency : Level VI
Operating Temperature : 0°C ~ 60°C
Output Connector : Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Size / Dimension : 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm)
Approvals : CE, cTUVus

77 in stock
