Global Power Technologies Group, Inc.
- Global Power Technologies Group, Inc. (“GPTG”) founded in 2007 is an integrated development and manufacturing company dedicated to products based on Silicon Carbide (SiC) technologies. These products will be foundational to the power electronics and energy industries in future years where advanced technologies are needed for low cost, highly efficient power generation, conversion and transmission.
Part Number
Manufacturer
Description
Unit Price
In Stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : 2 Independent
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 940W
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 14nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 285A
Power - Max : 1087W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 21.2nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
5 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 275A
Power - Max : 1035W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 20.2nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 285A
Power - Max : 1087W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 21.2nF @ 25V
Input : Three Phase Bridge Rectifier
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : 2 Independent
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1595W
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 20nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 335A
Power - Max : -
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 22.4nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
4 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : 2 Independent
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1630W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 26nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : -
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1630W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
7 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 1250V
Current - Collector (Ic) (Max) : 600A
Power - Max : 2500W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30.8nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
20 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Series : Amp+™
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 1130A
Power - Max : 3060W
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 600A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 51nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

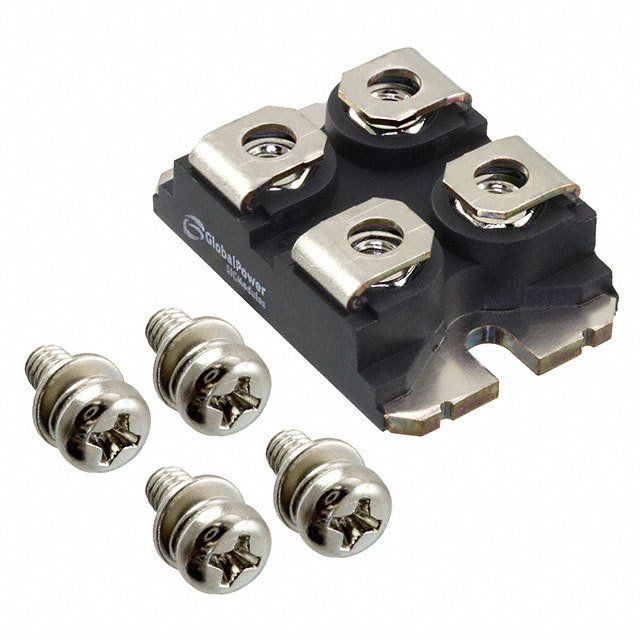

Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
166 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227
0
250 in stock
