Global Power Technologies Group, Inc.
- Global Power Technologies Group, Inc. (“GPTG”) founded in 2007 is an integrated development and manufacturing company dedicated to products based on Silicon Carbide (SiC) technologies. These products will be foundational to the power electronics and energy industries in future years where advanced technologies are needed for low cost, highly efficient power generation, conversion and transmission.
Part Number
Manufacturer
Description
Unit Price
In Stock

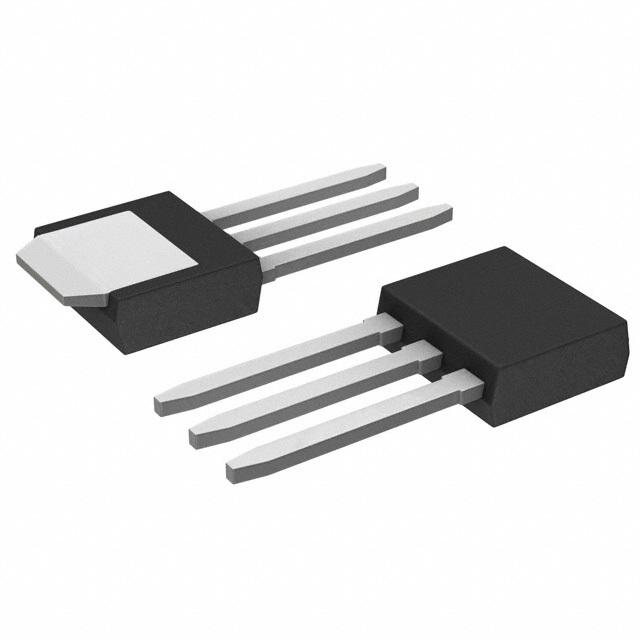

Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : 7.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.2 Ohm @ 3.75A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 25V
FET Feature : -
Power Dissipation (Max) : 120W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : I-PAK
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2740pF @ 25V
FET Feature : -
Power Dissipation (Max) : 89W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 72nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 2740pF @ 25V
FET Feature : -
Power Dissipation (Max) : 312W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-3PN
Package / Case : TO-3P-3, SC-65-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : 10A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 700 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1660pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
1 in stock

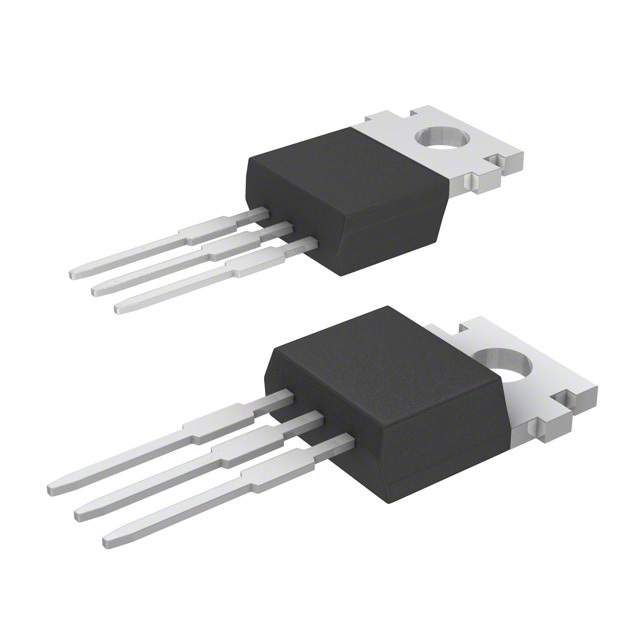

Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : 10A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 700 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1660pF @ 25V
FET Feature : -
Power Dissipation (Max) : 198W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 650V
Current - Continuous Drain (Id) @ 25°C : 9.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 820 mOhm @ 4.75A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1670pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 650V
Current - Continuous Drain (Id) @ 25°C : 9.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 820 mOhm @ 4.75A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1670pF @ 25V
FET Feature : -
Power Dissipation (Max) : 198W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 900V
Current - Continuous Drain (Id) @ 25°C : 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 900 mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 84nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 3240pF @ 25V
FET Feature : -
Power Dissipation (Max) : 416W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-3PN
Package / Case : TO-3P-3, SC-65-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 650 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1890pF @ 25V
FET Feature : -
Power Dissipation (Max) : 53.4W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 600V
Current - Continuous Drain (Id) @ 25°C : 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 650 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1890pF @ 25V
FET Feature : -
Power Dissipation (Max) : 231W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 800V
Current - Continuous Drain (Id) @ 25°C : 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 650 mOhm @ 6A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 79nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 3370pF @ 25V
FET Feature : -
Power Dissipation (Max) : 416W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-3PN
Package / Case : TO-3P-3, SC-65-3
0
100 in stock
Global Power Technologies Group
Manufacturer : Global Power Technologies Group
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 13A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 480 mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id : 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1798pF @ 25V
FET Feature : -
Power Dissipation (Max) : 52W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
100 in stock
