CTS Electronic Components

- CTS Electronic Components is a division of CTS Corporation. The division has five product lines: Electrocomponents, Filters, Frequency Control, Resistors, and Thermal Management Solutions. The company manufactures an extensive array of frequency-control devices, ceramic RF filters and duplexers, EMI/RFI filters, capacitors, DIP and rotary switches, rotary and linear potentiometers, encoders, resistor and resistor/capacitor networks, and heat management components. With manufacturing locations in Albuquerque, New Mexico; Hopkinton, Massachusetts; Nogales, Mexico; Singapore; Zhongshan and Tianjin, China; and Kaohsiung, Taiwan; CTS is able to serve major markets such as medical, defense and aerospace, industrial controls, power management, HVAC, security, lighting, audio, communications, computer, and electronic networking.

Part Number
Manufacturer
Description
Unit Price
In Stock

212T0111S332RA 212T0111S332RA

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Series : 212
Part Status : Active
Number of Positions : 11
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP11T
Contact Timing : Shorting (MBB)
Current Rating : 750mA (AC), 250mA (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Round (6.35mm Dia)
Actuator Length : 15.90mm
Angle of Throw : 30°
Contact Material : Brass
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Solder Lug
Features : -
Depth Behind Panel : 22.17mm
0
80 in stock

212T0112N332RA 212T0112N332RA

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Series : 212
Part Status : Active
Number of Positions : 12
Index Stops : Fixed
Number of Decks : 1
Number of Poles per Deck : 1
Circuit per Deck : SP12T
Contact Timing : Non-Shorting (BBM)
Current Rating : 750mA (AC), 250mA (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 28V
Actuator Type : Round (6.35mm Dia)
Actuator Length : 15.90mm
Angle of Throw : 30°
Contact Material : Brass
Contact Finish : Silver
Mounting Type : Panel Mount
Termination Style : Solder Lug
Features : -
Depth Behind Panel : 22.17mm
0
207 in stock

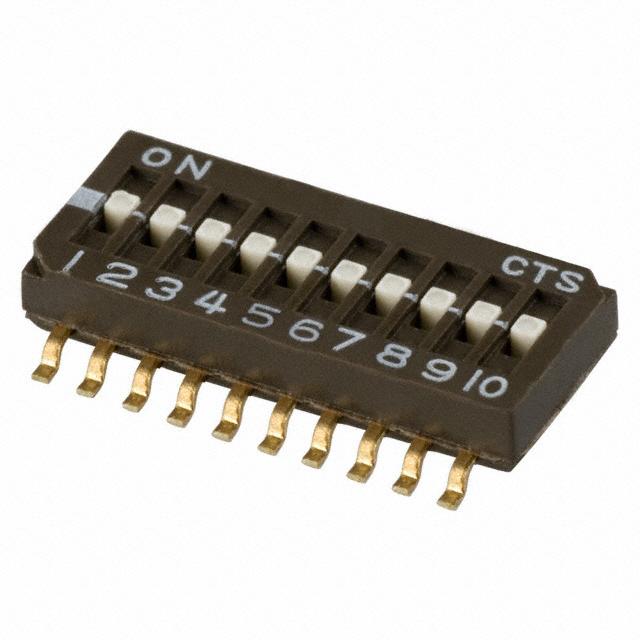

218-10LPST 218-10LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
5362 in stock

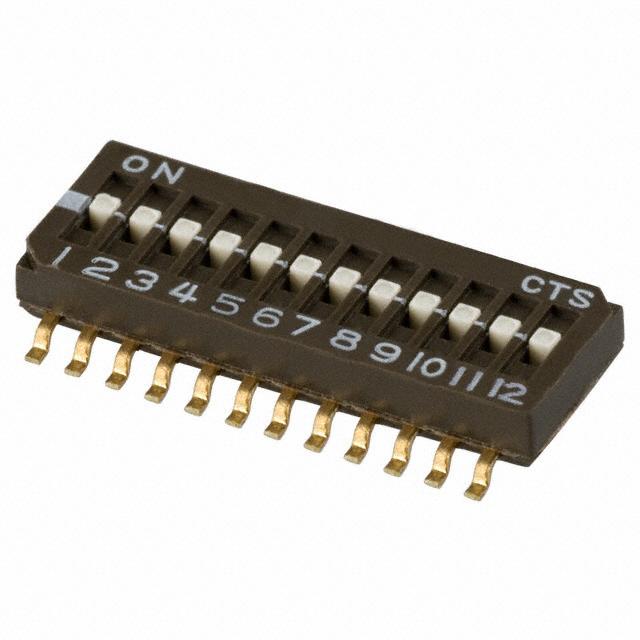

218-12LPST 218-12LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 12
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
1883 in stock

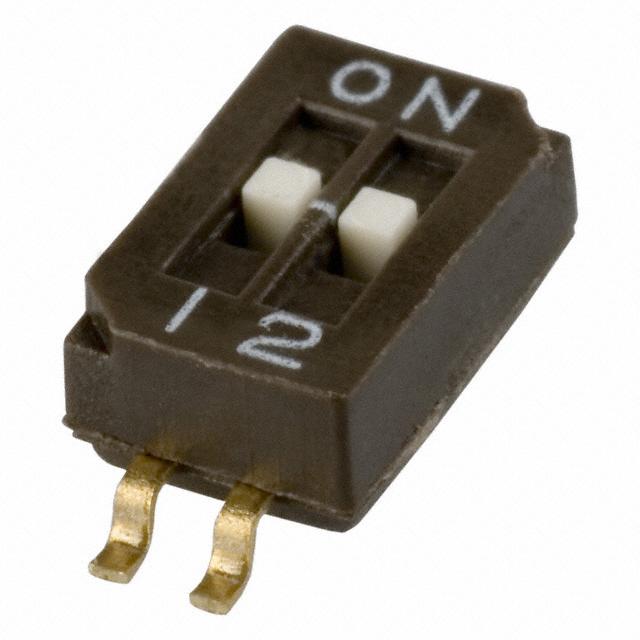

218-2LPST 218-2LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
5654 in stock

218-2LPSTR 218-2LPSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
3042 in stock

218-4LPST 218-4LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
19436 in stock

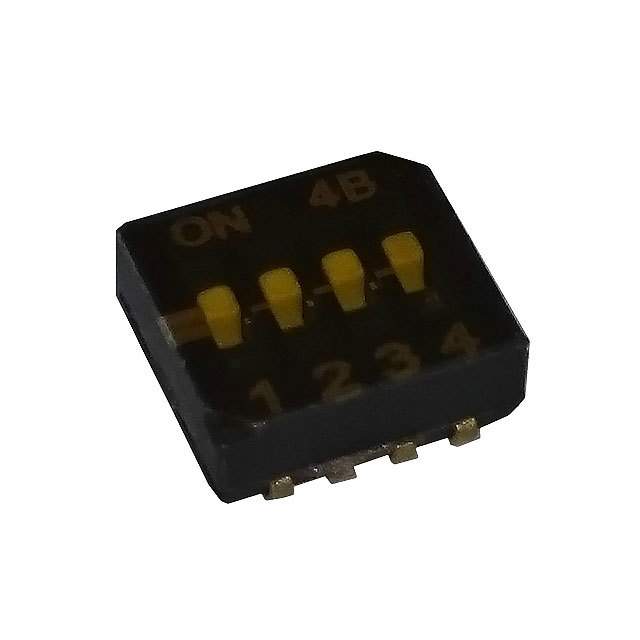

218-4LPSTJ 218-4LPSTJ

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.106" (2.70mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
7372 in stock

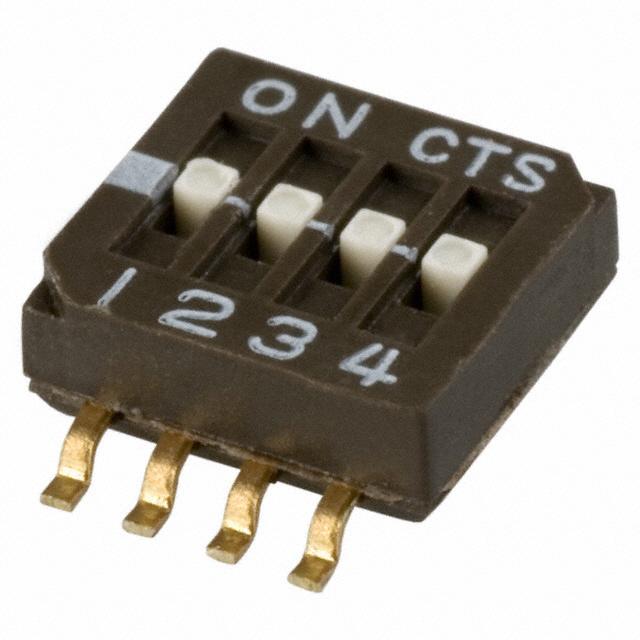

218-4LPSTR 218-4LPSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
14719 in stock

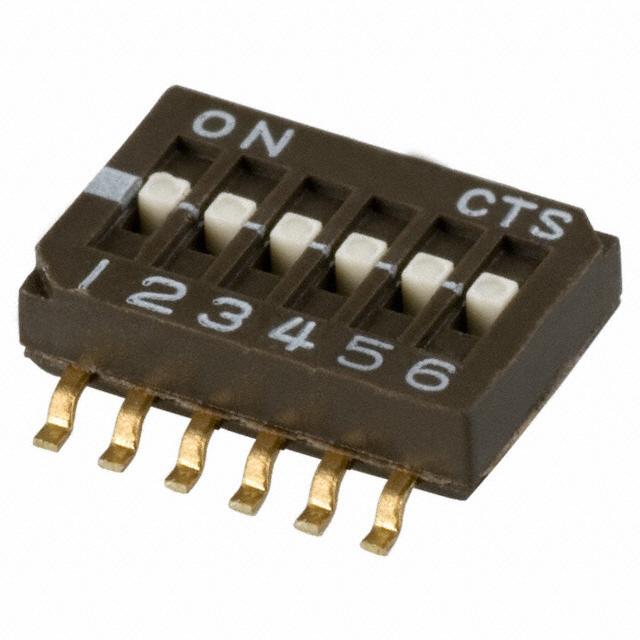

218-6LPST 218-6LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
11408 in stock

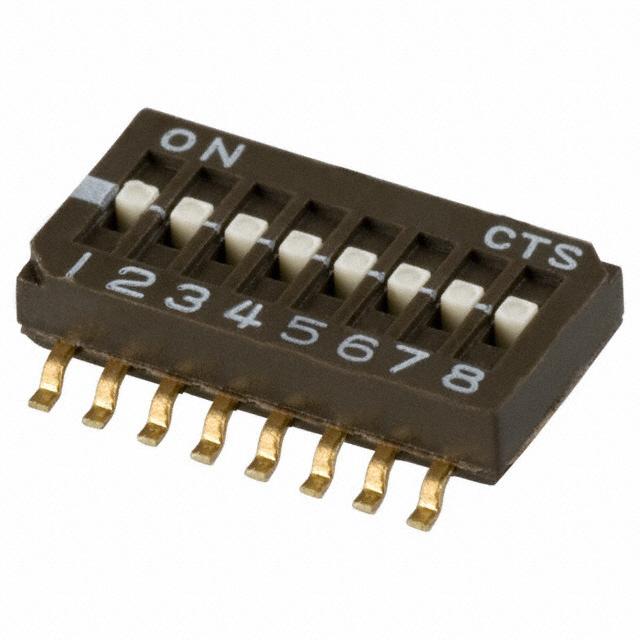

218-8LPST 218-8LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
13898 in stock

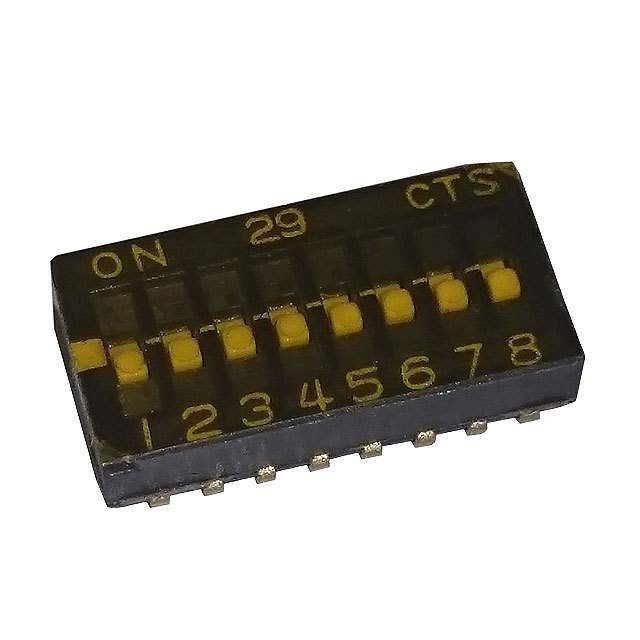

218-8LPSTJ 218-8LPSTJ

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.106" (2.70mm)
Mounting Type : Surface Mount
Termination Style : J Lead
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
2315 in stock
