CTS Electronic Components

- CTS Electronic Components is a division of CTS Corporation. The division has five product lines: Electrocomponents, Filters, Frequency Control, Resistors, and Thermal Management Solutions. The company manufactures an extensive array of frequency-control devices, ceramic RF filters and duplexers, EMI/RFI filters, capacitors, DIP and rotary switches, rotary and linear potentiometers, encoders, resistor and resistor/capacitor networks, and heat management components. With manufacturing locations in Albuquerque, New Mexico; Hopkinton, Massachusetts; Nogales, Mexico; Singapore; Zhongshan and Tianjin, China; and Kaohsiung, Taiwan; CTS is able to serve major markets such as medical, defense and aerospace, industrial controls, power management, HVAC, security, lighting, audio, communications, computer, and electronic networking.

Part Number
Manufacturer
Description
Unit Price
In Stock

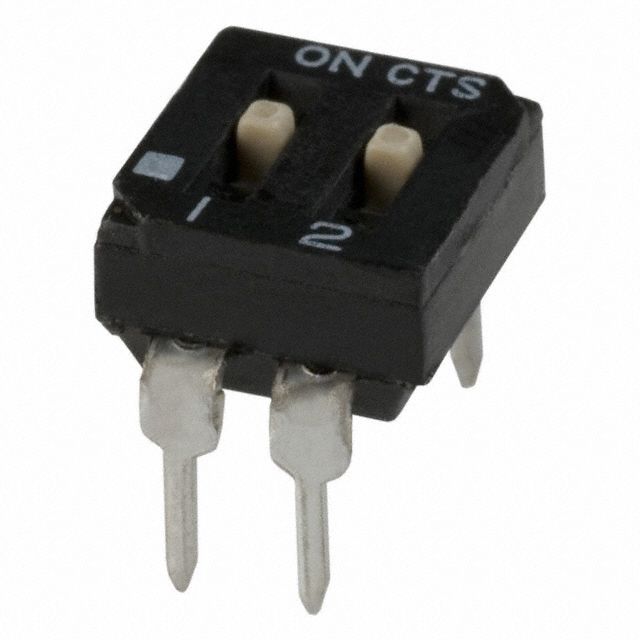

209-2LPST 209-2LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
2630 in stock

209-2MS 209-2MS

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.190" (4.83mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : Epoxy Sealed Terminals
Operating Temperature : -40°C ~ 85°C
0
100 in stock

209-3LPST 209-3LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
1985 in stock

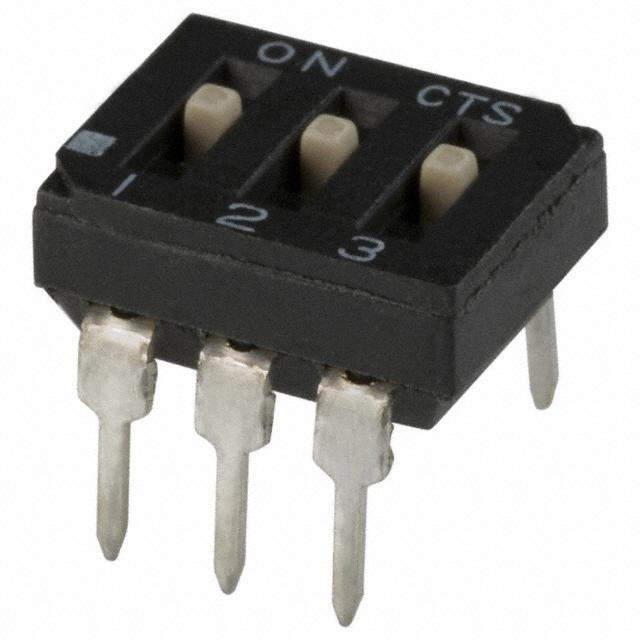

209-3MS 209-3MS

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.190" (4.83mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : Epoxy Sealed Terminals
Operating Temperature : -40°C ~ 85°C
0
1774 in stock

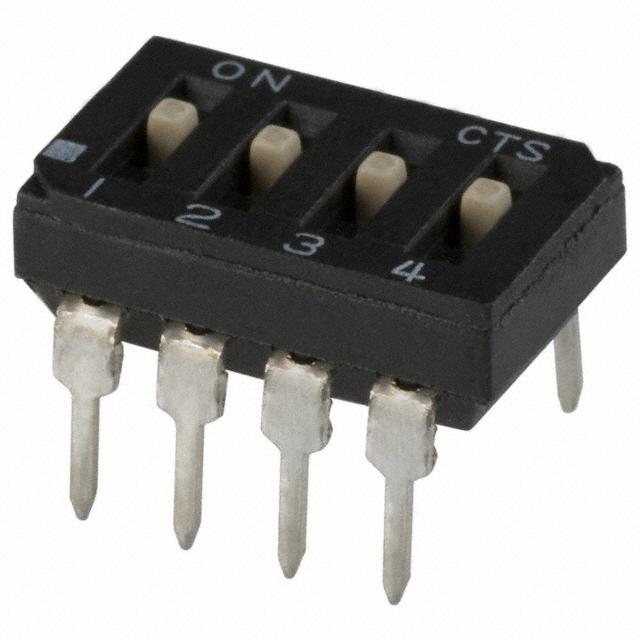

209-4LPST 209-4LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
3852 in stock

209-4MS 209-4MS

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 4
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.190" (4.83mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : Epoxy Sealed Terminals
Operating Temperature : -40°C ~ 85°C
0
40756 in stock

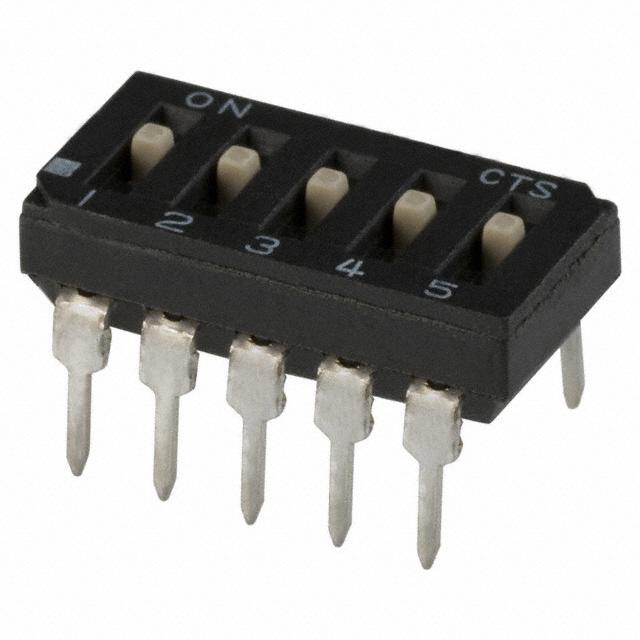

209-5LPST 209-5LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 5
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
958 in stock

209-5MS 209-5MS

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 5
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.190" (4.83mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : Epoxy Sealed Terminals
Operating Temperature : -40°C ~ 85°C
0
359 in stock

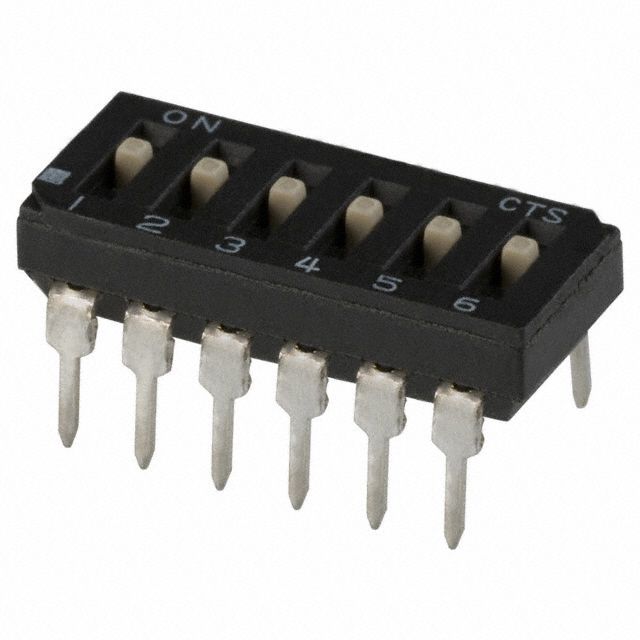

209-6LPST 209-6LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
1925 in stock

209-6MS 209-6MS

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 6
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.190" (4.83mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : No
Features : Epoxy Sealed Terminals
Operating Temperature : -40°C ~ 85°C
0
1064 in stock

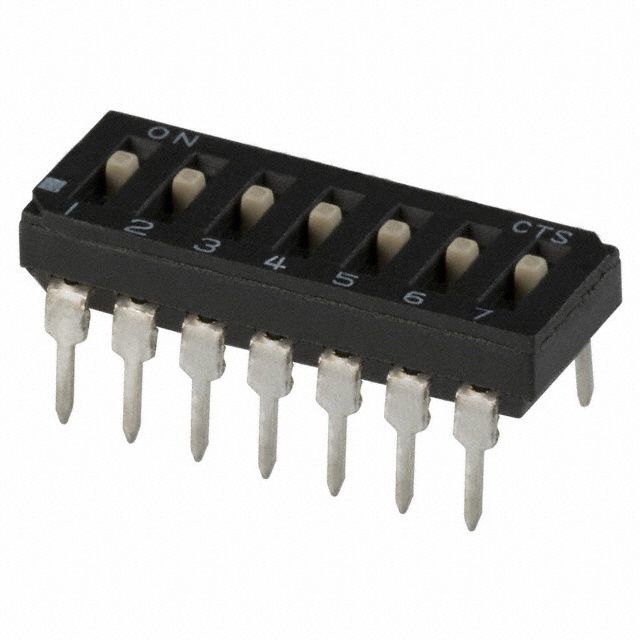

209-7LPST 209-7LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 7
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
491 in stock

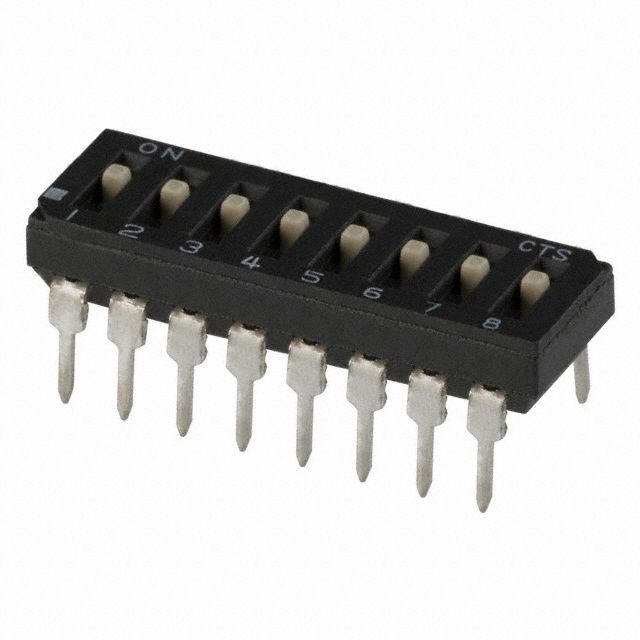

209-8LPST 209-8LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 209
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.180" (4.57mm)
Mounting Type : Through Hole
Termination Style : PC Pin
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -40°C ~ 85°C
0
10578 in stock
