CTS Electronic Components

- CTS Electronic Components is a division of CTS Corporation. The division has five product lines: Electrocomponents, Filters, Frequency Control, Resistors, and Thermal Management Solutions. The company manufactures an extensive array of frequency-control devices, ceramic RF filters and duplexers, EMI/RFI filters, capacitors, DIP and rotary switches, rotary and linear potentiometers, encoders, resistor and resistor/capacitor networks, and heat management components. With manufacturing locations in Albuquerque, New Mexico; Hopkinton, Massachusetts; Nogales, Mexico; Singapore; Zhongshan and Tianjin, China; and Kaohsiung, Taiwan; CTS is able to serve major markets such as medical, defense and aerospace, industrial controls, power management, HVAC, security, lighting, audio, communications, computer, and electronic networking.

Part Number
Manufacturer
Description
Unit Price
In Stock

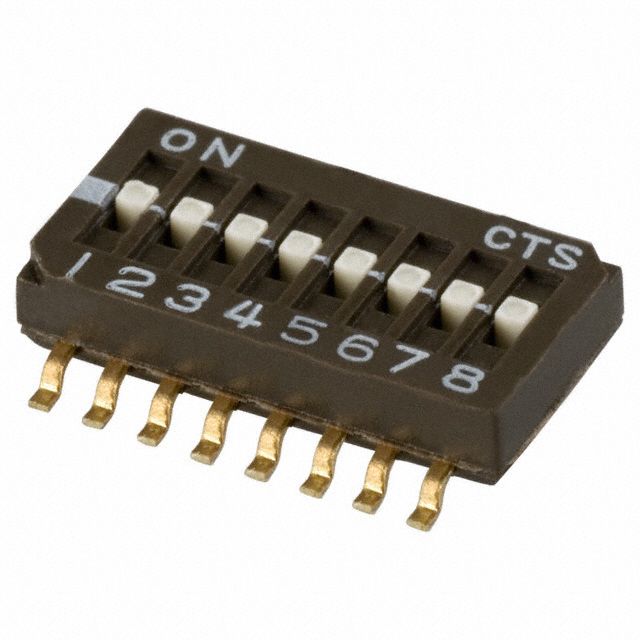

218-8LPSTR 218-8LPSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 218
Part Status : Active
Circuit : SPST
Number of Positions : 8
Current Rating : 25mA
Voltage Rating : 24VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.104" (2.65mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.050" (1.27mm), Half
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
4829 in stock

219-10LPST 219-10LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
2130 in stock

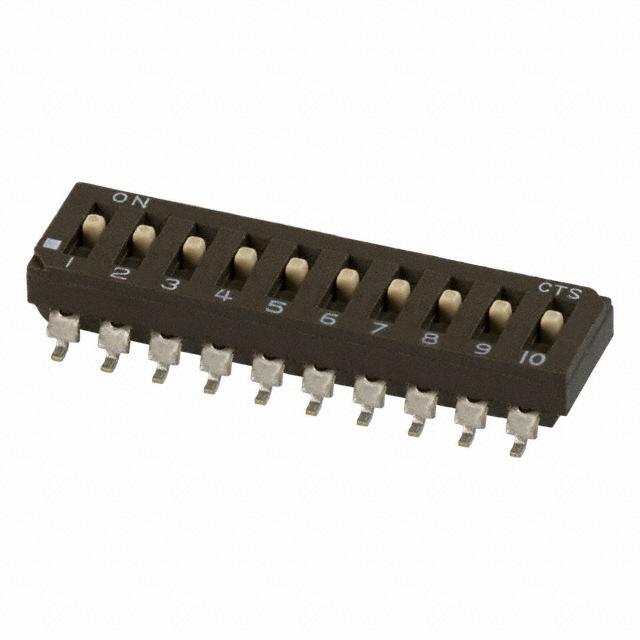

219-10MST 219-10MST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 10
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.170" (4.33mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
7118 in stock

219-12LPST 219-12LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 12
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
551 in stock

219-12MST 219-12MST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 12
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.170" (4.33mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
373 in stock

219-2LPST 219-2LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Alternate Packaging
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
14248 in stock

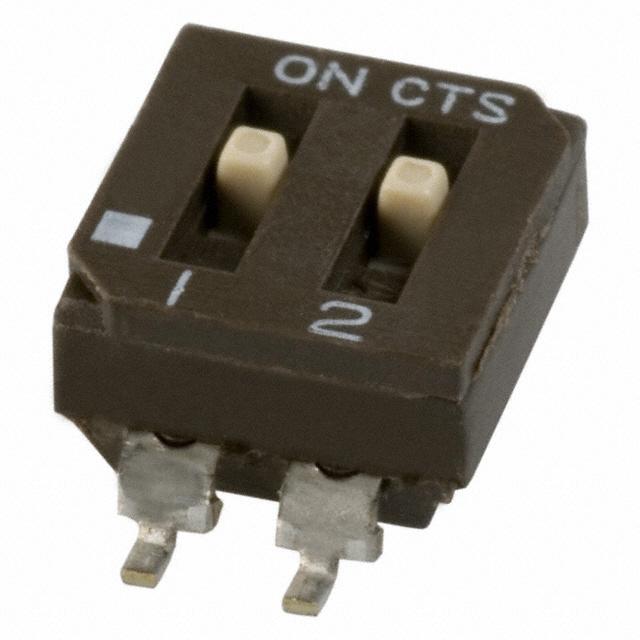

219-2LPSTR 219-2LPSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
5574 in stock

219-2MST 219-2MST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.170" (4.33mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
31404 in stock

219-2MSTR 219-2MSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 2
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.170" (4.33mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
12163 in stock

219-3LPST 219-3LPST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
6971 in stock

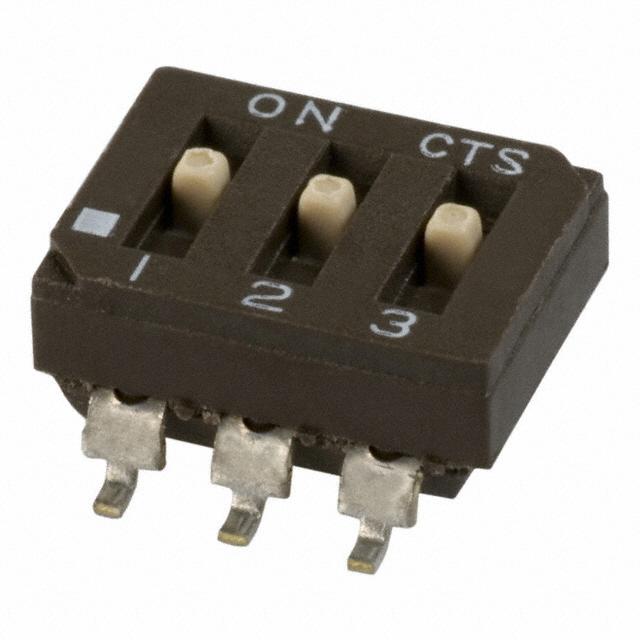

219-3LPSTR 219-3LPSTR

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Flush, Recessed
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.160" (4.06mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
13425 in stock

219-3MST 219-3MST

CTS Electronic Components
Manufacturer : CTS Electrocomponents
Packaging : Tube
Series : 219
Part Status : Active
Circuit : SPST
Number of Positions : 3
Current Rating : 100mA
Voltage Rating : 20VDC
Actuator Type : Slide (Standard)
Actuator Level : Raised
Contact Material : Beryllium Copper
Contact Finish : Gold
Height Above Board : 0.170" (4.33mm)
Mounting Type : Surface Mount
Termination Style : Gull Wing
Pitch : 0.100" (2.54mm), Full
Washable : Yes
Features : Epoxy Sealed Terminals, Tape Seal
Operating Temperature : -55°C ~ 85°C
0
12789 in stock
