Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

225P33394XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.033µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.339" W (20.30mm x 8.60mm)
Height - Seated (Max) : 0.650" (16.50mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

995 in stock

225P33491XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.33µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.520" W (20.30mm x 13.20mm)
Height - Seated (Max) : 0.772" (19.60mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1407 in stock

225P39291WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 3900pF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.252" W (17.78mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1283 in stock

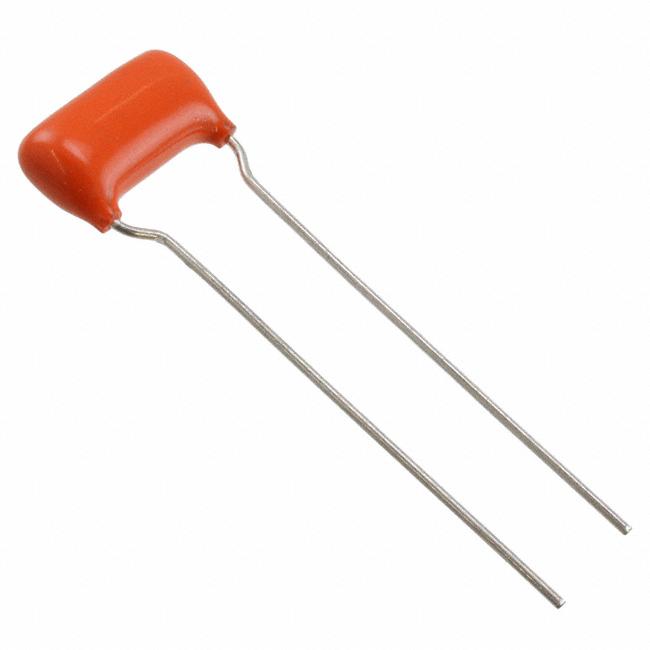

225P39391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.039µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.299" W (17.80mm x 7.60mm)
Height - Seated (Max) : 0.421" (10.70mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

333 in stock

225P47291WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.252" W (17.78mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

800 in stock

225P47294XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 4700pF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.252" W (20.30mm x 6.40mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1993 in stock

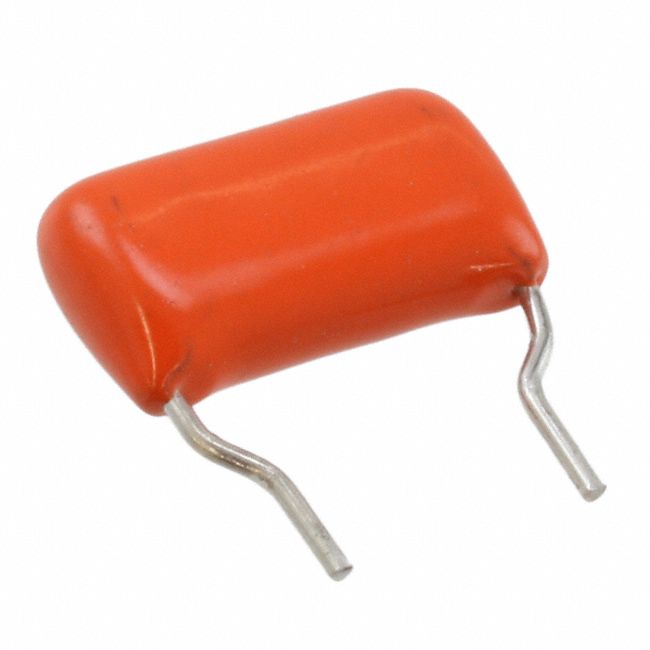

225P47391WD1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.299" W (17.80mm x 7.60mm)
Height - Seated (Max) : 0.421" (10.70mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

649 in stock

225P47391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.299" W (17.80mm x 7.60mm)
Height - Seated (Max) : 0.421" (10.70mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

963 in stock

225P47392XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 200V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.280" W (20.30mm x 7.10mm)
Height - Seated (Max) : 0.610" (15.50mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

2995 in stock

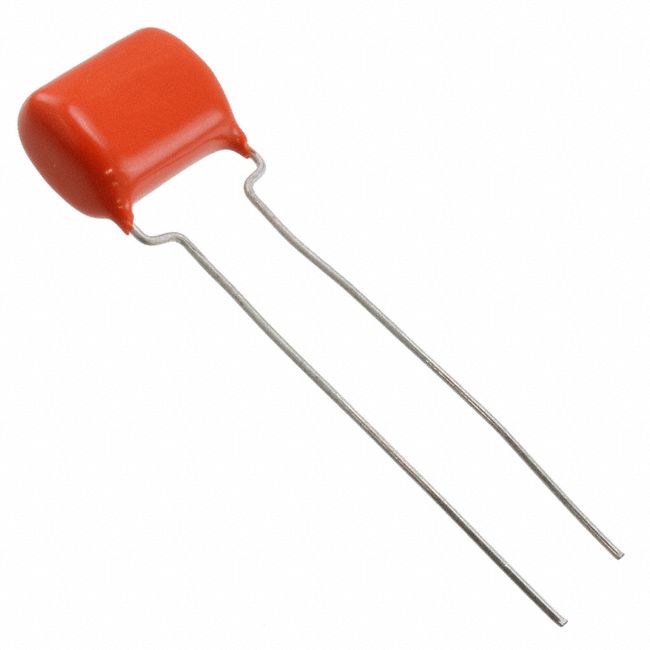

225P47394XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.409" W (20.30mm x 10.40mm)
Height - Seated (Max) : 0.650" (16.50mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

727 in stock

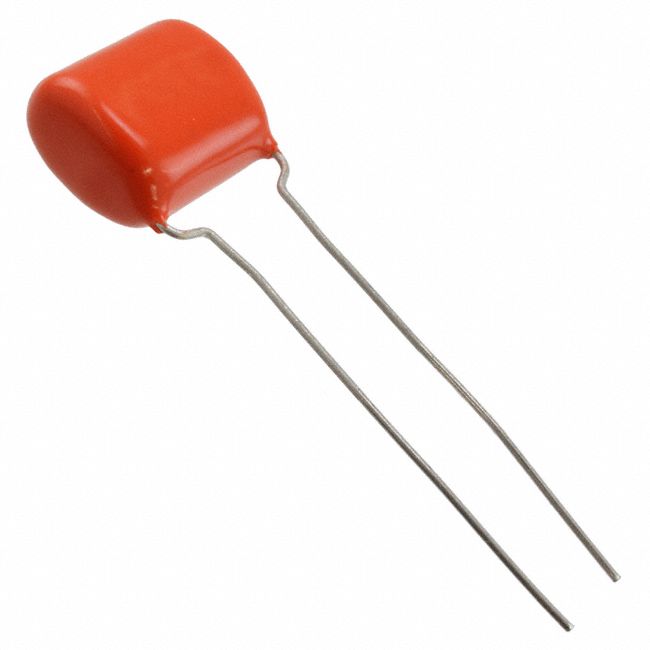

225P47491XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.598" W (20.30mm x 15.20mm)
Height - Seated (Max) : 0.709" (18.00mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

216 in stock

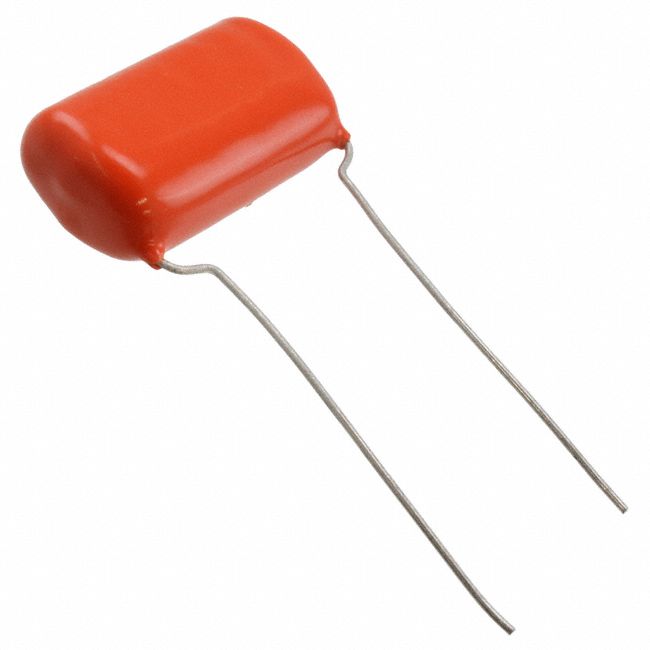

225P47492YD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 200V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.250" L x 0.500" W (31.75mm x 12.70mm)
Height - Seated (Max) : 0.831" (21.10mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1216 in stock
