Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

225P10294XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 1000pF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.252" W (20.30mm x 6.40mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

981 in stock

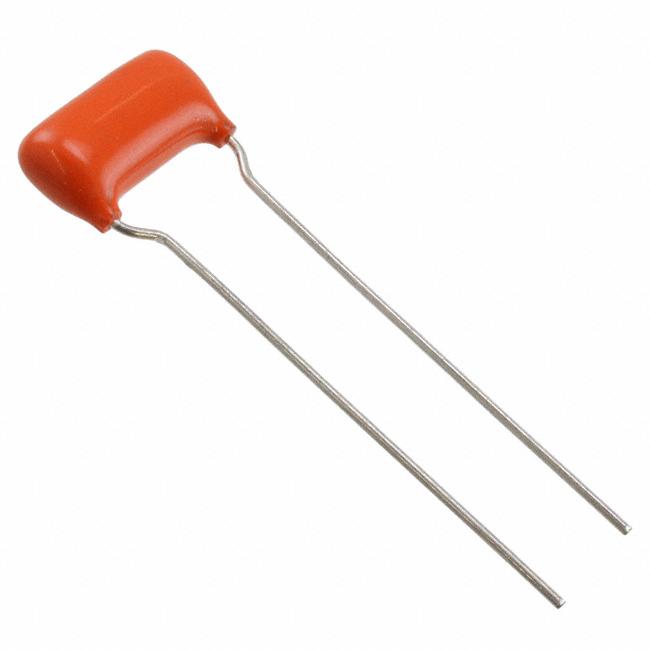

225P10391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.252" W (17.80mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

4319 in stock

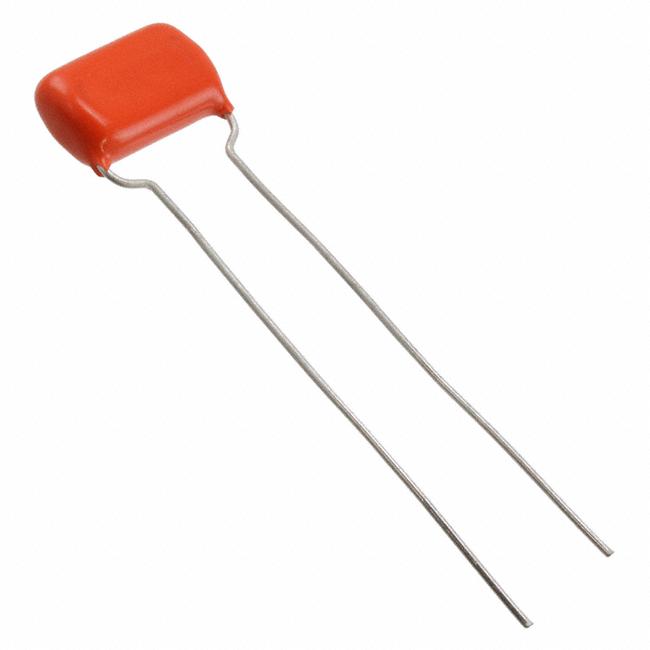

225P10392XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 200V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.252" W (20.30mm x 6.40mm)
Height - Seated (Max) : 0.579" (14.70mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

65 in stock

225P10394XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 10000pF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.252" W (20.30mm x 6.40mm)
Height - Seated (Max) : 0.579" (14.70mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

989 in stock

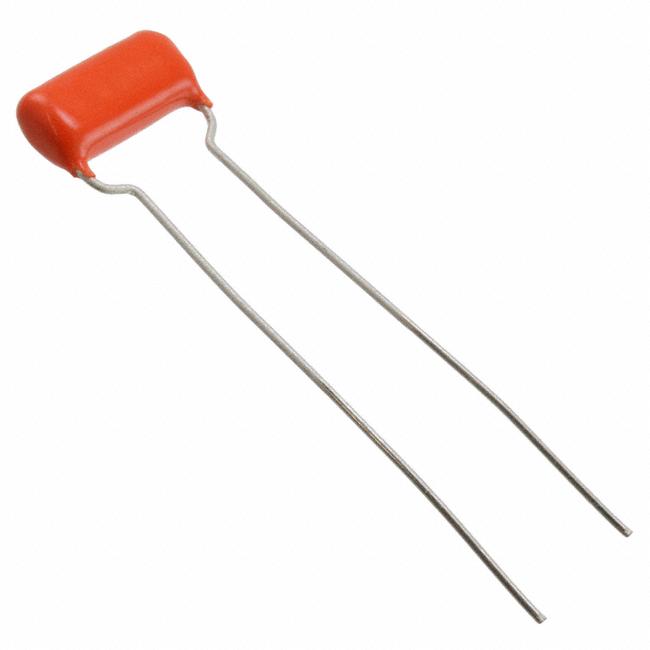

225P10491WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.402" W (17.78mm x 10.20mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

2709 in stock

225P10491WF1

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.402" W (17.78mm x 10.20mm)
Height - Seated (Max) : 0.551" (14.00mm)
Termination : PC Pins
Lead Spacing : 0.394" (10.00mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

3282 in stock

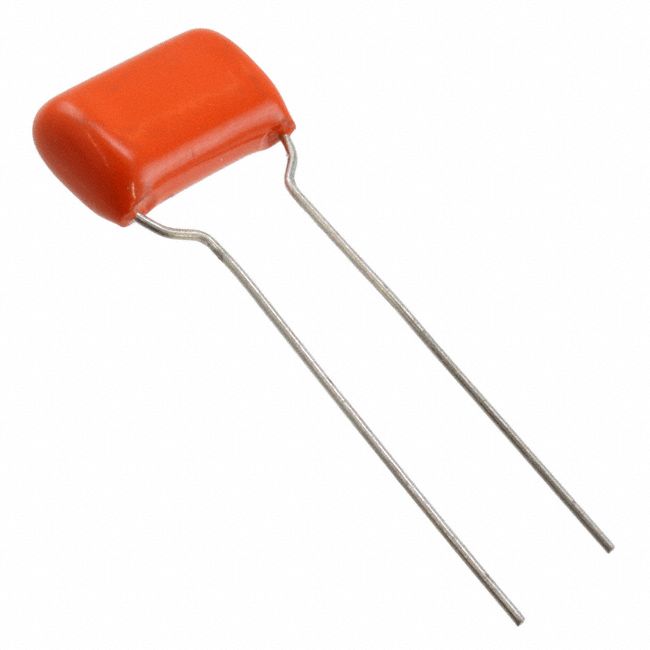

225P10492XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 200V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.370" W (20.30mm x 9.40mm)
Height - Seated (Max) : 0.709" (18.00mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1819 in stock

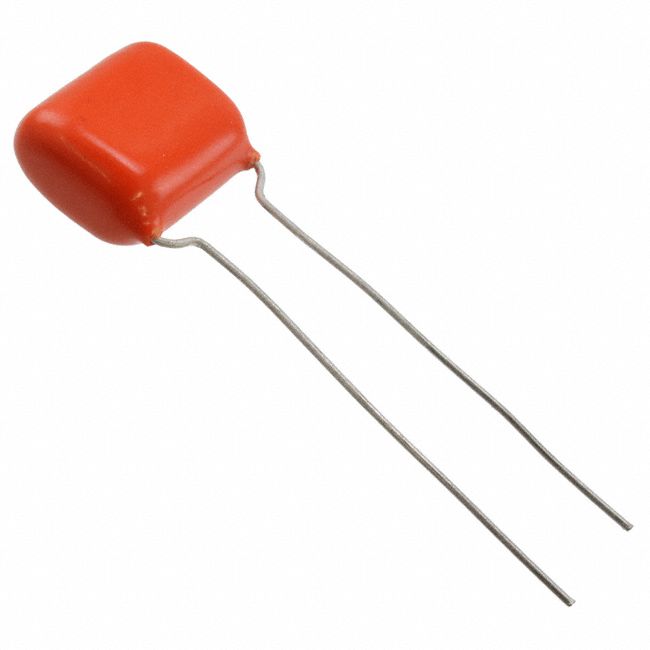

225P10494XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.520" W (20.30mm x 13.20mm)
Height - Seated (Max) : 0.839" (21.30mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

603 in stock

225P10496YA3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 600V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.252" L x 0.559" W (31.80mm x 14.20mm)
Height - Seated (Max) : 0.909" (23.10mm)
Termination : PC Pins
Lead Spacing : 0.969" (24.60mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

885 in stock

225P10591YD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 1µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.252" L x 0.720" W (31.80mm x 18.30mm)
Height - Seated (Max) : 0.980" (24.90mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

462 in stock

225P15291WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 1500pF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.252" W (17.80mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

997 in stock

225P15391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.015µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.252" W (17.78mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

834 in stock
