Cornell Dubilier

- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.


Part Number

Manufacturer

Description

Unit Price

In Stock

225P47494YD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.47µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.252" L x 0.839" W (31.80mm x 21.30mm)
Height - Seated (Max) : 1.142" (29.00mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1938 in stock

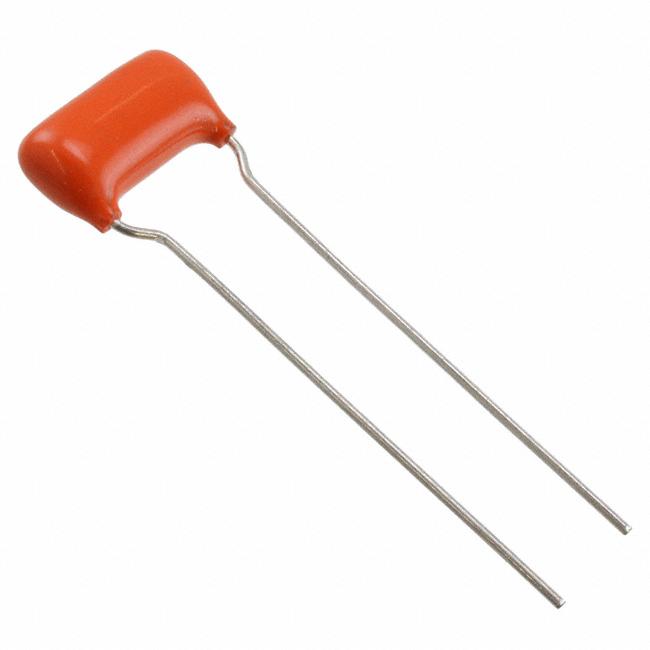

225P56291WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 5600pF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.252" W (17.78mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

100 in stock

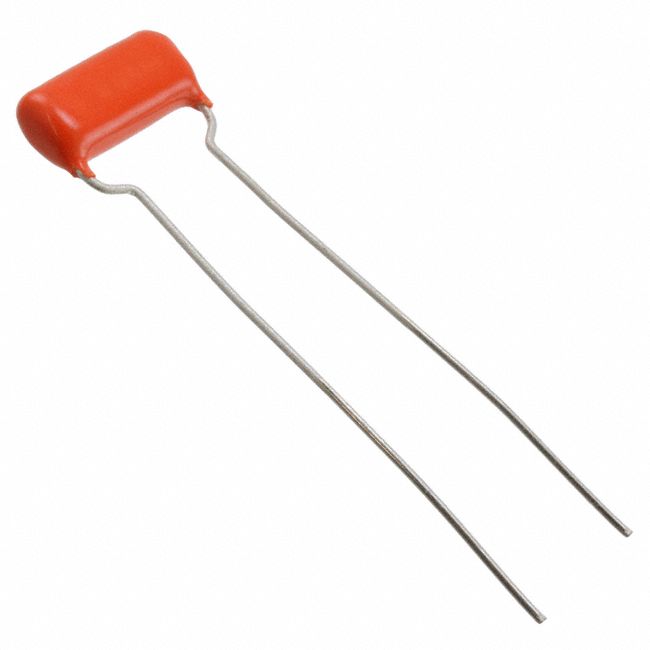

225P56391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.056µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.339" W (17.80mm x 8.60mm)
Height - Seated (Max) : 0.488" (12.40mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

1067 in stock

225P68291WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 6800pF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.700" L x 0.252" W (17.78mm x 6.40mm)
Height - Seated (Max) : 0.350" (8.90mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

333 in stock

225P68391WD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.068µF
Tolerance : ±10%
Voltage Rating - AC : 70V
Voltage Rating - DC : 100V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.701" L x 0.339" W (17.80mm x 8.60mm)
Height - Seated (Max) : 0.488" (12.40mm)
Termination : PC Pins
Lead Spacing : 0.375" (9.52mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

113 in stock

225P68394XD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.068µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 400V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 0.799" L x 0.469" W (20.30mm x 11.90mm)
Height - Seated (Max) : 0.799" (20.30mm)
Termination : PC Pins
Lead Spacing : 0.374" (9.50mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

788 in stock

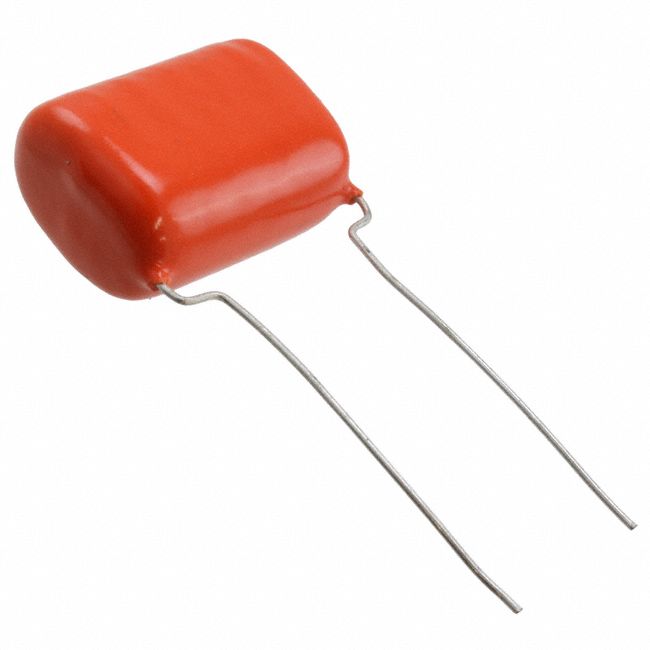

225P68492YD3

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Orange Drop® 225P
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±10%
Voltage Rating - AC : 140V
Voltage Rating - DC : 200V
Dielectric Material : Polyester
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.252" L x 0.839" W (31.80mm x 21.30mm)
Height - Seated (Max) : 1.142" (29.00mm)
Termination : PC Pins
Lead Spacing : 0.720" (18.30mm)
Applications : DC Link, DC Filtering
Ratings : -
Features : -

972 in stock

23FD3740A-F

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : MPF
Part Status : Active
Capacitance : 40µF
Tolerance : ±10%
Voltage Rating - AC : 370V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 70°C
Mounting Type : Chassis Mount, Requires Holder/Bracket
Package / Case : Radial, Can
Size / Dimension : 2.125" Dia (53.98mm), Lip
Height - Seated (Max) : 3.160" (80.26mm)
Termination : Quick Connect, Disconnect
Lead Spacing : 0.813" (20.64mm)
Applications : Motor Run; Power Factor Correction (PFC)
Ratings : -
Features : -

158 in stock

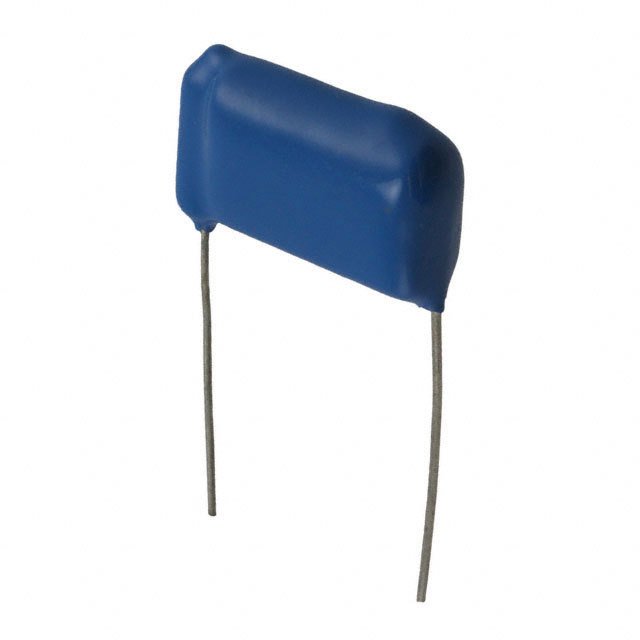

254M06QD100

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 100
Current : -
Values : R = 100 Ohms, C = 0.25µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.417" W (36.80mm x 10.60mm)
Height : 0.748" (19.00mm)

174 in stock

254M06QD150

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : Quencharc®
Part Status : Active
Type : Low Pass
Filter Order : 1st
Technology : RC
Number of Channels : 1
Center / Cutoff Frequency : -
Attenuation Value : -
Resistance - Channel (Ohms) : 150
Current : -
Values : R = 150 Ohms, C = 0.25µF
ESD Protection : No
Operating Temperature : -55°C ~ 85°C
Applications : General Purpose
Voltage - Rated : 600V
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.449" L x 0.417" W (36.80mm x 10.60mm)
Height : 0.748" (19.00mm)

740 in stock

27110B103JO0

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 271
Part Status : Active
Capacitance : 10000pF
Tolerance : ±5%
Voltage - Rated : 1kV
Dielectric Material : Mica
Operating Temperature : -55°C ~ 125°C
Mounting Type : Requires Holder
Package / Case : Rectangular Box
Lead Spacing : -
Features : General Purpose
Size / Dimension : 1.187" L x 0.937" W (30.15mm x 23.80mm)
Height - Seated (Max) : 1.187" (30.15mm)

172 in stock

29140B103JO0

Cornell Dubilier Electronics

Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : 291
Part Status : Active
Capacitance : 10000pF
Tolerance : ±5%
Voltage - Rated : 4kV
Dielectric Material : Mica
Operating Temperature : -55°C ~ 125°C
Mounting Type : Requires Holder
Package / Case : Axial, Can
Lead Spacing : -
Features : General Purpose
Size / Dimension : -
Height - Seated (Max) : -

1 in stock
