Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

CLU048-1212C4-273H7K4 CLU048-1212C4-273H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4010 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 107 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
47 in stock

CLU048-1212C4-273M2K1 CLU048-1212C4-273M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5321 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 142 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
8 in stock

CLU048-1212C4-303H5K2 CLU048-1212C4-303H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4594 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
47 in stock

CLU048-1212C4-303H7K4 CLU048-1212C4-303H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4191 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
31 in stock

CLU048-1212C4-303M2K1 CLU048-1212C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5562 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 149 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
78 in stock

CLU048-1212C4-30AL7K3 CLU048-1212C4-30AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5877 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 157 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
22 in stock

CLU048-1212C4-353H5K2 CLU048-1212C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4682 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
21 in stock

CLU048-1212C4-353M2K1 CLU048-1212C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5674 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 152 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
206 in stock

CLU048-1212C4-403H5K2 CLU048-1212C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4732 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
34 in stock

CLU048-1212C4-403H7K4 CLU048-1212C4-403H7K4

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4317 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 97
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
35 in stock

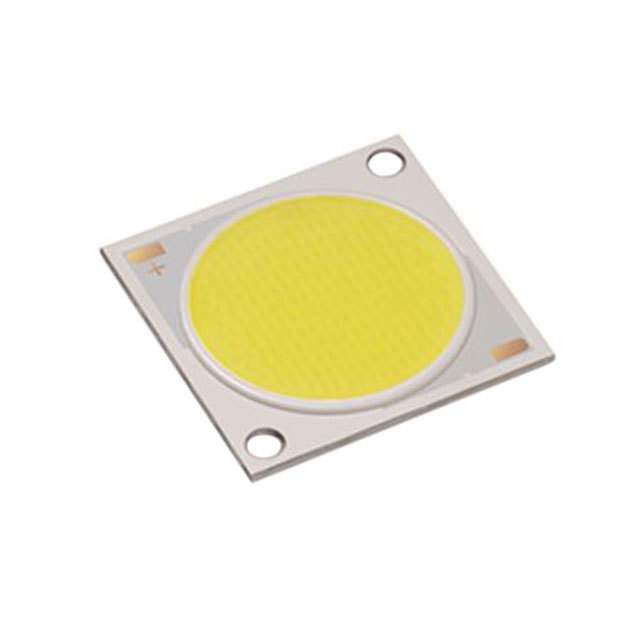

CLU048-1212C4-403M2K1 CLU048-1212C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5734 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 153 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
32 in stock

CLU048-1212C4-40AL7K3 CLU048-1212C4-40AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6069 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 162 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
17 in stock
