Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

CLU038-1210C4-303M2K1 CLU038-1210C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4384 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 141 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
48 in stock

CLU038-1210C4-30AL7K3 CLU038-1210C4-30AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4632 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 149 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
47 in stock

CLU038-1210C4-353H5K2 CLU038-1210C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3690 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
42 in stock

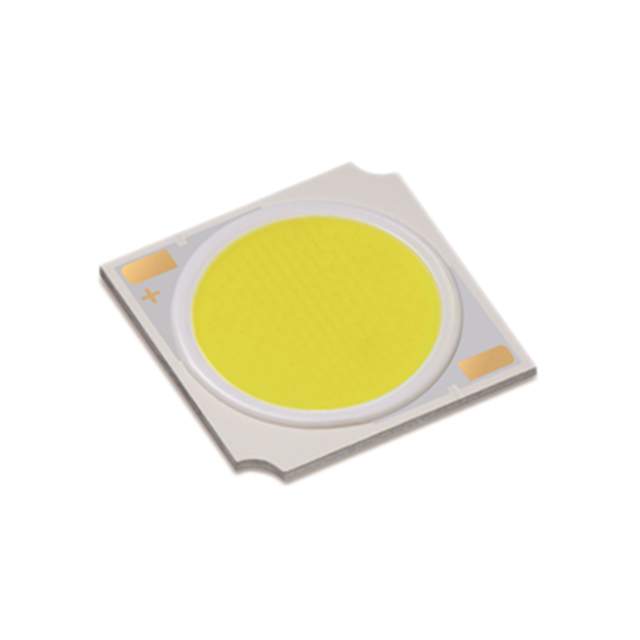

CLU038-1210C4-353M2K1 CLU038-1210C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4470 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 144 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
46 in stock

CLU038-1210C4-403H5K2 CLU038-1210C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3776 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
41 in stock

CLU038-1210C4-403M2K1 CLU038-1210C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4576 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 147 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
38 in stock

CLU038-1210C4-40AL7K3 CLU038-1210C4-40AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4844 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 156 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
45 in stock

CLU038-1210C4-50AL7K3 CLU038-1210C4-50AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU038
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4931 lm (Typ)
Current - Test : 900mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 158 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 14.50mm Diameter
Lens Type : Flat
0
85 in stock

CLU046-1212C1-303H5G3 CLU046-1212C1-303H5G3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU046
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4363 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
26 in stock

CLU046-1812C1-353M2G2 CLU046-1812C1-353M2G2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU046
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7851 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52V
Lumens/Watt @ Current - Test : 140 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
30 in stock

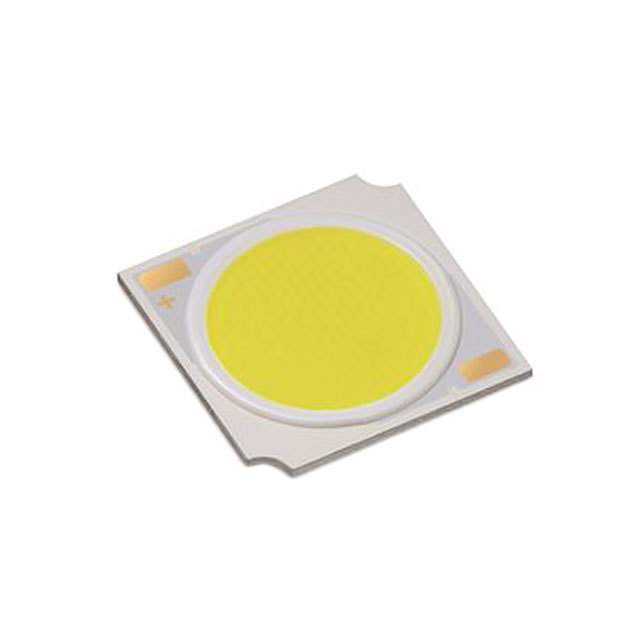

CLU046-1818C1-403H5G3 CLU046-1818C1-403H5G3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU046
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 9627 lm (Typ)
Current - Test : 1.62A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 52V
Lumens/Watt @ Current - Test : 114 lm/W
Current - Max : 4.14A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
62 in stock

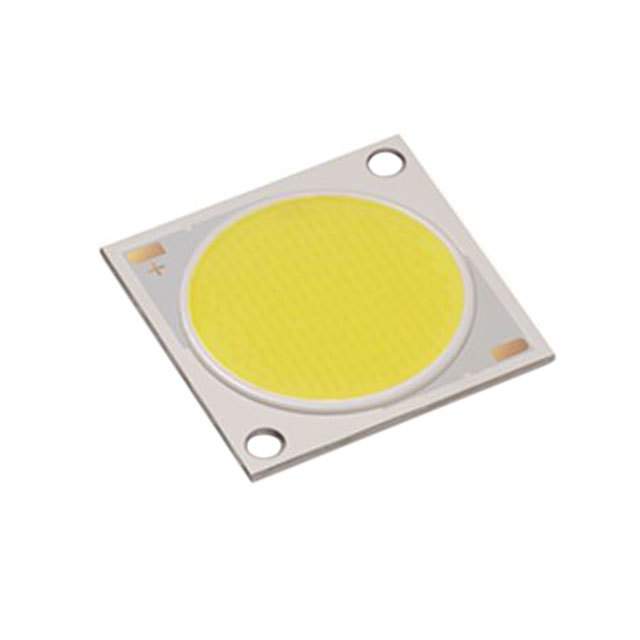

CLU048-1212C4-273H5K2 CLU048-1212C4-273H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Tray
Series : CLU048
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4396 lm (Typ)
Current - Test : 1.08A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 34.6V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 2.76A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : 1.40mm
Light Emitting Surface (LES) : 22.00mm Diameter
Lens Type : Flat
0
2 in stock
