- Transformers
- Pulse Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

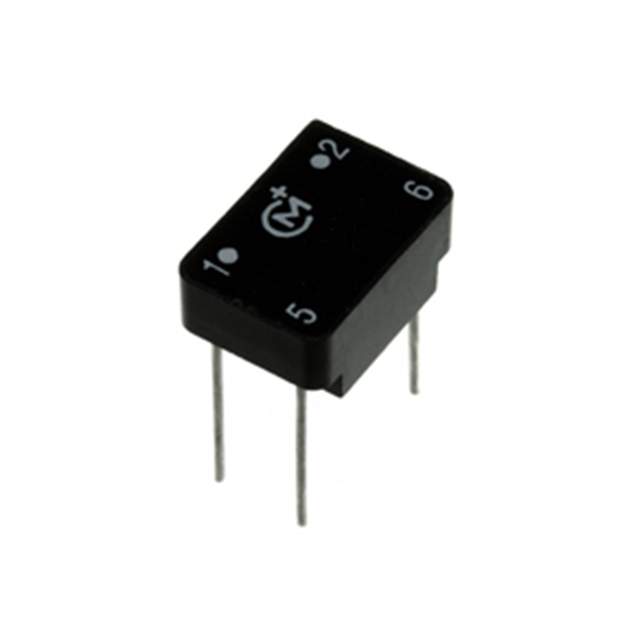

76601/24HVC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 11.7mH
Energy Time (E.T.) : 50.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 11.7mH
Energy Time (E.T.) : 50.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock

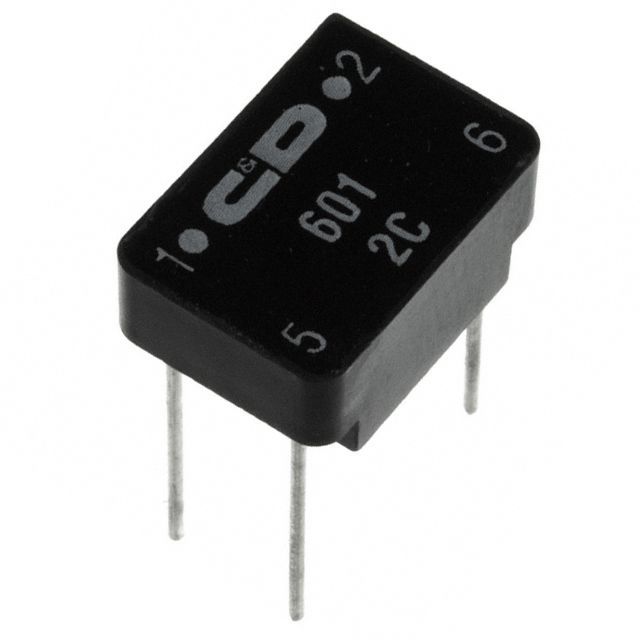

76601/2C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 492µH
Energy Time (E.T.) : 8.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 492µH
Energy Time (E.T.) : 8.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
0
850 in stock

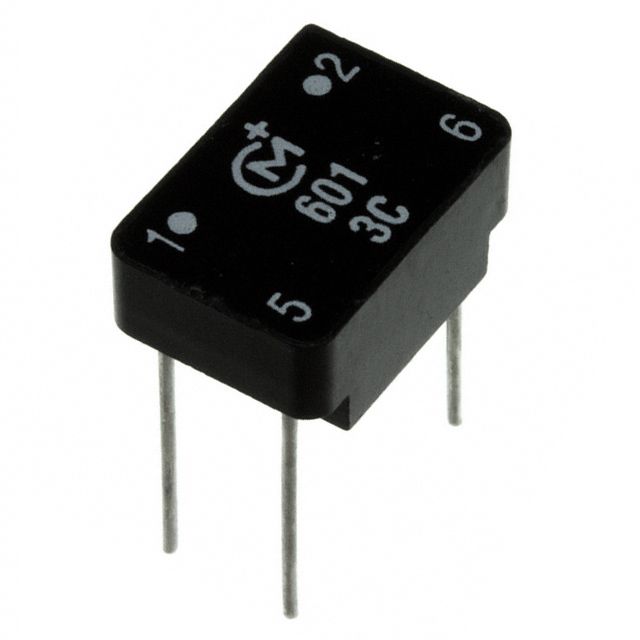

76601/3C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 219µH
Energy Time (E.T.) : 5.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 219µH
Energy Time (E.T.) : 5.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
0
722 in stock
76602/1C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 2.06mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 2.06mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
0
649 in stock

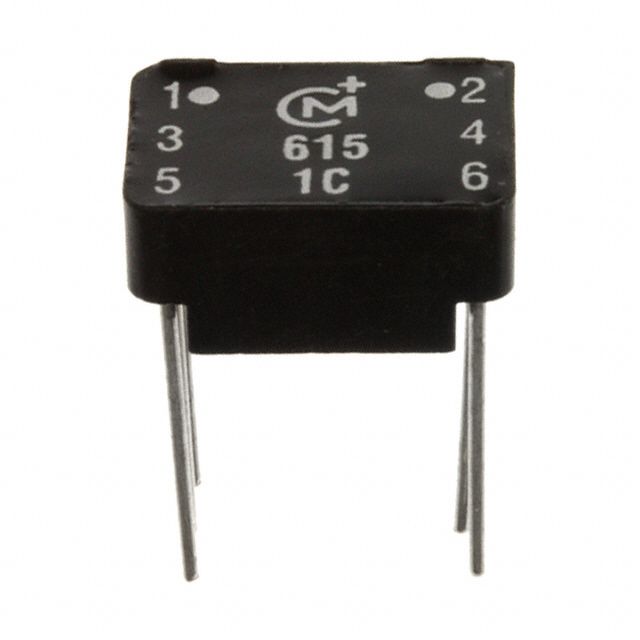

76615/1C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 3.2mH
Energy Time (E.T.) : 45V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 3.2mH
Energy Time (E.T.) : 45V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
0
1145 in stock
76615/1HVC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 3.2mH
Energy Time (E.T.) : 45V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 3.2mH
Energy Time (E.T.) : 45V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
100 in stock
76616/3C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 4.35mH
Energy Time (E.T.) : 23V µS
Turns Ratio - Primary:Secondary : 2CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 4.35mH
Energy Time (E.T.) : 23V µS
Turns Ratio - Primary:Secondary : 2CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock
77201C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : *
Part Status : Not For New Designs
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : *
Part Status : Not For New Designs
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
0
19 in stock

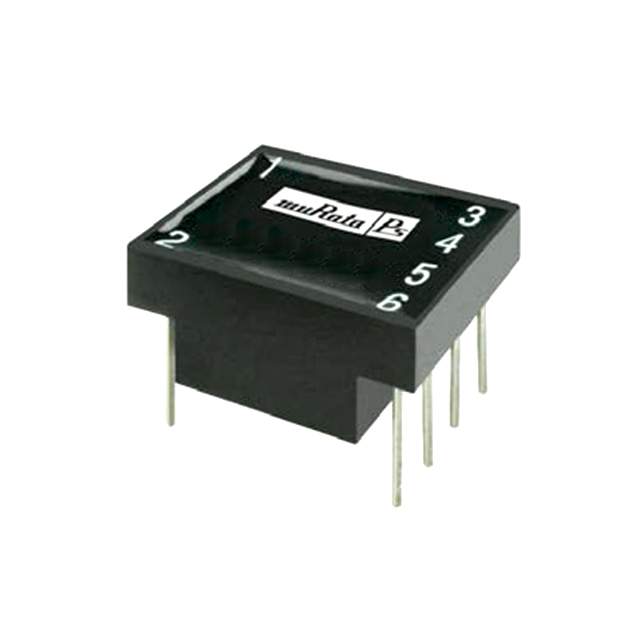

77202C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock
77203C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : *
Part Status : Not For New Designs
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : *
Part Status : Not For New Designs
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
0
53 in stock
77203HVC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 1mH
Energy Time (E.T.) : 120V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
0
101 in stock
77205C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 4mH
Energy Time (E.T.) : 240V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : *
Part Status : Active
Transformer Type : SCR and Triac Trigger (Encapsulated)
Inductance : 4mH
Energy Time (E.T.) : 240V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 1.000" L x 0.799" W (25.40mm x 20.30mm)
Height - Seated (Max) : 0.484" (12.30mm)
Operating Temperature : 0°C ~ 70°C
0
23 in stock
