- Transformers
- Pulse Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
760301305
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-GDT
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 735µH
Energy Time (E.T.) : 99V µS
Turns Ratio - Primary:Secondary : 1.5:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-GDT
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 735µH
Energy Time (E.T.) : 99V µS
Turns Ratio - Primary:Secondary : 1.5:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock

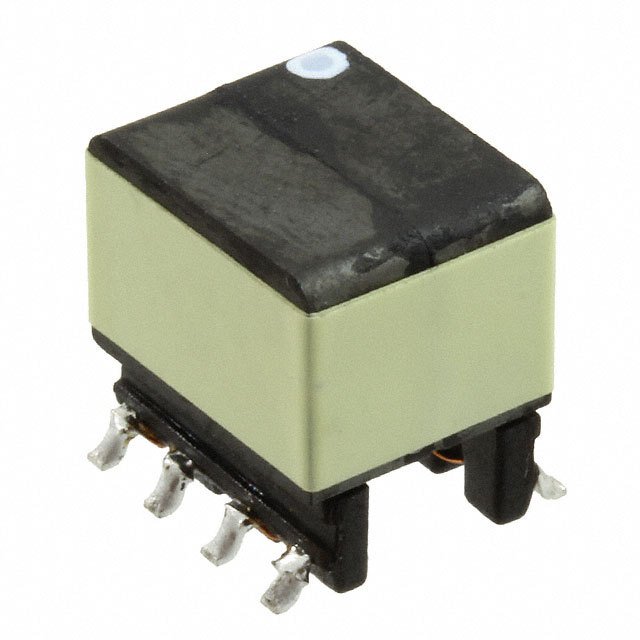

760301306
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-GDT
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 750µH
Energy Time (E.T.) : 140V µS
Turns Ratio - Primary:Secondary : 3:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-GDT
Part Status : Discontinued at
Transformer Type : Gate Drive
Inductance : 750µH
Energy Time (E.T.) : 140V µS
Turns Ratio - Primary:Secondary : 3:1:1
Mounting Type : Surface Mount
Size / Dimension : 0.413" L x 0.413" W (10.50mm x 10.50mm)
Height - Seated (Max) : 0.433" (11.00mm)
Operating Temperature : -40°C ~ 125°C
0
100 in stock

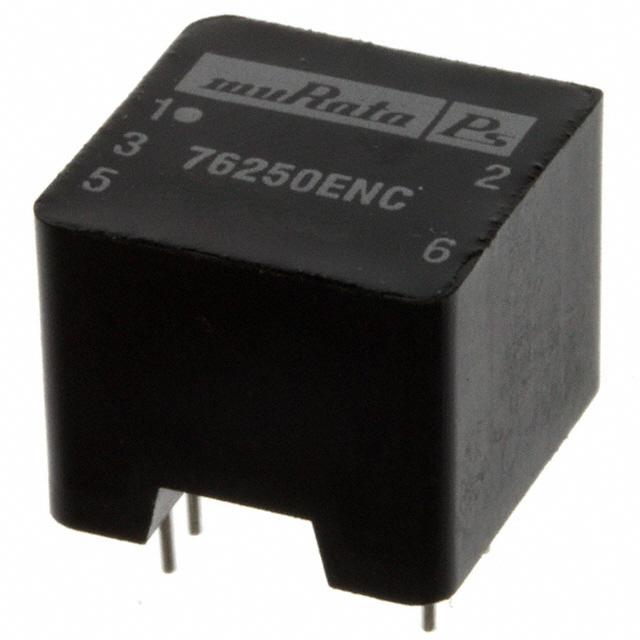

76250ENC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 2mH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1CT:1
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : 0°C ~ 70°C
0
478 in stock

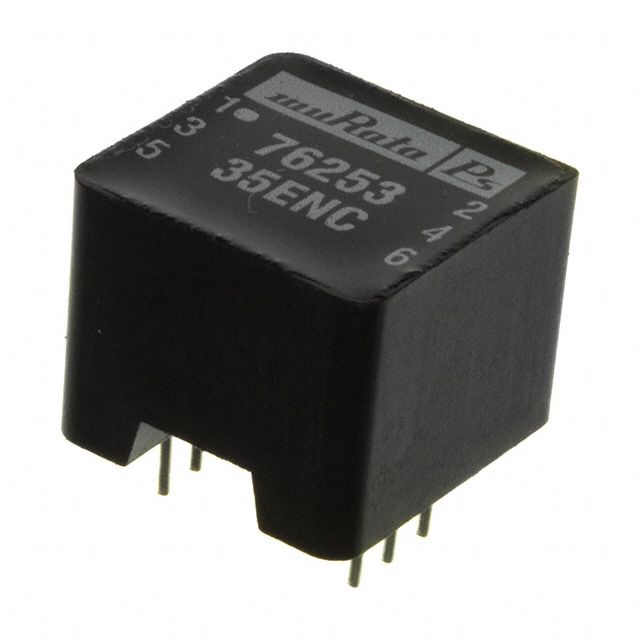

76253/35ENC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 200µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2.24
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 200µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:2.24
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : -40°C ~ 85°C
0
567 in stock

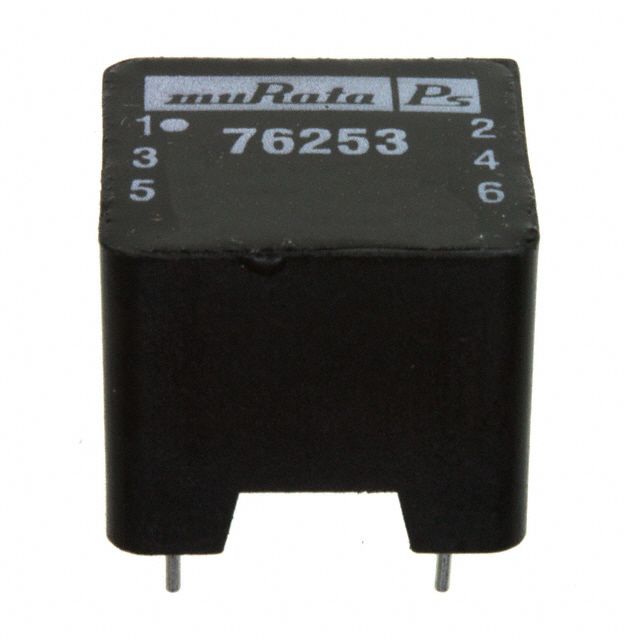

76253/55ENC
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 250µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1.33
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : -40°C ~ 85°C
Packaging : Tube
Series : -
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 250µH
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : 1:1.33
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) : 0.502" (12.75mm)
Operating Temperature : -40°C ~ 85°C
0
5940 in stock
76600/1C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 1.92mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 1.92mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock
76600/2C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 492µH
Energy Time (E.T.) : 8.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 492µH
Energy Time (E.T.) : 8.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
100 in stock
76600/3C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 219µH
Energy Time (E.T.) : 5.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 219µH
Energy Time (E.T.) : 5.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock

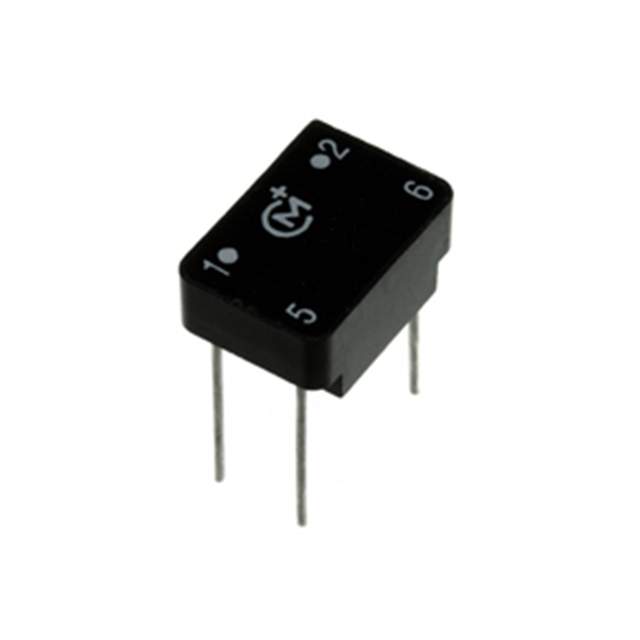

76600/4C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 50µH
Energy Time (E.T.) : 4V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 50µH
Energy Time (E.T.) : 4V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
100 in stock
76601/1C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 1.9mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Active
Transformer Type : General Purpose
Inductance : 1.9mH
Energy Time (E.T.) : 17.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.260" (6.60mm)
Operating Temperature : 0°C ~ 70°C
0
468 in stock
76601/23C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 700µH
Energy Time (E.T.) : 10.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Not For New Designs
Transformer Type : General Purpose
Inductance : 700µH
Energy Time (E.T.) : 10.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
100 in stock
76601/24C
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 766
Part Status : Obsolete
Transformer Type : General Purpose
Inductance : 11.7mH
Energy Time (E.T.) : 50.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
Packaging : Tube
Series : 766
Part Status : Obsolete
Transformer Type : General Purpose
Inductance : 11.7mH
Energy Time (E.T.) : 50.5V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
50 in stock
