Part Number
Manufacturer
Description
Unit Price
In Stock

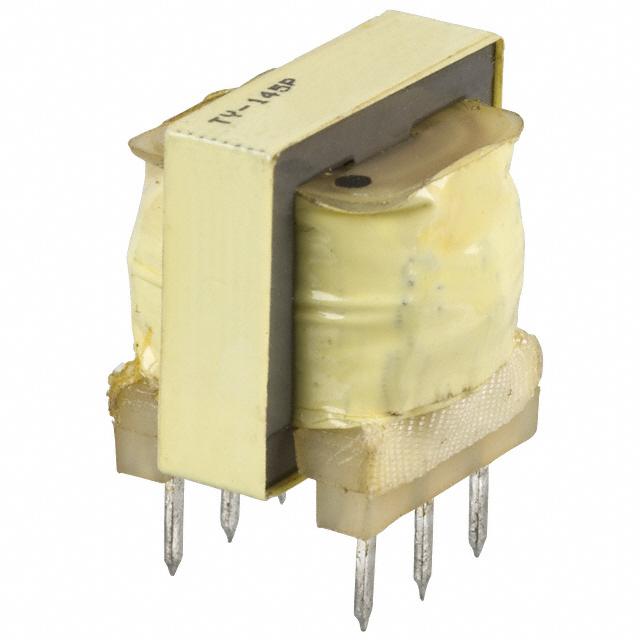

TY-145P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 44 Ohm
DC Resistance (DCR) - Secondary : 58 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : 1500V
Insertion Loss : 1.5dB
Return Loss : 26dB
Power Level : 100mW
Operating Temperature : 0°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : 44 Ohm
DC Resistance (DCR) - Secondary : 58 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : 1500V
Insertion Loss : 1.5dB
Return Loss : 26dB
Power Level : 100mW
Operating Temperature : 0°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
0
25038 in stock
TY-146P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 17 Ohm, 19 Ohm
DC Resistance (DCR) - Secondary : 14.5 Ohm, 22 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : 1500V
Insertion Loss : 1.5dB
Return Loss : 26dB
Power Level : 1W
Operating Temperature : 0°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.375" L x 1.187" W (34.93mm x 30.15mm)
Height - Seated (Max) : 1.187" (30.15mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 600, 150/150
DC Resistance (DCR) - Primary : 17 Ohm, 19 Ohm
DC Resistance (DCR) - Secondary : 14.5 Ohm, 22 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 15kHz
Frequency Response : ±2dB
Voltage - Isolation : 1500V
Insertion Loss : 1.5dB
Return Loss : 26dB
Power Level : 1W
Operating Temperature : 0°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.375" L x 1.187" W (34.93mm x 30.15mm)
Height - Seated (Max) : 1.187" (30.15mm)
Termination Style : PC Pin
0
1049 in stock
TY-250P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : -
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1, 2:1
Impedance - Primary (Ohms) : 1kCT
Impedance - Secondary (Ohms) : 1kCT
DC Resistance (DCR) - Primary : 172 Ohm
DC Resistance (DCR) - Secondary : 172 Ohm
Transformer Type : Impedance Matching
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500VAC
Insertion Loss : 2.8dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -40°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.800" L x 0.770" W (20.32mm x 19.56mm)
Height - Seated (Max) : 0.700" (17.78mm)
Termination Style : PC Pin
Packaging : -
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1, 2:1
Impedance - Primary (Ohms) : 1kCT
Impedance - Secondary (Ohms) : 1kCT
DC Resistance (DCR) - Primary : 172 Ohm
DC Resistance (DCR) - Secondary : 172 Ohm
Transformer Type : Impedance Matching
Frequency Range : 20Hz ~ 20kHz
Frequency Response : ±1dB
Voltage - Isolation : 1500VAC
Insertion Loss : 2.8dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -40°C ~ 105°C
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.800" L x 0.770" W (20.32mm x 19.56mm)
Height - Seated (Max) : 0.700" (17.78mm)
Termination Style : PC Pin
0
2923 in stock
TY-300P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:2.48
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -
Voltage - Isolation : 1500VAC
Insertion Loss : 0.8dB Typ
Return Loss : 30dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:2.48
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -
Voltage - Isolation : 1500VAC
Insertion Loss : 0.8dB Typ
Return Loss : 30dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
0
715 in stock
TY-302P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.47
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -
Voltage - Isolation : 1500VAC
Insertion Loss : 0.65dB Typ
Return Loss : 32dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.040" L x 0.960" W (26.42mm x 24.38mm)
Height - Seated (Max) : 0.870" (22.10mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.47
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600/600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : -
Voltage - Isolation : 1500VAC
Insertion Loss : 0.65dB Typ
Return Loss : 32dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.040" L x 0.960" W (26.42mm x 24.38mm)
Height - Seated (Max) : 0.870" (22.10mm)
Termination Style : PC Pin
0
45 in stock
TY-303P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 2.43:1
Impedance - Primary (Ohms) : 4k
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 2.43:1
Impedance - Primary (Ohms) : 4k
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
0
88 in stock
TY-304P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.05
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.790" L x 0.812" W (20.07mm x 20.62mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.05
Impedance - Primary (Ohms) : 600CT
Impedance - Secondary (Ohms) : 600CT
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.790" L x 0.812" W (20.07mm x 20.62mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
0
6991 in stock
TY-305P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:0.90
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.5dB Typ
Return Loss : 10dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max) : 0.680" (17.27mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:0.90
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.5dB Typ
Return Loss : 10dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max) : 0.680" (17.27mm)
Termination Style : PC Pin
0
180 in stock
TY-306P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.5dB Typ
Return Loss : 10dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max) : 0.680" (17.27mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600, 150/150
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.5dB Typ
Return Loss : 10dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max) : 0.680" (17.27mm)
Termination Style : PC Pin
0
859 in stock
TY-307P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.07
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.670" L x 0.781" W (17.02mm x 19.84mm)
Height - Seated (Max) : 0.470" (11.94mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.07
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.670" L x 0.781" W (17.02mm x 19.84mm)
Height - Seated (Max) : 0.470" (11.94mm)
Termination Style : PC Pin
0
3592 in stock
TY-311P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.05
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.05
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1dB Typ
Return Loss : 26dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.812" L x 0.715" W (20.62mm x 18.16mm)
Height - Seated (Max) : 0.740" (18.80mm)
Termination Style : PC Pin
0
100 in stock
TY-400P
Triad Magnetics
Manufacturer : Triad Magnetics
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.07
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.75dB Typ
Return Loss : 15dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.820" L x 0.715" W (20.83mm x 18.16mm)
Height - Seated (Max) : 0.750" (19.05mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TY
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1.07
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1500VAC
Insertion Loss : 1.75dB Typ
Return Loss : 15dB Typ
Power Level : -45dB ~ 7dB
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.820" L x 0.715" W (20.83mm x 18.16mm)
Height - Seated (Max) : 0.750" (19.05mm)
Termination Style : PC Pin
0
3258 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
