- Transformers
- Audio Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock

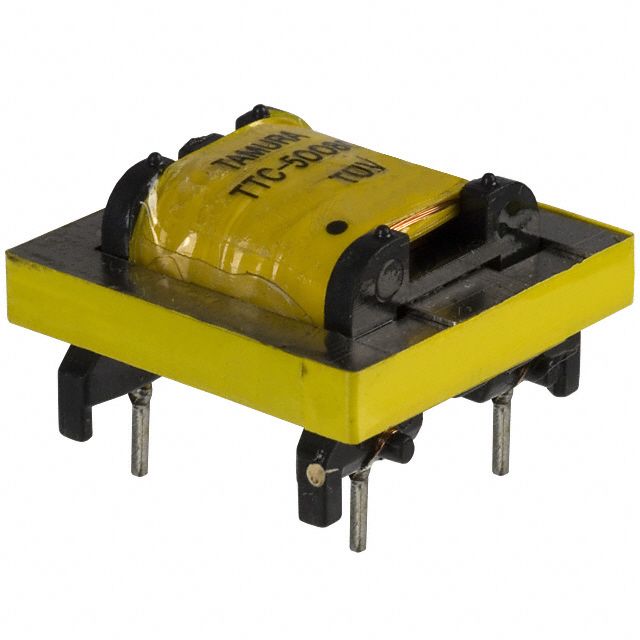

TTC-5008
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 374
DC Resistance (DCR) - Primary : 108 Ohm
DC Resistance (DCR) - Secondary : 120 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.2dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 2.5dB Max @ 1kHz
Return Loss : 25dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 374
DC Resistance (DCR) - Primary : 108 Ohm
DC Resistance (DCR) - Secondary : 120 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.2dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 2.5dB Max @ 1kHz
Return Loss : 25dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5009
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 530
DC Resistance (DCR) - Primary : 46 Ohm
DC Resistance (DCR) - Secondary : 45 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1dB Max @ 1kHz
Return Loss : 20dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 530
DC Resistance (DCR) - Primary : 46 Ohm
DC Resistance (DCR) - Secondary : 45 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1dB Max @ 1kHz
Return Loss : 20dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5010
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 301
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : 3.75dB
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.929" L x 0.976" W (23.60mm x 24.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 301
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : Data/Voice Coupling
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : 3.75dB
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.929" L x 0.976" W (23.60mm x 24.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5012
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : 1dB Typ
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.929" L x 0.976" W (23.60mm x 24.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : -
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : -
DC Resistance (DCR) - Secondary : -
Transformer Type : -
Frequency Range : -
Frequency Response : -
Voltage - Isolation : -
Insertion Loss : 1dB Typ
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : -
Mounting Type : Through Hole
Size / Dimension : 0.929" L x 0.976" W (23.60mm x 24.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5014
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 348
DC Resistance (DCR) - Primary : 149 Ohm
DC Resistance (DCR) - Secondary : 139 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.25dB Max @ 1kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL60950
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 348
DC Resistance (DCR) - Primary : 149 Ohm
DC Resistance (DCR) - Secondary : 139 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.25dB Max @ 1kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL60950
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
0
560 in stock
TTC-5017
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 59 Ohm
DC Resistance (DCR) - Secondary : 59 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL60950
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 59 Ohm
DC Resistance (DCR) - Secondary : 59 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL60950
Mounting Type : Through Hole
Size / Dimension : 0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max) : 0.472" (12.00mm)
Termination Style : PC Pin
0
14989 in stock
TTC-5018
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 25 Ohm
DC Resistance (DCR) - Secondary : 21 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 0.75dB Max @ 1kHz
Return Loss : 20dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 25 Ohm
DC Resistance (DCR) - Secondary : 21 Ohm
Transformer Type : -
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 0.75dB Max @ 1kHz
Return Loss : 20dB Min @ 1kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5019
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 260
DC Resistance (DCR) - Primary : 170 Ohm
DC Resistance (DCR) - Secondary : 170 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±2.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 4dB Max @ 1kHz
Return Loss : 8dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-95, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 260
DC Resistance (DCR) - Primary : 170 Ohm
DC Resistance (DCR) - Secondary : 170 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±2.5dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 4dB Max @ 1kHz
Return Loss : 8dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-95, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
100 in stock
TTC-5020
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 301
DC Resistance (DCR) - Primary : 152 Ohm
DC Resistance (DCR) - Secondary : 152 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±1dB ~ ±4dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.75dB Max @ 1kHz
Return Loss : -
Power Level : -20dB ~ 4dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-95, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
Packaging : Bulk
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 301
DC Resistance (DCR) - Primary : 152 Ohm
DC Resistance (DCR) - Secondary : 152 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±1dB ~ ±4dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.75dB Max @ 1kHz
Return Loss : -
Power Level : -20dB ~ 4dB
Operating Temperature : -
Approvals : CSA-C22.2 No. 950-95, UL1950
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.909" W (22.50mm x 23.10mm)
Height - Seated (Max) : 0.543" (13.80mm)
Termination Style : PC Pin
0
85 in stock
TTC-5021
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 287
DC Resistance (DCR) - Primary : 155 Ohm
DC Resistance (DCR) - Secondary : 145 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.85dB Max @ 1kHz
Return Loss : 20dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Surface Mount
Size / Dimension : 0.335" L x 0.642" W (8.50mm x 16.30mm)
Height - Seated (Max) : 0.200" (5.08mm)
Termination Style : Gull Wing
Packaging : Tape & Reel (TR)
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 287
DC Resistance (DCR) - Primary : 155 Ohm
DC Resistance (DCR) - Secondary : 145 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 3.85dB Max @ 1kHz
Return Loss : 20dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950, EN60950
Mounting Type : Surface Mount
Size / Dimension : 0.335" L x 0.642" W (8.50mm x 16.30mm)
Height - Seated (Max) : 0.200" (5.08mm)
Termination Style : Gull Wing
0
100 in stock
TTC-5023
Tamura
Manufacturer : Tamura
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 115 Ohm
DC Resistance (DCR) - Secondary : 115 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 3000VRMS @ 1 Minute
Insertion Loss : 2dB Max @ 2kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -20°C ~ 85°C
Approvals : UL60950, EN60950
Mounting Type : Surface Mount
Size / Dimension : 0.378" L x 0.492" W (9.60mm x 12.50mm)
Height - Seated (Max) : 0.299" (7.60mm)
Termination Style : Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TTC
Part Status : Active
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 600
DC Resistance (DCR) - Primary : 115 Ohm
DC Resistance (DCR) - Secondary : 115 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 200Hz ~ 4kHz
Frequency Response : ±0.25dB
Voltage - Isolation : 3000VRMS @ 1 Minute
Insertion Loss : 2dB Max @ 2kHz
Return Loss : 14dB Min @ 200Hz ~ 4kHz
Power Level : -
Operating Temperature : -20°C ~ 85°C
Approvals : UL60950, EN60950
Mounting Type : Surface Mount
Size / Dimension : 0.378" L x 0.492" W (9.60mm x 12.50mm)
Height - Seated (Max) : 0.299" (7.60mm)
Termination Style : Flat Lead
0
9 in stock
TTC-5026
Tamura
Manufacturer : Tamura
Packaging : Tape & Reel (TR)
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 490CT
DC Resistance (DCR) - Primary : 23.8 Ohm
DC Resistance (DCR) - Secondary : 47.8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.3dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950
Mounting Type : Surface Mount
Size / Dimension : 0.532" L x 0.551" W (13.50mm x 14.00mm)
Height - Seated (Max) : 0.409" (10.40mm)
Termination Style : Gull Wing
Packaging : Tape & Reel (TR)
Series : TTC
Part Status : Obsolete
Turns Ratio - Primary:Secondary : 1:1
Impedance - Primary (Ohms) : 600
Impedance - Secondary (Ohms) : 490CT
DC Resistance (DCR) - Primary : 23.8 Ohm
DC Resistance (DCR) - Secondary : 47.8 Ohm
Transformer Type : Data/Voice Coupling
Frequency Range : 300Hz ~ 3.5kHz
Frequency Response : ±0.3dB
Voltage - Isolation : 1875VRMS @ 1 Second
Insertion Loss : 1.5dB Max @ 1kHz
Return Loss : -
Power Level : -
Operating Temperature : -
Approvals : UL1950, UL60950
Mounting Type : Surface Mount
Size / Dimension : 0.532" L x 0.551" W (13.50mm x 14.00mm)
Height - Seated (Max) : 0.409" (10.40mm)
Termination Style : Gull Wing
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
