Part Number
Manufacturer
Description
Unit Price
In Stock
PE42552MLIB-CAZ
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Bulk
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 7.5GHz
Isolation : 28dB
Insertion Loss : 1dB
Test Frequency : 7.5GHz
P1dB : 34dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Bulk
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 7.5GHz
Isolation : 28dB
Insertion Loss : 1dB
Test Frequency : 7.5GHz
P1dB : 34dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
100 in stock
PE42552MLIB-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 7.5GHz
Isolation : 28dB
Insertion Loss : 1dB
Test Frequency : 7.5GHz
P1dB : 34dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : DC ~ 7.5GHz
Isolation : 28dB
Insertion Loss : 1dB
Test Frequency : 7.5GHz
P1dB : 34dBm
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
100 in stock
PE42553A-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : SPDT
Frequency Range : 9kHz ~ 8GHz
Isolation : 45dB
Insertion Loss : 0.85dB
Test Frequency : 3GHz
P1dB : -
IIP3 : 66dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : SPDT
Frequency Range : 9kHz ~ 8GHz
Isolation : 45dB
Insertion Loss : 0.85dB
Test Frequency : 3GHz
P1dB : -
IIP3 : 66dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
17198 in stock
PE42556DBI
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tray
Series : UltraCMOS®
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 26dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
Packaging : Tray
Series : UltraCMOS®
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 26dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
0
100 in stock
PE42556DI
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Strip
Series : UltraCMOS®
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 26dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
Packaging : Strip
Series : UltraCMOS®
Part Status : Obsolete
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 26dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
0
100 in stock
PE42556DI-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : Cellular
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 17.5dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : Cellular
Topology : Absorptive
Circuit : SPDT
Frequency Range : 9kHz ~ 13.5GHz
Isolation : 17.5dB
Insertion Loss : 1.74dB
Test Frequency : 13.5GHz
P1dB : 33dBm
IIP3 : 56dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.6 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 14-XFBGA, FCDSBGA
Supplier Device Package : 14-FlipChip (1.1x2)
0
100 in stock
PE4256MLIAA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 3GHz
Isolation : 52dB
Insertion Loss : 1.1dB
Test Frequency : 2.2GHz
P1dB : 31dBm
IIP3 : 55dBm
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.7 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-VFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 3GHz
Isolation : 52dB
Insertion Loss : 1.1dB
Test Frequency : 2.2GHz
P1dB : 31dBm
IIP3 : 55dBm
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.7 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-VFQFN Exposed Pad
Supplier Device Package : 20-QFN (4x4)
0
17779 in stock
PE42641MLBC-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Reflective
Circuit : SP4T
Frequency Range : 100MHz ~ 3GHz
Isolation : 27.5dB
Insertion Loss : 0.55dB
Test Frequency : 2.2GHz
P1dB : -
IIP3 : 68dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 2.85 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Reflective
Circuit : SP4T
Frequency Range : 100MHz ~ 3GHz
Isolation : 27.5dB
Insertion Loss : 0.55dB
Test Frequency : 2.2GHz
P1dB : -
IIP3 : 68dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 2.85 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
100 in stock
PE42641MLBD-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : CDMA, GSM
Topology : -
Circuit : SP4T
Frequency Range : 100MHz ~ 3GHz
Isolation : 29dB
Insertion Loss : 0.45dB
Test Frequency : 2GHz, 1GHz
P1dB : -
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 2.85 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : CDMA, GSM
Topology : -
Circuit : SP4T
Frequency Range : 100MHz ~ 3GHz
Isolation : 29dB
Insertion Loss : 0.45dB
Test Frequency : 2GHz, 1GHz
P1dB : -
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 2.85 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
29151 in stock
PE42650AMLI-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Reflective
Circuit : SP3T
Frequency Range : 30MHz ~ 1GHz
Isolation : 38dB
Insertion Loss : 0.3dB
Test Frequency : 800MHz, 1GHz
P1dB : -
IIP3 : 30dBm (min)
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 3.2 V ~ 3.4 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad
Supplier Device Package : 32-QFN (5x5)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : General Purpose
Topology : Reflective
Circuit : SP3T
Frequency Range : 30MHz ~ 1GHz
Isolation : 38dB
Insertion Loss : 0.3dB
Test Frequency : 800MHz, 1GHz
P1dB : -
IIP3 : 30dBm (min)
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 3.2 V ~ 3.4 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad
Supplier Device Package : 32-QFN (5x5)
0
100 in stock

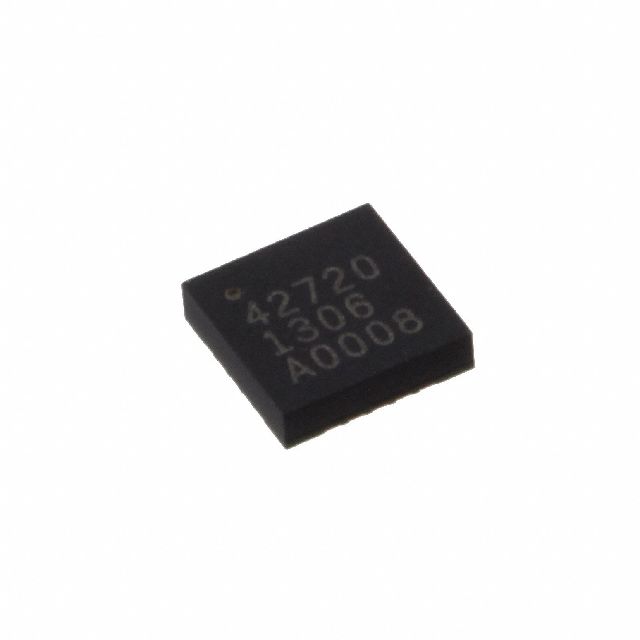

PE42720LGBB-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 3GHz
Isolation : 63dB
Insertion Loss : 1dB
Test Frequency : 3GHz
P1dB : -
IIP3 : -
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Obsolete
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 3GHz
Isolation : 63dB
Insertion Loss : 1dB
Test Frequency : 3GHz
P1dB : -
IIP3 : -
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
0
100 in stock
PE42721MLBA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Discontinued at
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 2.2GHz
Isolation : 55dB
Insertion Loss : 0.65dB
Test Frequency : 2.2GHz
P1dB : -
IIP3 : 60dBm
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-WFQFN Exposed Pad
Supplier Device Package : 12-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Discontinued at
RF Type : CATV
Topology : Absorptive
Circuit : SPDT
Frequency Range : 5MHz ~ 2.2GHz
Isolation : 55dB
Insertion Loss : 0.65dB
Test Frequency : 2.2GHz
P1dB : -
IIP3 : 60dBm
Features : -
Impedance : 75 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-WFQFN Exposed Pad
Supplier Device Package : 12-QFN (3x3)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
