Welcome to Weijie Semiconductor
- RF/IF and RFID
- RF Switches
Part Number
Manufacturer
Description
Unit Price
In Stock
PE423641MLAA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : WCDMA
Topology : Reflective
Circuit : SP4T
Frequency Range : 50MHz ~ 3GHz
Isolation : 32dB
Insertion Loss : 0.5dB
Test Frequency : 1GHz
P1dB : 37dBm
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 3.3 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : WCDMA
Topology : Reflective
Circuit : SP4T
Frequency Range : 50MHz ~ 3GHz
Isolation : 32dB
Insertion Loss : 0.5dB
Test Frequency : 1GHz
P1dB : 37dBm
IIP3 : 68dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 3.3 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
1323 in stock
PE42420D-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 50dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3V
Operating Temperature : -40°C ~ 105°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : -
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 50dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3V
Operating Temperature : -40°C ~ 105°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
0
5399 in stock
PE42420LGBB-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Discontinued at
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 50dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 33dBm (min)
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
Packaging : Tape & Reel (TR)
Series : UltraCMOS®, HaRP™
Part Status : Discontinued at
RF Type : General Purpose
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 50dB
Insertion Loss : 1.6dB
Test Frequency : 6GHz
P1dB : 33dBm (min)
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.7 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 20-TFLGA Exposed Pad
Supplier Device Package : 20-LGA (4x4)
0
100 in stock

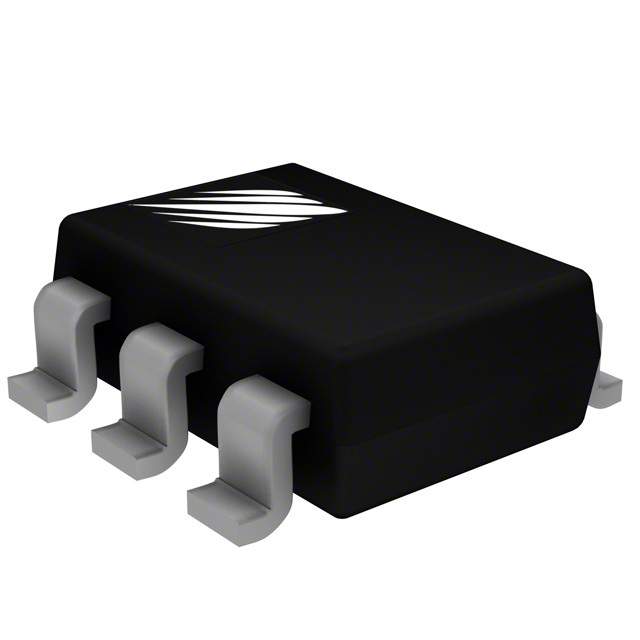

PE42421SCAA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SPDT
Frequency Range : 10MHz ~ 3GHz
Isolation : 20dB
Insertion Loss : 0.5dB
Test Frequency : 2GHz
P1dB : 30.5dBm
IIP3 : 55dBm
Features : Single/Dual Line Control
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SPDT
Frequency Range : 10MHz ~ 3GHz
Isolation : 20dB
Insertion Loss : 0.5dB
Test Frequency : 2GHz
P1dB : 30.5dBm
IIP3 : 55dBm
Features : Single/Dual Line Control
Impedance : 50 Ohm
Voltage - Supply : 1.8 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
42833 in stock
PE42422MLAA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 17dB
Insertion Loss : 0.9dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 70dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 17dB
Insertion Loss : 0.9dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 70dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 12-UFQFN Exposed Pad
Supplier Device Package : 12-QFN (2x2)
0
67390 in stock
PE42423MLBA-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : 802.11a/b/g/n/ac
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 41dB
Insertion Loss : 0.95dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : 802.11a/b/g/n/ac
Topology : Absorptive
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 41dB
Insertion Loss : 0.95dB
Test Frequency : 6GHz
P1dB : -
IIP3 : 65dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
37540 in stock
PE42424A-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : 802.11a/b/g/n/ac
Topology : Reflective
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 48dB
Insertion Loss : 0.8dB
Test Frequency : 2.4GHz, 2.5GHz
P1dB : 41dBm
IIP3 : 61dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN (1.5x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : 802.11a/b/g/n/ac
Topology : Reflective
Circuit : SPDT
Frequency Range : 100MHz ~ 6GHz
Isolation : 48dB
Insertion Loss : 0.8dB
Test Frequency : 2.4GHz, 2.5GHz
P1dB : 41dBm
IIP3 : 61dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : 6-DFN (1.5x1.5)
0
31082 in stock
PE42426A-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : SPDT
Frequency Range : 5MHz ~ 6GHz
Isolation : 20dB
Insertion Loss : 0.75dB
Test Frequency : 6GHz
P1dB : -
IIP3 : -
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 12-WFQFN Exposed Pad
Supplier Device Package : 12-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
RF Type : -
Topology : -
Circuit : SPDT
Frequency Range : 5MHz ~ 6GHz
Isolation : 20dB
Insertion Loss : 0.75dB
Test Frequency : 6GHz
P1dB : -
IIP3 : -
Features : -
Impedance : 50 Ohm
Voltage - Supply : 2.3 V ~ 5.5 V
Operating Temperature : -40°C ~ 105°C
Package / Case : 12-WFQFN Exposed Pad
Supplier Device Package : 12-QFN (3x3)
0
3797 in stock
PE42430MLAB-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SP3T
Frequency Range : 100MHz ~ 3GHz
Isolation : 30dB
Insertion Loss : 0.55dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 66dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-UFDFN Exposed Pad
Supplier Device Package : 8-DFN (1.5x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SP3T
Frequency Range : 100MHz ~ 3GHz
Isolation : 30dB
Insertion Loss : 0.55dB
Test Frequency : 2.5GHz
P1dB : -
IIP3 : 66dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Package / Case : 8-UFDFN Exposed Pad
Supplier Device Package : 8-DFN (1.5x1.5)
0
31704 in stock
PE42440MLBB-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SP4T
Frequency Range : 50MHz ~ 3GHz
Isolation : 22dB
Insertion Loss : 0.85dB
Test Frequency : 3GHz
P1dB : 41.5dBm
IIP3 : 66dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®, HaRP™
Part Status : Active
RF Type : General Purpose
Topology : Reflective
Circuit : SP4T
Frequency Range : 50MHz ~ 3GHz
Isolation : 22dB
Insertion Loss : 0.85dB
Test Frequency : 3GHz
P1dB : 41.5dBm
IIP3 : 66dBm
Features : DC Blocked
Impedance : 50 Ohm
Voltage - Supply : 2.65 V ~ 3.3 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-WFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
8384 in stock
PE42441B-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : WLAN
Topology : Absorptive
Circuit : SP4T
Frequency Range : 10MHz ~ 8GHz
Isolation : 45dB
Insertion Loss : 0.8dB
Test Frequency : 3GHz
P1dB : -
IIP3 : 58dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.55 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad
Supplier Device Package : 32-LGA (5x5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : WLAN
Topology : Absorptive
Circuit : SP4T
Frequency Range : 10MHz ~ 8GHz
Isolation : 45dB
Insertion Loss : 0.8dB
Test Frequency : 3GHz
P1dB : -
IIP3 : 58dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3 V ~ 3.55 V
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad
Supplier Device Package : 32-LGA (5x5)
0
13197 in stock
PE42442A-Z
Peregrine Semiconductor (pSemi)
Manufacturer : pSemi
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : 3G/4G
Topology : Absorptive
Circuit : SP4T
Frequency Range : 30MHz ~ 6GHz
Isolation : 61dB
Insertion Loss : 1.1dB
Test Frequency : 900MHz
P1dB : -
IIP3 : 58dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3.3V
Operating Temperature : -40°C ~ 105°C
Package / Case : 24-WFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : UltraCMOS®
Part Status : Active
RF Type : 3G/4G
Topology : Absorptive
Circuit : SP4T
Frequency Range : 30MHz ~ 6GHz
Isolation : 61dB
Insertion Loss : 1.1dB
Test Frequency : 900MHz
P1dB : -
IIP3 : 58dBm
Features : -
Impedance : 50 Ohm
Voltage - Supply : 3.3V
Operating Temperature : -40°C ~ 105°C
Package / Case : 24-WFQFN Exposed Pad
Supplier Device Package : 24-QFN (4x4)
0
4289 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
