Part Number
Manufacturer
Description
Unit Price
In Stock

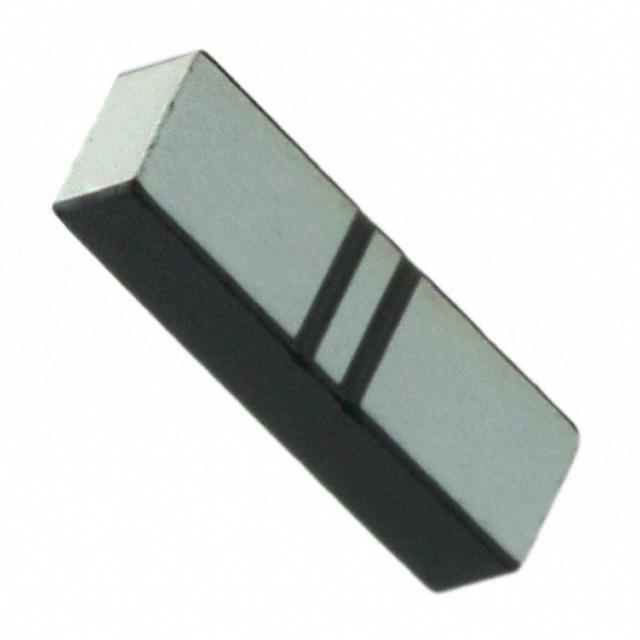

W3022
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.9GHz
Frequency Range : 1.88GHz ~ 1.93GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -12dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.9GHz
Frequency Range : 1.88GHz ~ 1.93GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -12dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
625 in stock
W3024
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 719MHz
Frequency Range : 716MHz ~ 722MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 719MHz
Frequency Range : 716MHz ~ 722MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
100 in stock
W3028
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.8GHz
Frequency Range : 1.805GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -9dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.8GHz
Frequency Range : 1.805GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -9dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
W3029
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 2GHz
Frequency Range : 1.93GHz ~ 1.99GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 2GHz
Frequency Range : 1.93GHz ~ 1.99GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
W3030
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 2.11GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 2.11GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : -
0
100 in stock
W3031
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 881MHz
Frequency Range : 869MHz ~ 894MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5.5dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 881MHz
Frequency Range : 869MHz ~ 894MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5.5dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
100 in stock
W3032
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 925MHz ~ 960MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 925MHz ~ 960MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -5dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM
0
100 in stock
W3040
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 1.92GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : WCDMA
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.1GHz
Frequency Range : 1.92GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : WCDMA
0
100 in stock

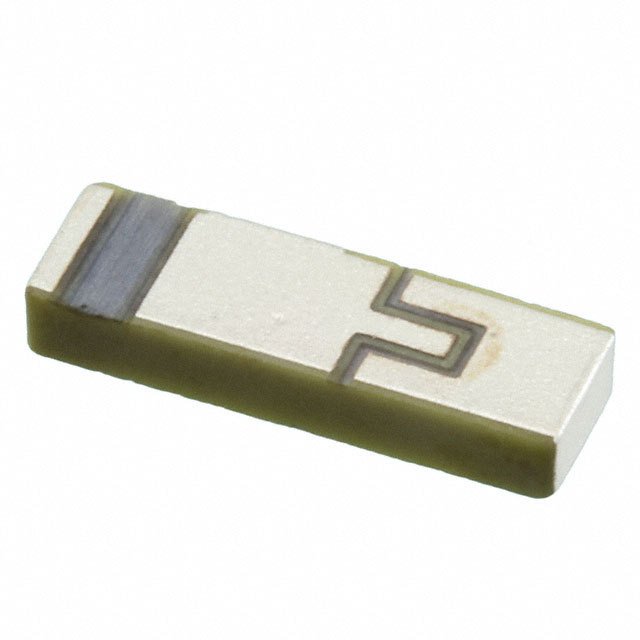

W3056
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 1.575GHz, 2.4GHz
Frequency Range : 1.575GHz, 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -20dB
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : Bluetooth, GPS, WLAN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 1.575GHz, 2.4GHz
Frequency Range : 1.575GHz, 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -20dB
Gain : -
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : Bluetooth, GPS, WLAN
0
451 in stock

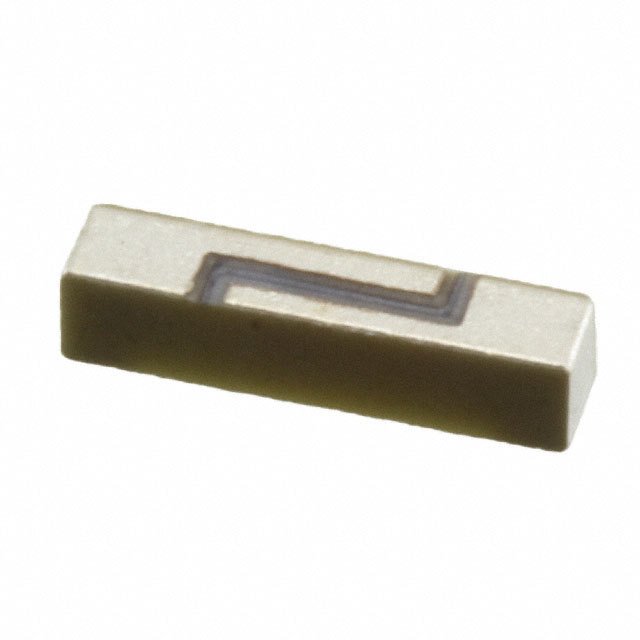

W3062A
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.063" (1.60mm)
Applications : GPS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.063" (1.60mm)
Applications : GPS
0
4202 in stock

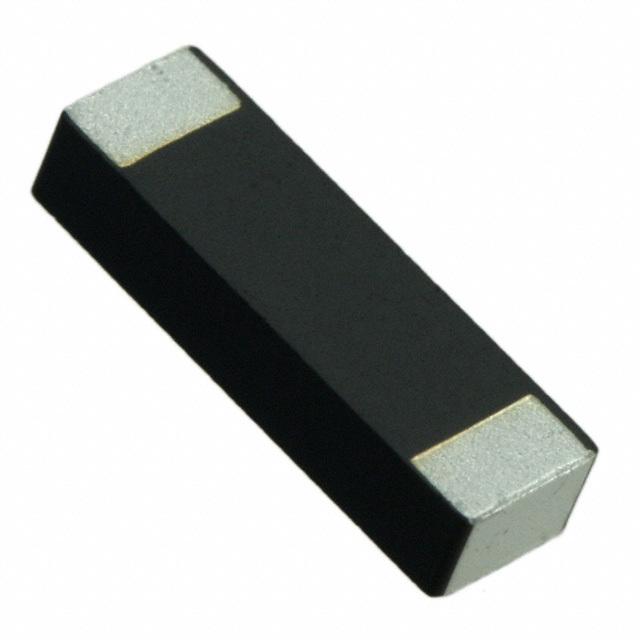

W3070
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 900MHz, 1.8GHz
Frequency Range : 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -3.8dB, -4dB
Gain : 1.5dBi, 1dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : GSM
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 900MHz, 1.8GHz
Frequency Range : 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -3.8dB, -4dB
Gain : 1.5dBi, 1dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : GSM
0
4652 in stock
W3073
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 859MHz, 1.8GHz, 1.9GHz, 2.05GHz
Frequency Range : 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 4
VSWR : -
Return Loss : -4.7dB, -3.5dB, -5.9dB, -3.3dB
Gain : 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM, PCS, WCDMA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 859MHz, 1.8GHz, 1.9GHz, 2.05GHz
Frequency Range : 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 4
VSWR : -
Return Loss : -4.7dB, -3.5dB, -5.9dB, -3.3dB
Gain : 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GSM, PCS, WCDMA
0
852 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
