Part Number
Manufacturer
Description
Unit Price
In Stock

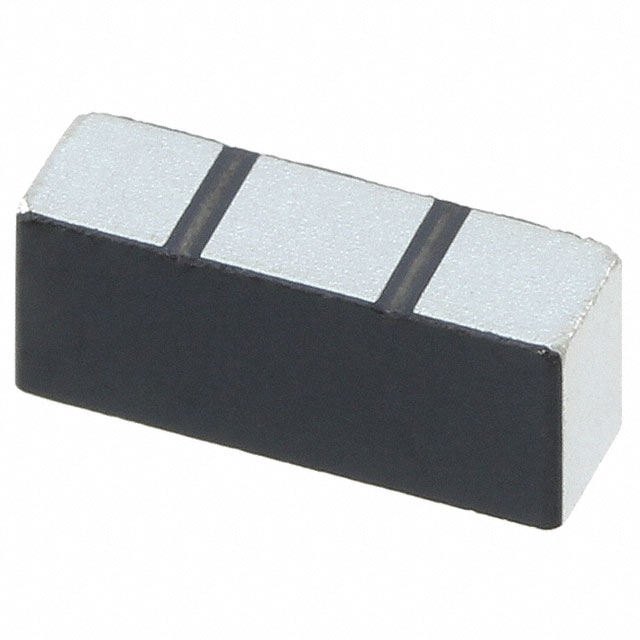

W3001
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -6dB
Gain : 1.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : Bluetooth, WLAN
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -6dB
Gain : 1.5dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : Bluetooth, WLAN
0
1460 in stock

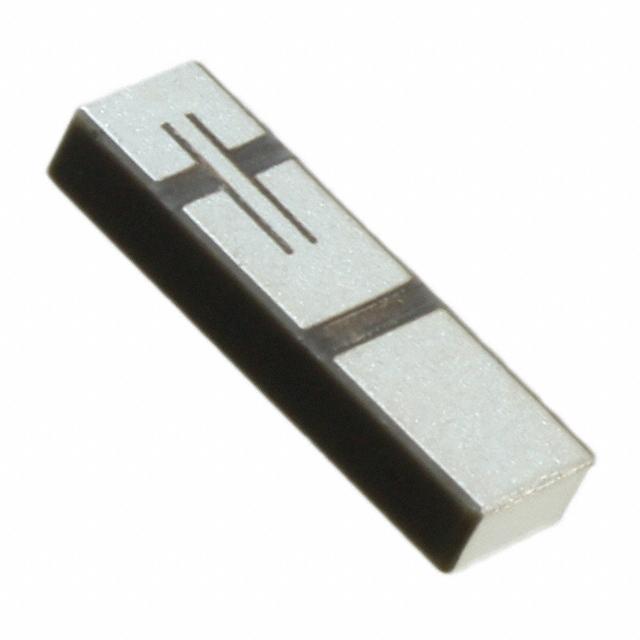

W3006
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.5GHz
Frequency Range : 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -8dB, -10dB
Gain : 3.2dBi, 4.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : WLAN, Zigbee™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) : 2.4GHz, 5.5GHz
Frequency Range : 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : -
Return Loss : -8dB, -10dB
Gain : 3.2dBi, 4.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.059" (1.50mm)
Applications : WLAN, Zigbee™
0
8302 in stock
W3008
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 1.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 1.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth
0
26140 in stock

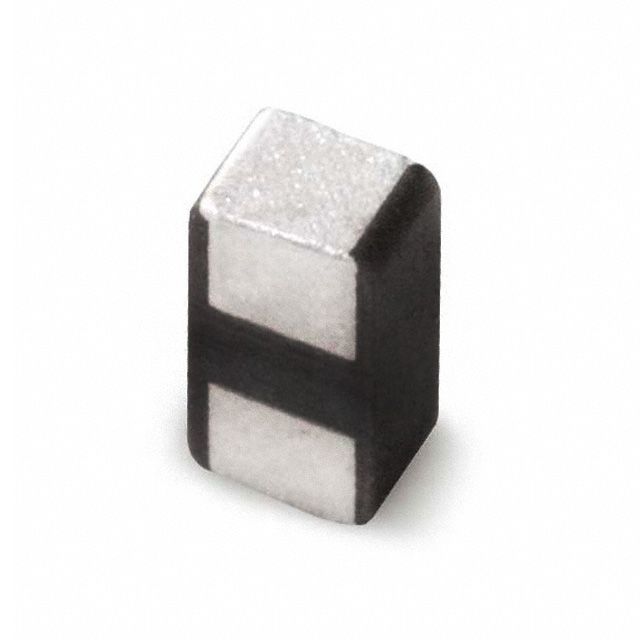

W3008C
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -11dB
Gain : 2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth, WLAN, Zigbee™
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -11dB
Gain : 2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth, WLAN, Zigbee™
0
11498 in stock

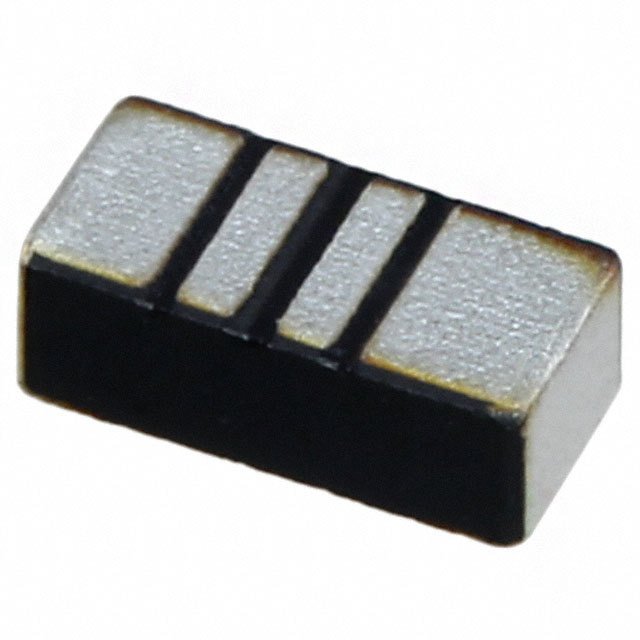

W3008G
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 1.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.483GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -8dB
Gain : 1.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : Bluetooth
0
389 in stock

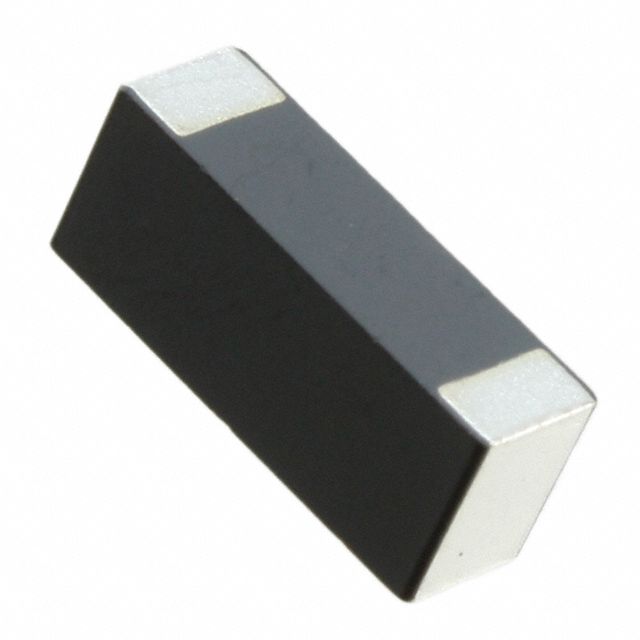

W3009
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GPS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.565GHz ~ 1.585GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 3dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GPS
0
1223 in stock

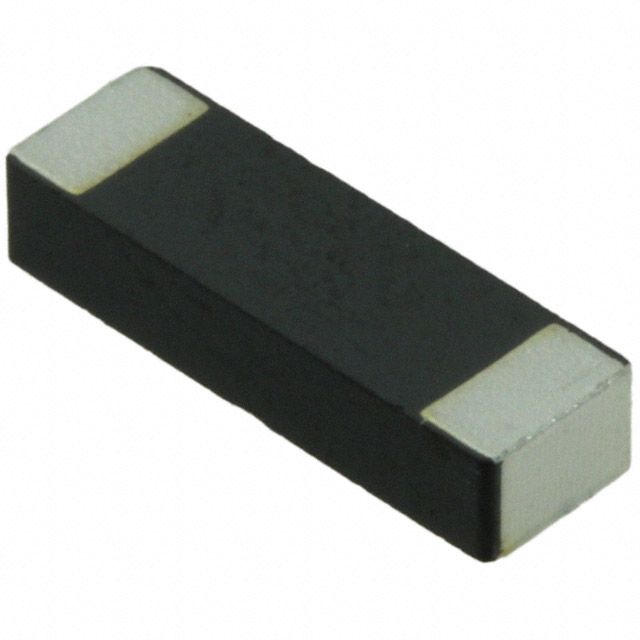

W3010
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -18dB
Gain : 2.8dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : GPS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -18dB
Gain : 2.8dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : GPS
0
4127 in stock
W3011
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -12dB
Gain : 3.4dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : GPS
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -12dB
Gain : 3.4dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : GPS
0
6080 in stock

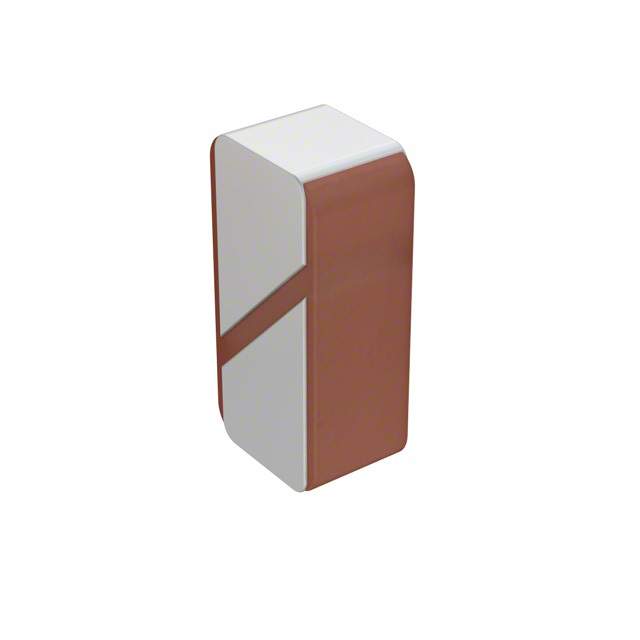

W3011A
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -16dB
Gain : 3.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : GPS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : -
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -16dB
Gain : 3.7dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.043" (1.10mm)
Applications : GPS
0
6221 in stock

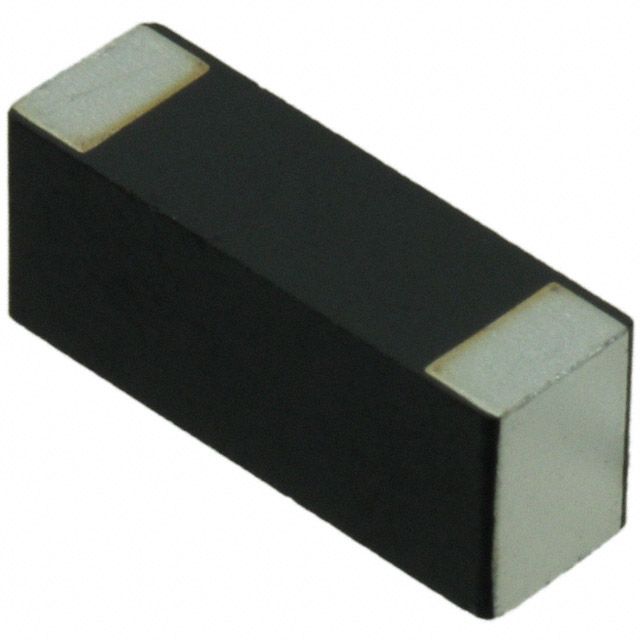

W3012
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -6dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 900MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -6dB
Gain : 2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
218 in stock

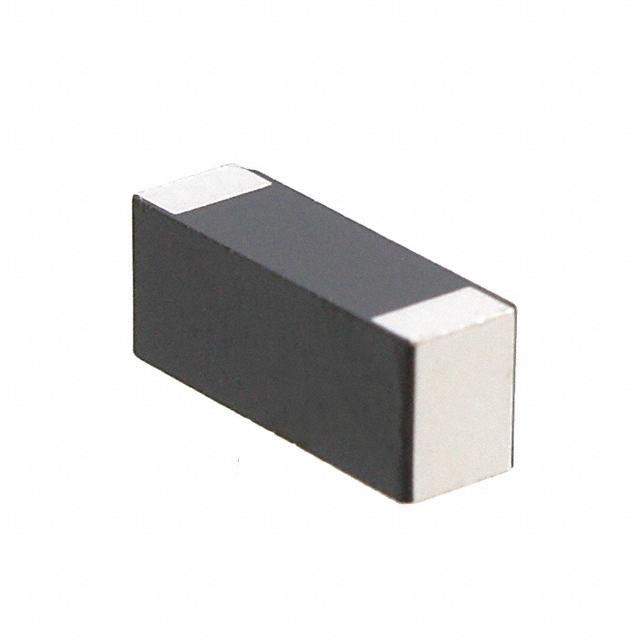

W3013
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 868MHz ~ 870MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 1.4dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 868MHz ~ 870MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 1.4dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
2577 in stock

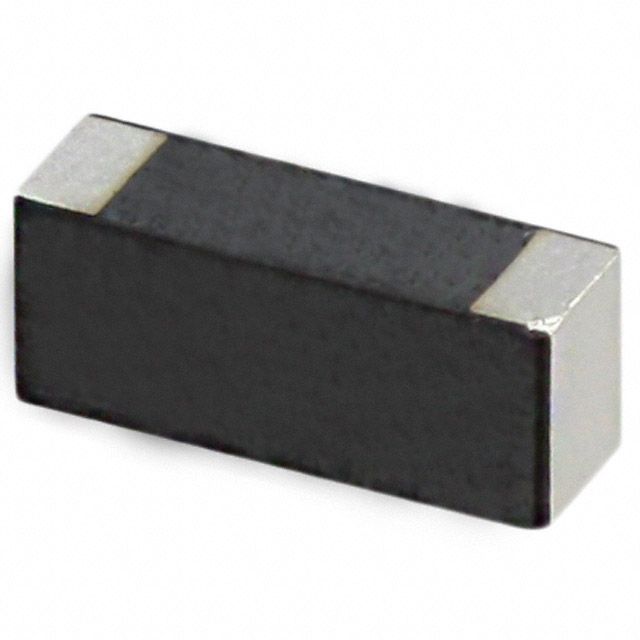

W3016
Pulse Electronics Corporation
Manufacturer : PulseLarsen Antennas
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 844MHz ~ 904MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -15dB
Gain : -2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 868MHz
Frequency Range : 844MHz ~ 904MHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -15dB
Gain : -2.2dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : -
0
5224 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
